AIJGO-61 - Resistance Meter

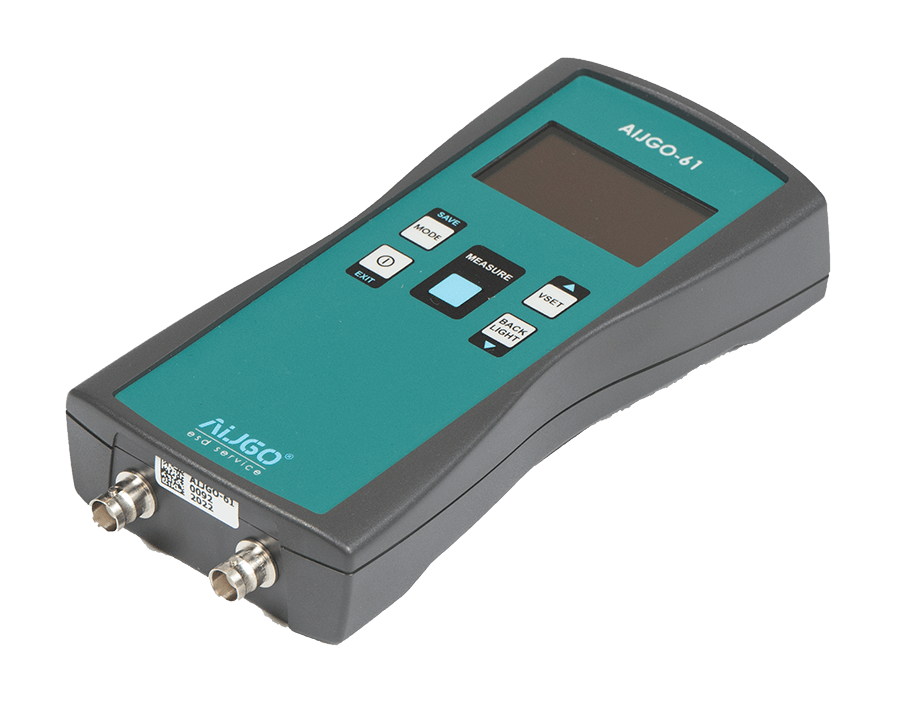

The AIJGO-61/AIJGO-61BT resistance meter can be used to measure the resistance of different materials, work surfaces and floors. The measured result can be viewed on an OLED display after the measurement.
- Compact
- It can be used to measure resistance in the range between 2 Ω and 1 TΩ
- It can be used to measure at test voltages of 10 V, 100 V, 500 V test voltage
CE declaration
We declare that the AIJGO-61/AIJGO-61BT product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).

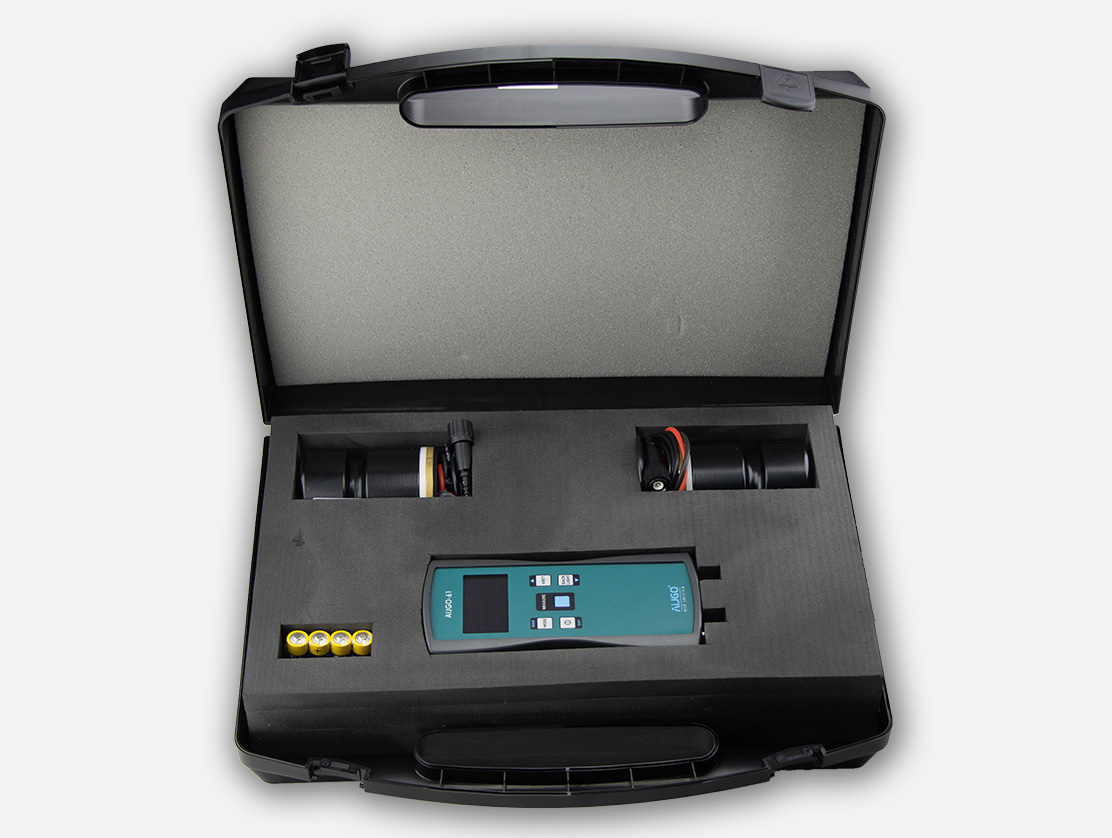

The product and accessories supplied with it

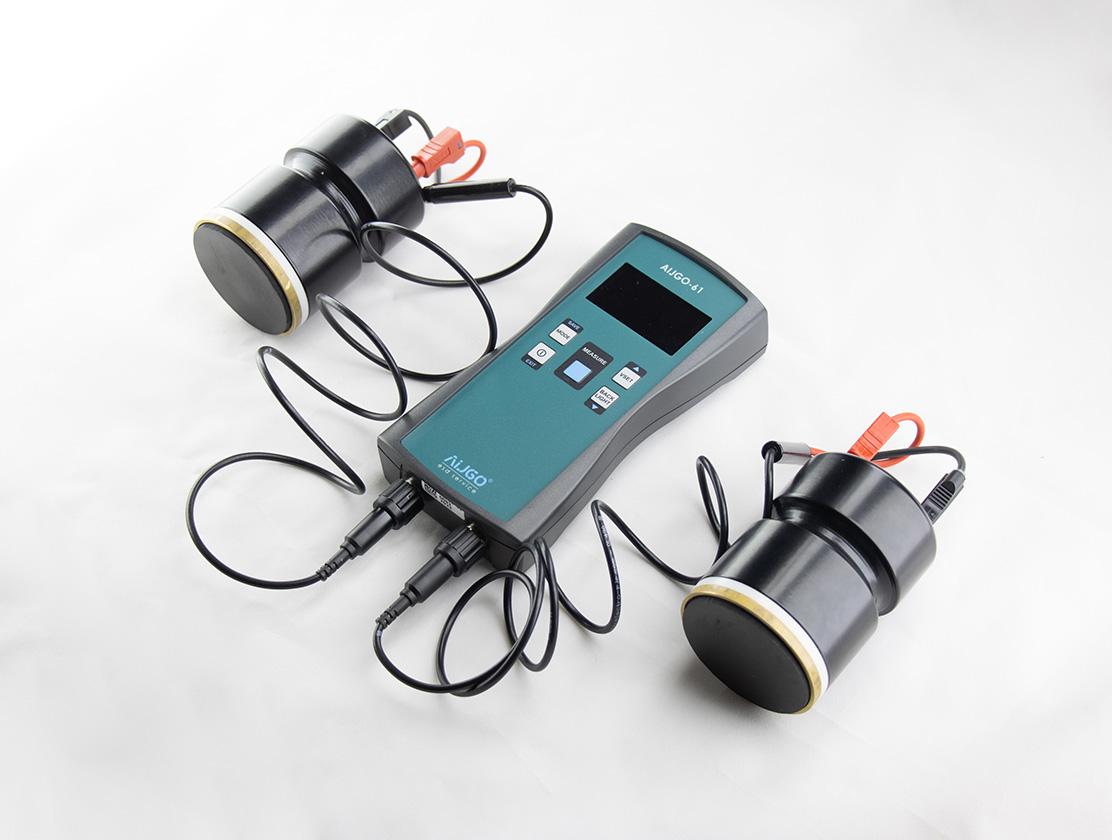

- AIJGO-61/AIJGO-61BT resistance meter
- Electrodes (2 pieces)

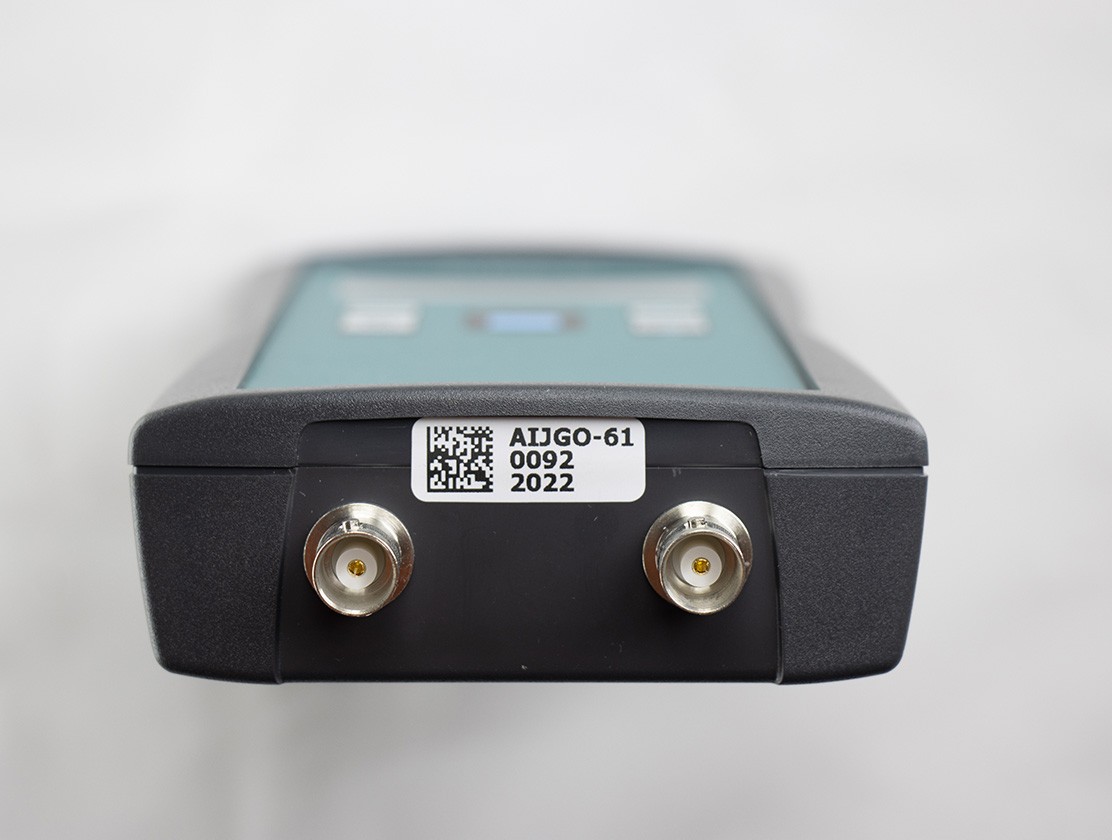

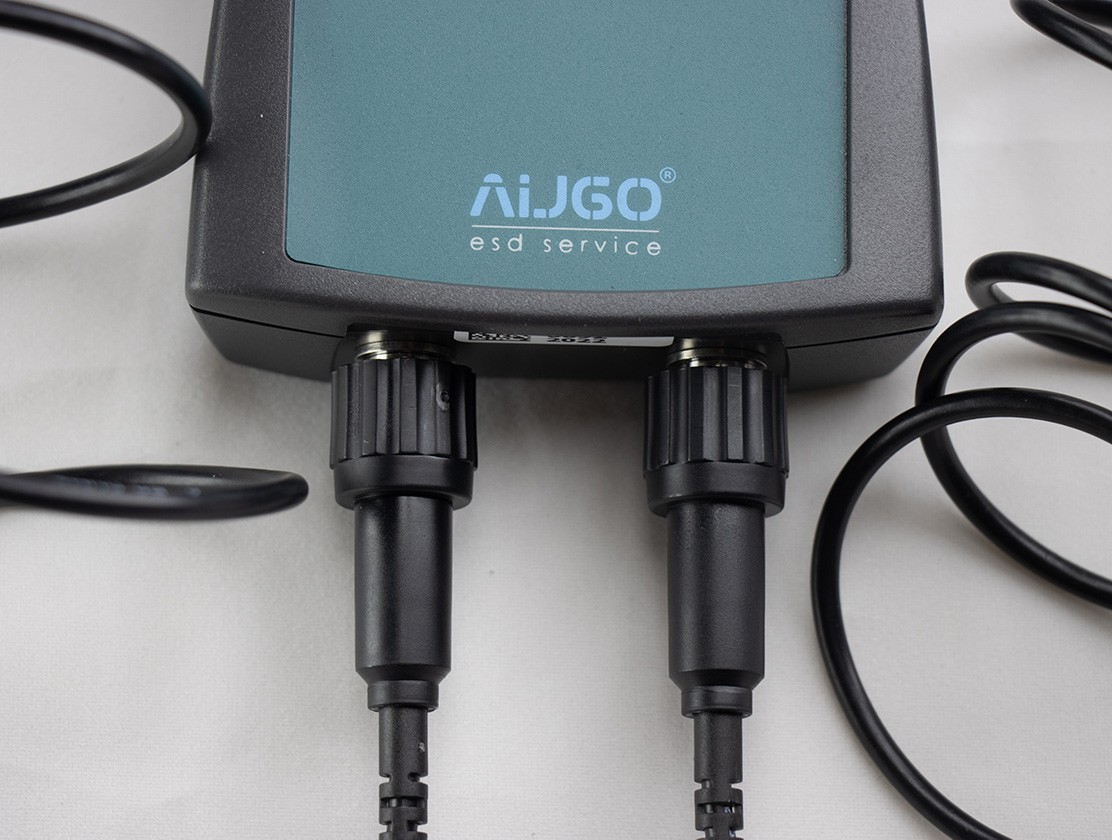

- Wires with banana plug and BNC plug ends (2 pieces)
- Crocodile clips (2 pieces)
- Mini USB data cable (with AIJGO-61, AIJGO-61BT is packed without it)
- Pendrive with software and usage guide in the case of AIJGO-61, with only the usage guide in the case of AIJGO-61BT
- AA batteries (4 pieces)
- Manufacturer’s certificate
| Sizes: | 93 x 185 x 35 mm (W x L x H) |
| Weight: | ca. 370 g |
| Test voltage: | 10 V, 100 V, 500 V (±5% ±2 V) |
| Resistance measuring range: | 2 Ω – 1 TΩ |
| Resistance measuring accuracy: | 2 Ω – 109 Ω: ±10%, 109 Ω – 1012 Ω ±20% |
| Temperature measuring range: | 0 °C – 45 °C |
| Temperature measuring accuracy: | ±0,3%, max. ±0,5% |
| Temperature measuring frequency: | ~ 2 s |
| Humidity measuring range: | 10 – 85% RH |
| Humidity measuring frequency: | ~ 2 s |
| Stored values: | Resistance, temperature, humidity |
| Number of measurement data rows that can be stored: | 20 pieces |
| Standard weight of electrodes: | 2,25 ±0,25 kg |
| PC connection: | Mini USB-B |
| Display: | Graphic 128 x 64 pixel |
| Power supply: | With 4 pieces of 1,5 V AA batteries or via USB cable |
| Operating time: | ca. 12-14 hours |
| Order code | Type | Place an order |
|---|---|---|
| AIJGO-61 | Resistance meter kit with mini USB-B connector device | {AIJGO-61} |
| AIJGO-61BT | Resistance meter kit with device capable of Bluetooth connection which can be used to transmit the measured data with the use of the ESD Wise application (device does not have a mini USB-B connector). | {AIJGO-61BT} |
