AIJGO-60 - Walking Tester

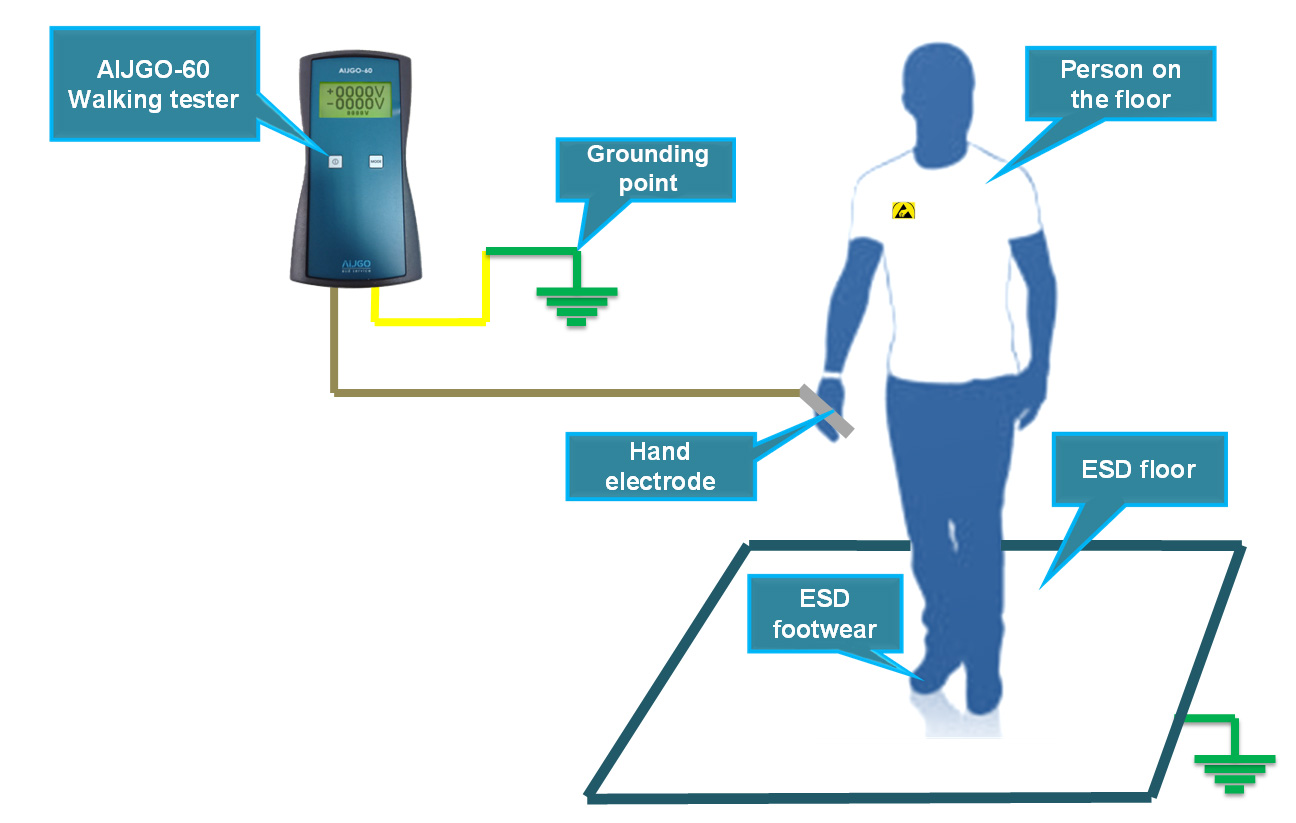

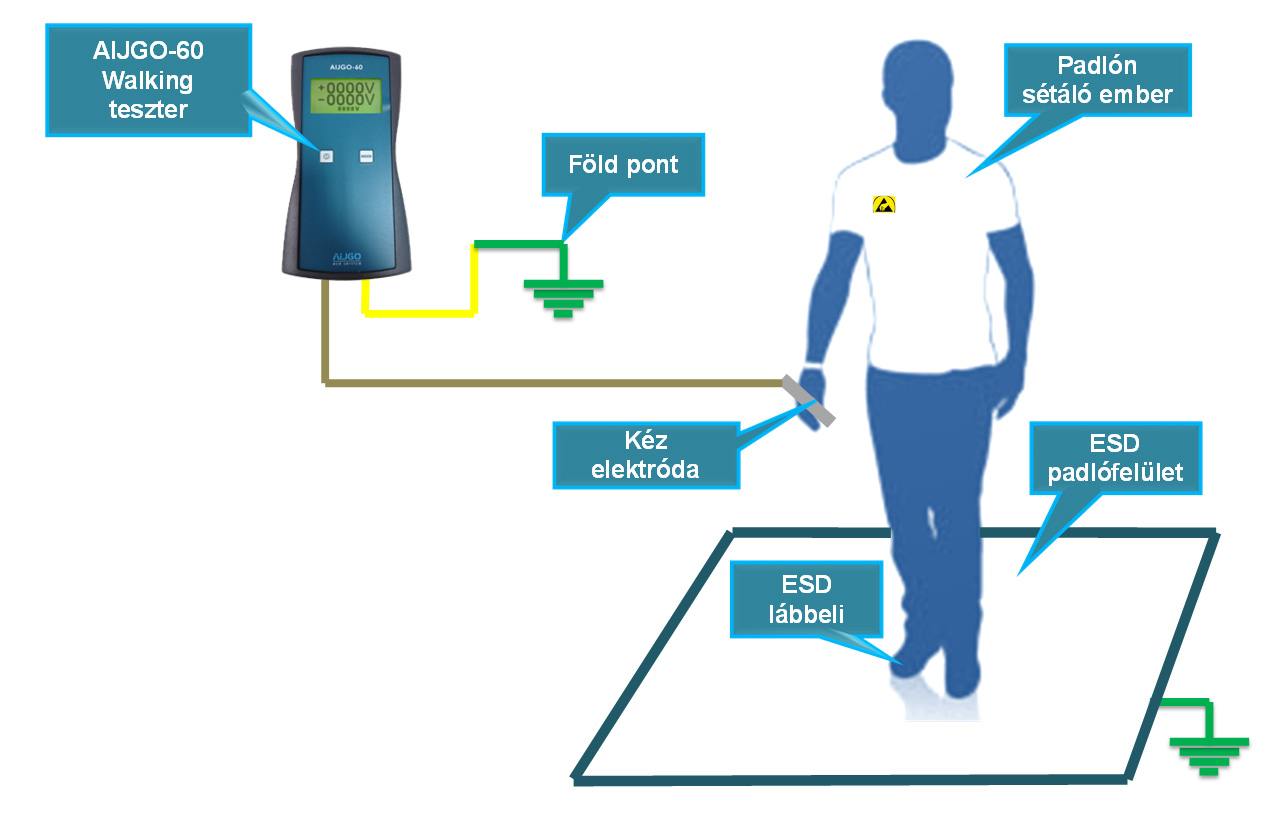

With an AIJGO-60 / AIJGO-60BT Walking tester you can measure the electrostatic charges which are generated on a person who walks on the floor. The device displays the measured values on an OLED display in numerical or graphical mode.
CE declaration
We declare that the AIJGO-60 / AIJGO-60BT product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).

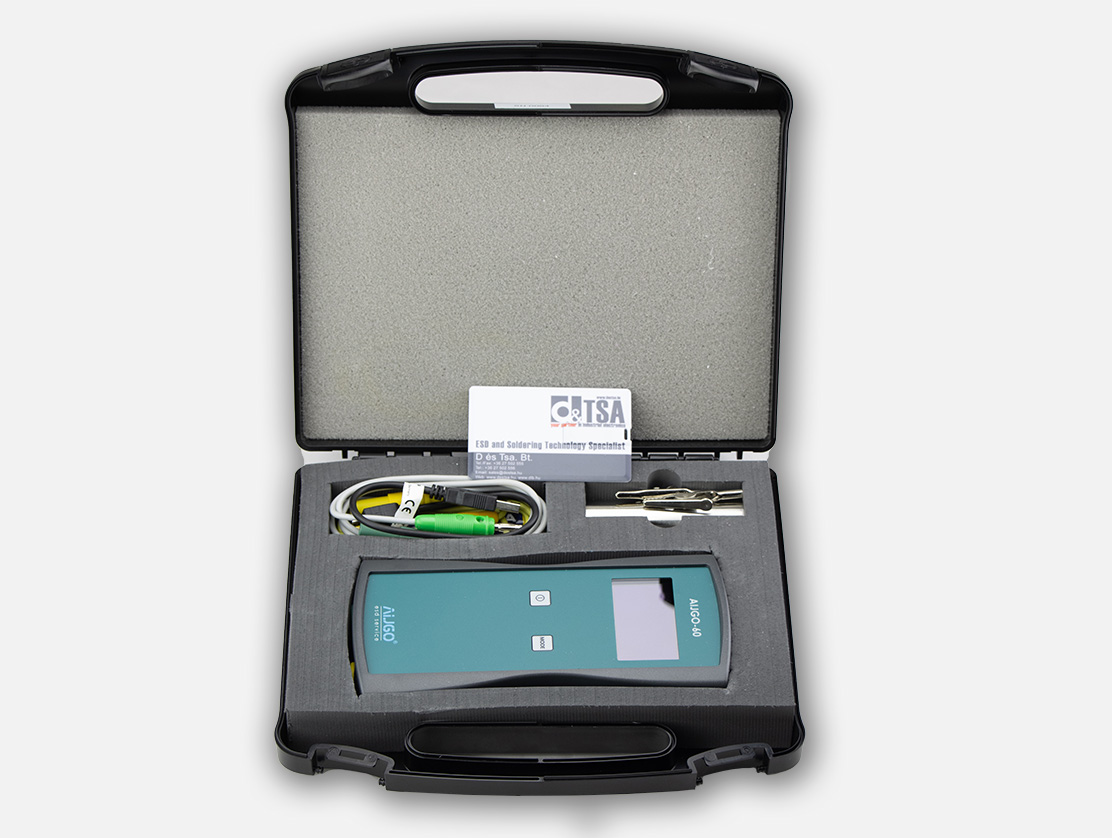

The product and its accessories

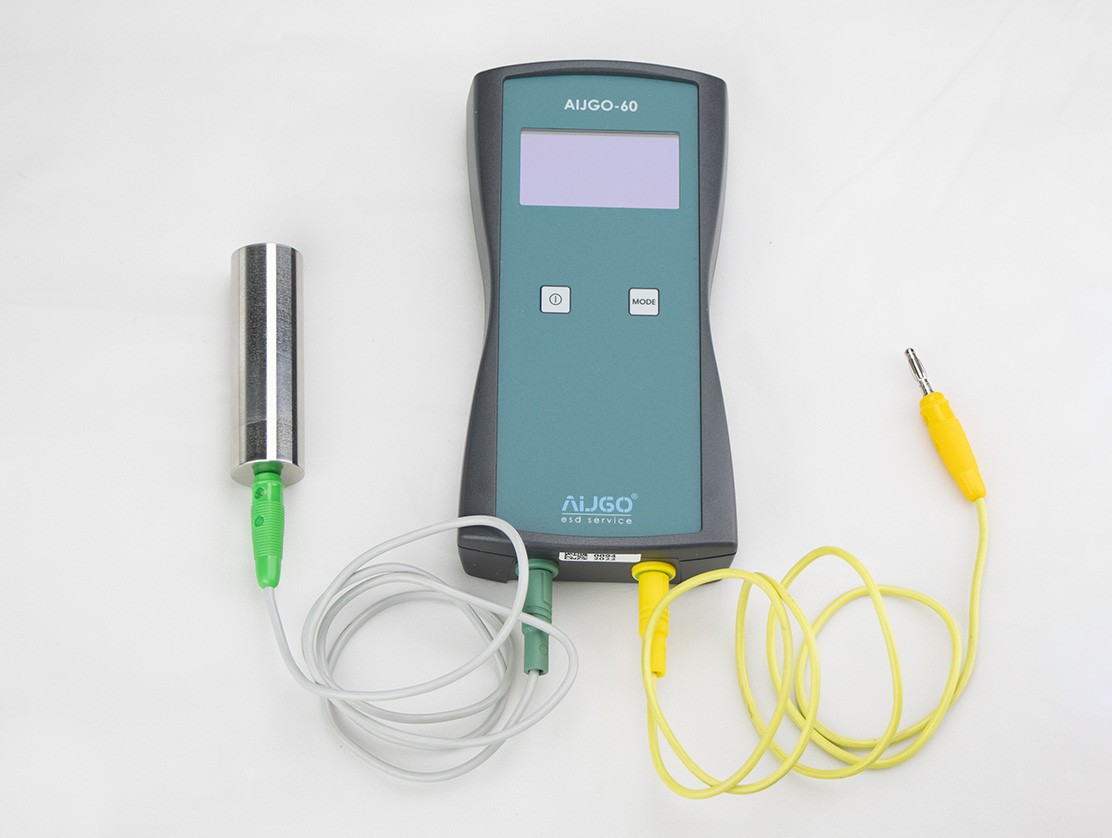

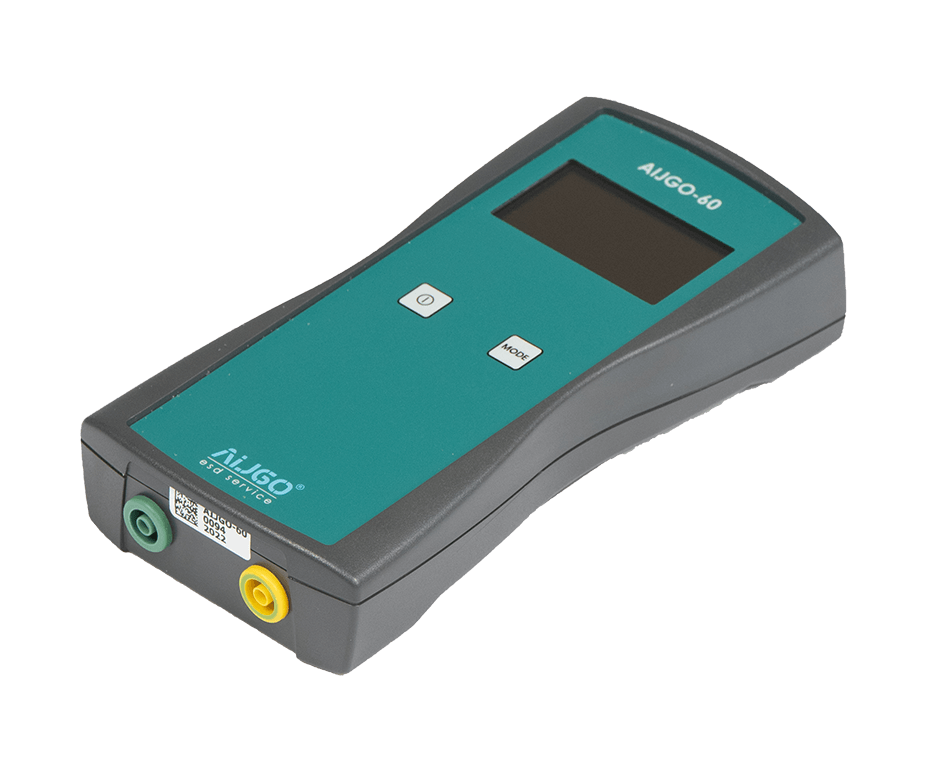

- AIJGO-60 / AIJGO-60BT Walking tester
- Hand electrode
- Hand electrode cable
- Grounding cable
- 2 pcs crocodile clips
- Mini USB data cable (with AIJGO-60, AIJGO-60BT is packed without it)
- Pendrive with software and usage guide in the case of AIJGO-60, with only the usage guide in the case of AIJGO-60BT
- 4 pcs AA batteries
- Manufacturer’s certificate
| Sizes: | 93 x 185 x 35 mm (W x L x H) |
| Weight: | ca. 350 g |
| Measuring range: | ±2 kV |
| Measuring accuracy: | <±2 kV >> max. 10%; ±2 kV - ±5 kV >> Indication |
| Temperature measuring range: | 0 °C – 45 °C |
| Temperature measuring accuracy: | ±0,3%, max. ±0,5% |
| Temperature measuring frequency: | ~ 2 s |
| Humidity measuring range: | 10 – 85% RH |
| Humidity measuring frequency: | ~ 2 s |
| Sample rate: | 250 µs |
| Data output: | Via mini USB-B connection |
| Display: | Graphic 128 x 64 pixel |
| Power supply: | With 4 pieces of 1,5 V batteries or via USB cable |
| Operating time: | ca. 12-14 hour |
| Order code | Type | Place an order |
|---|---|---|
| AIJGO-60 | Walking tester kit with mini USB-B connector device | {AIJGO-60} |
| AIJGO-60BT | Walking tester kit with device capable of Bluetooth connection which can be used to transmit the measured data with the use of the ESD Wise application (device does not have a mini USB-B connector). |
{AIJGO-60BT} |
