Wafer Tweezers 2/2
Especially designed for use with delicate (very fragile) wafer, glass wafer. Very firm yet anti-crush/anti-crack grip. Very smooth surface to satin finish (non glare).PTFE coating, plastic tips as well as special design to user's specifications are available.
| Wafer Size [inch] | Tip width [mm] | Model |
| 2” | 5 - 9,5 | 2W, 2WF, 2WFCPR, 2WFG, 39S2, 3WF, 3WFG, 637L, 637SB, 85C |
| 3” | 12 | 39FG, 4WF, 4WFCPR, 4WFG, 4WL, |
| 4” - 5” | 16 | 5WF |
| 6” | 20 - 28,5 | 48WF, 6WF, 8WF |
| 8” | 65 | 8WNY, 8WT |
| Tweezer | Type | Place an order |
|---|---|---|
 |

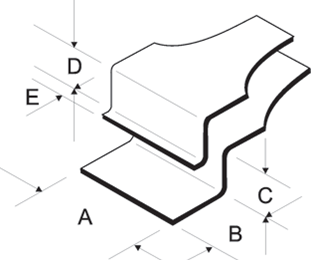

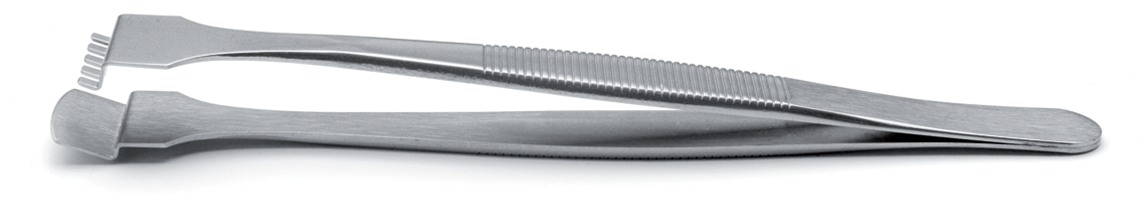

5WF.SA A 0.63'' 16.0mm - B 0.33'' 8.5mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{5WF.SA} |
 |

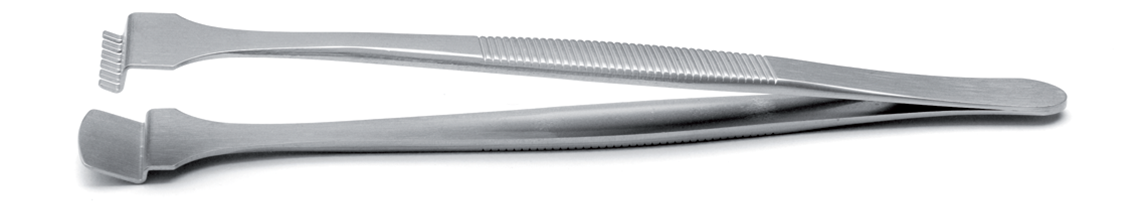

6WF.SA A 0.78'' 20.0mm - B 0.33'' 8.5mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{6WF.SA} |
 |

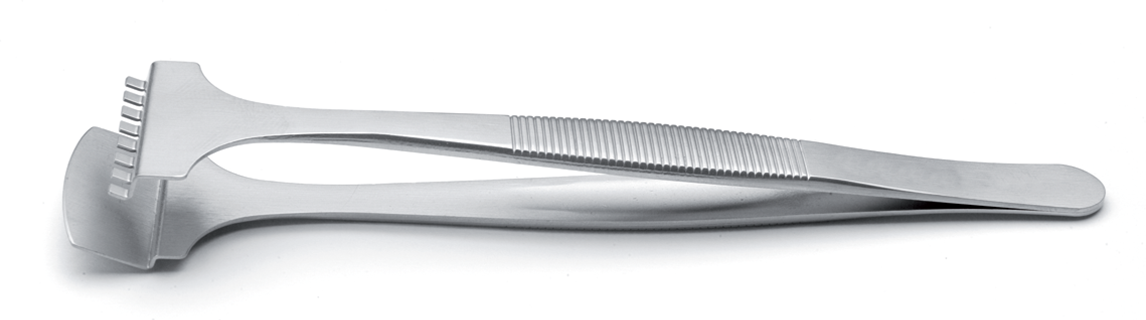

8WF.SA A 1.12'' 28.5mm - B 0.47'' 12.0mm - C 0.08'' 2.2mm D 0.14'' 3.5mm - E 0.10'' 2.5mm |
{8WF.SA} |
 |

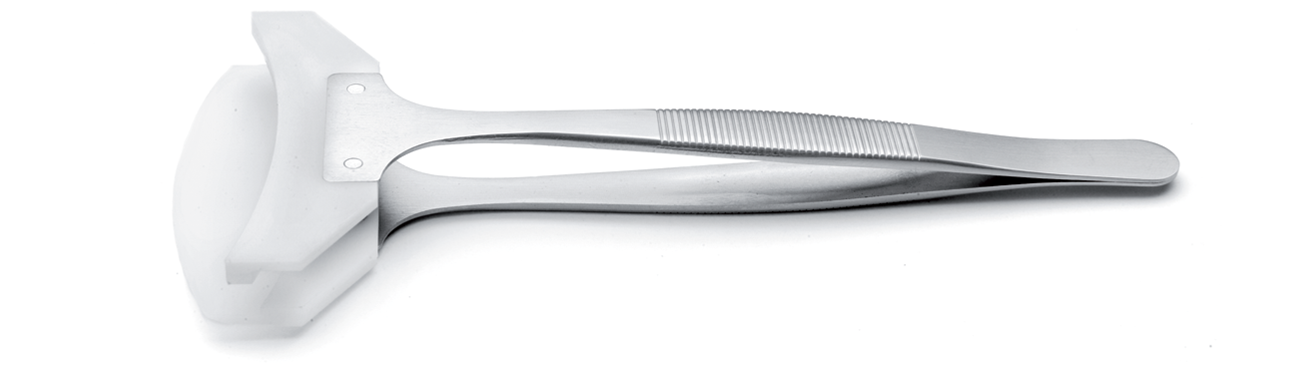

8WNY.SA, 8WT.SA A 1.55'' 65mm - B 0.75'' 19mm - C 0.05'' 1.3mm D 0.08'' 2mm, Nylon (NY) pads or PTFE (T) pads |
{8WNY.SA, 8WT.SA} |
 |

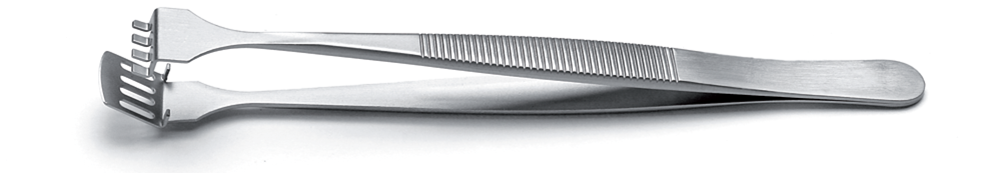

39FG.SA A 0.47'' 12.0mm - B 0.39'' 10.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{39FG.SA} |
 |

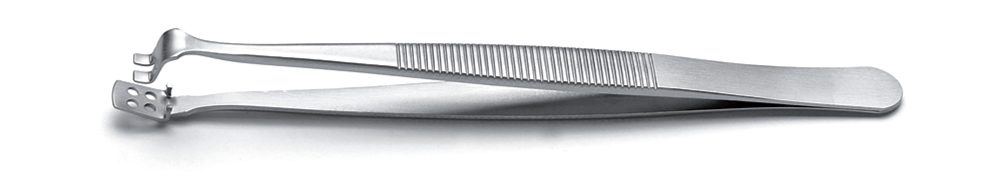

39S2.SA A 0.25'' 6.5mm - B 0.33'' 8.5mm D 0.20'' 5.5mm - E 0.09'' 2.4mm |
{39S2.SA} |
 |
48WF.SA A 1.1'' 28.0mm - B 0.35'' 9.0mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{48WF.SA} |
 |

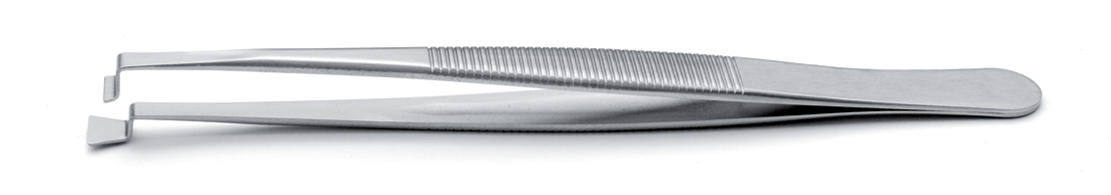

85C.SA A 0.27'' 7.0mm - B 0.17'' 4.5mm - C 0.12'' 3.0mm D 0.15'' 4.0mm - E 0.08'' 2.0mm |
{85C.SA} |
 |

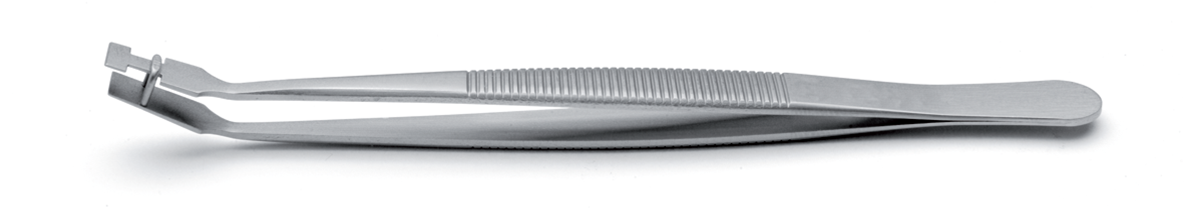

637L.SA A 0.23'' 6.0mm - B 0.15'' 4.0mm - E 0.15'' 4.0mm |
{637L.SA} |
 |

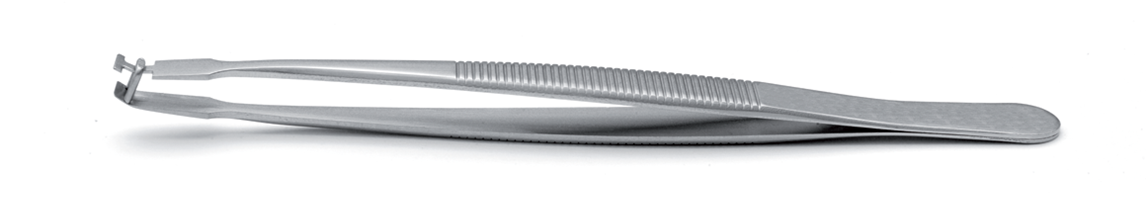

637SB.SA A 0.20'' 5.0mm - B 0.05'' 1.3mm - E 0.05'' 1.3mm |
{637SB.SA} |
