Wafer Tweezers 2/1
Especially designed for use with delicate (very fragile) wafer, glass wafer. Very firm yet anti-crush/anti-crack grip. Very smooth surface to satin finish (non glare).PTFE coating, plastic tips as well as special design to user's specifications are available.
| Wafer Size [inch] | Tip width [mm] | Model |
| 2” | 5 - 9,5 | 2W, 2WF, 2WFCPR, 2WFG, 39S2, 3WF, 3WFG, 637L, 637SB, 85C |
| 3” | 12 | 39FG, 4WF, 4WFCPR, 4WFG, 4WL, |
| 4” - 5” | 16 | 5WF |
| 6” | 20 - 28,5 | 48WF, 6WF, 8WF |
| 8” | 65 | 8WNY, 8WT |
| Tweezer | Type | Place an order |
|---|---|---|
 |

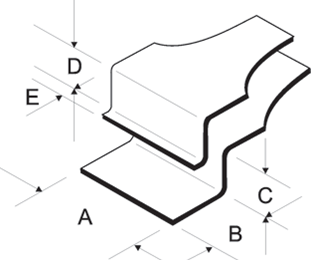

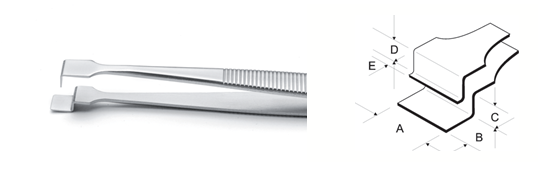

2W.SA A 0.25'' 6.5mm - B 0.2'' 5.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm |
{2W.SA} |
 |

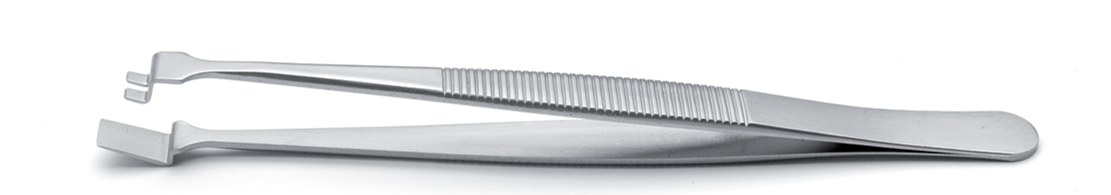

2WF.SA A 0.25'' 6.5mm - B 0.25'' 9.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{2WF.SA} |
 |

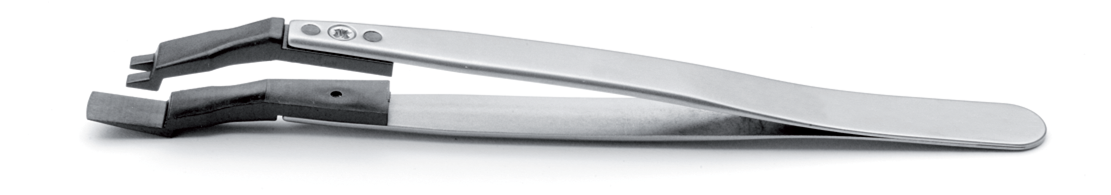

2WFCPR.SA A 0.25'' 6.6mm - B 0.41'' 10.5mm - C 0.08'' 2.0mm D 0.14'' 3.5mm - E 0.18'' 4.5mm Replaceable tips set code: A2WFCP |
{2WFCPR.SA} |
 |

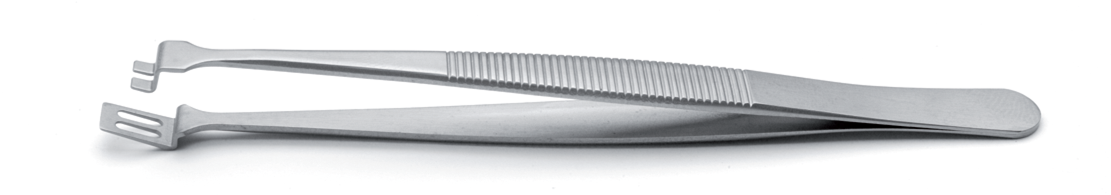

2WFG.SA A 0.25'' 6.5mm - B 0.35'' 9.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{2WFG.SA} |
 |

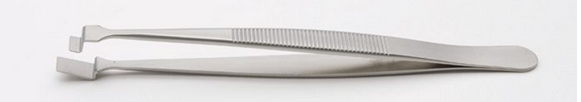

2WL.SA A 0.25'' 6.5mm - B 0.35'' 9.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{2WL.SA} |
 |

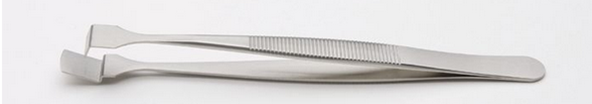

3.W.SA A 0.37'' 9.5mm - B 0.39'' 10.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm |
{3.W.SA} |
 |

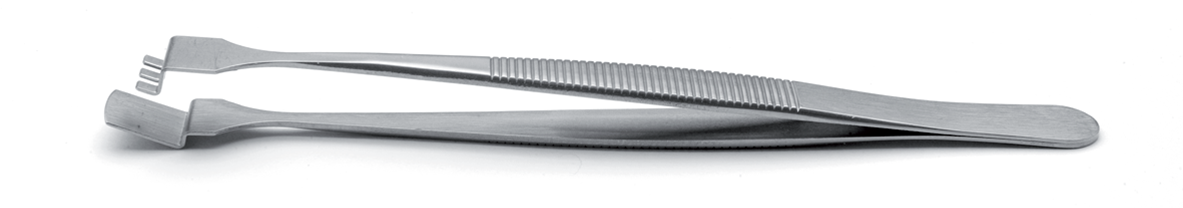

3WF.SA A 0.37'' 9.5mm - B 0.39'' 10.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{3WF.SA} |
 |

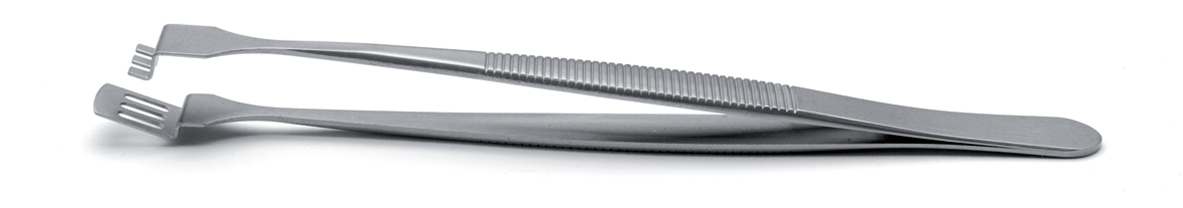

3WFG.SA A 0.37'' 9.5mm - B 0.39'' 10.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.10'' 2.5mm |
{3WFG.SA} |
 |

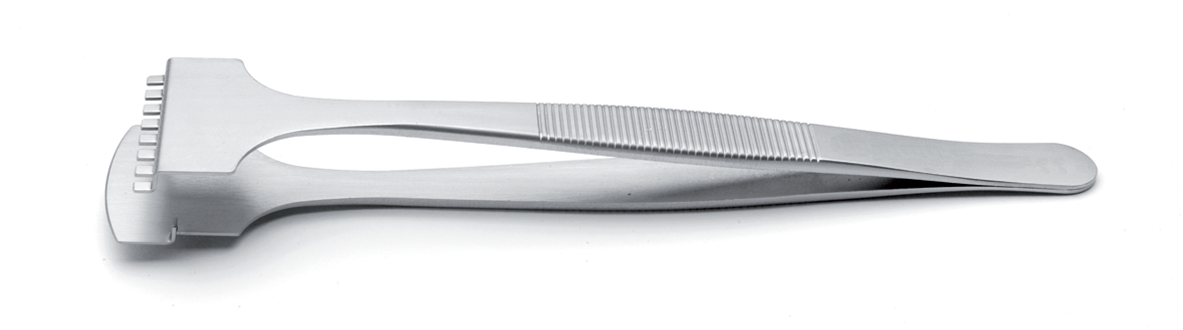

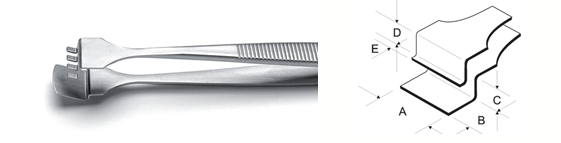

4WF.SA A 0.47'' 12.0mm - B 0.33'' 9.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.1'' 2.5mm |
{4WF.SA} |
 |

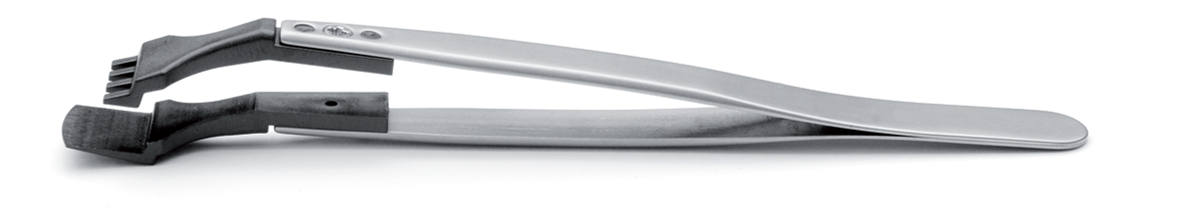

4WFCPR.SA A 0.47'' 12mm - B 0.41'' 10.5mm - C 0.08'' 2.0mm D 0.14'' 3.5mm - E 0.18'' 4.5mm Replaceable tips set code: A4WFCP |
{4WFCPR.SA} |
 |

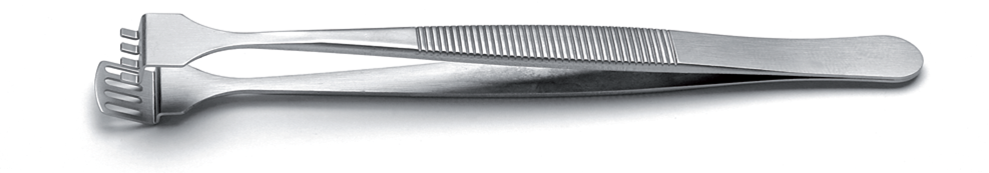

4WFG.SA A 0.47'' 12.0mm - B 0.35'' 9.0mm - C 0.10'' 2.5mm D 0.15'' 4.0mm - E 0.1'' 2.5mm |
{4WFG.SA} |
 |

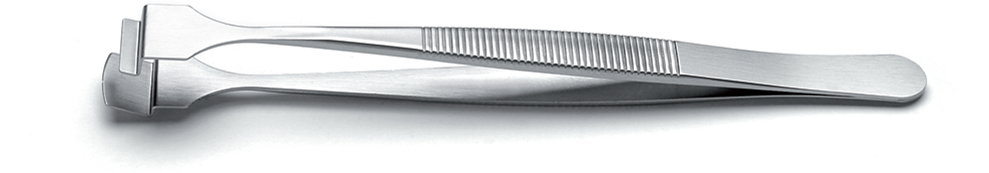

4WL.SA A 0.47'' 12.0mm - B 0.29'' 7.5mm - C 0.12'' 3.0mm D 0.15'' 4.0mm - E 0.1'' 2.5mm |
{4WL.SA} |
