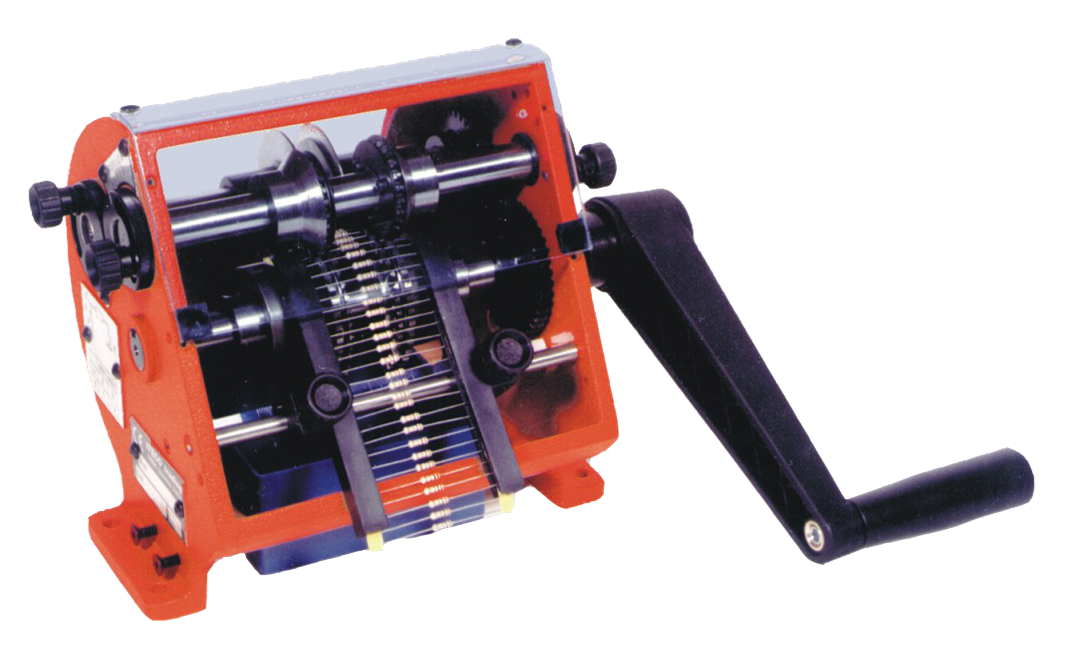

SUPERFORM/AP
SUPERFORM/AP is a machine made for cutting and bending axial taped components for vertical assembling, and shaping a little curl on each lead. The machine handles wire diameters ranging from 1 mm to 1.4mm. By replacing the 2 .cutting/forming wheels. with 2 .only cutting wheels. (optional) it is possible to obtain an U-shape without curls.
| Specifications | |
|---|---|
| Production rate | up to 20000 pcs/hr |

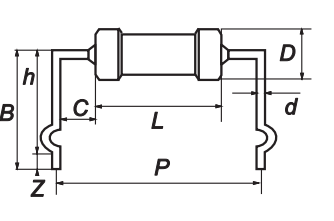

| P | B | C | L | d | D | h | Z | ||||||
| min | max | min | max | min | max | max | min | max | max | min |
max |
fix |
|
| 7915.102A standard model z=3.1 | 6.5 | 60 | 10 | 14 | 1.2 | 10 | 50 | 1 | 1.3 | 16 | 7 | 11 | 3.1 |
| 7915.102B z=3.1 reinforced bending knives | 10.2 | 60 | 2.4 | 1.4 | 3.1 | ||||||||
| 7915.102C standard model z=3.9 | 6.5 | 60 | 1.2 | 1.3 | 3.9 | ||||||||
| 7915.102D z=3.9 reinforced bending knives | 10.2 | 60 | 2.4 | 1.4 | 3.9 | ||||||||
| 7915.102E standard model z=5 | 6.5 | 60 | 1.2 | 1.3 | 5 | ||||||||
| 7915.102F z=5 reinforced bending knives | 10.2 | 60 | 2.4 | 1.4 | 5 | ||||||||
| Order code | Type | Place an order |
|---|---|---|
| 7915.030 | Motor unit for SUPERFORM, 230V - 50/60Hz | {7915.030} |
| 7915.180 | CS10 feeder for loose axial components | {7915.180} |
| 7915.185 | Tape reel holder arm BR6 | {7915.185} |
