SUPERFORM/A

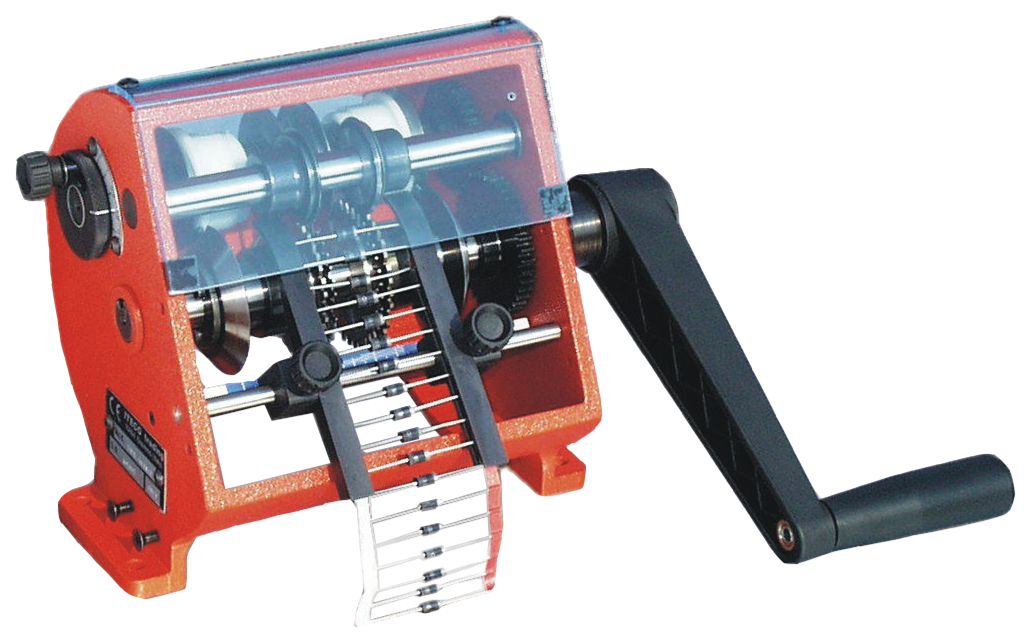

SUPERFORM/A is a machine made for cutting and bending axial taped components, it is extremely compact and sturdy and its main characteristic is to form components with rheophore up to 1.4 mm. Its tracking wheels are adjustable independently to allow rapid setup at different forms.
| Specifications | |
|---|---|
| Production rate | up to 40000 pcs/hr |
Code |
B | P | C | D | d | L | ||||
| min | max | min | max | max | max | min | max | max | ||
| 7915.100A standard model | 4 | 13 | 6.5 | 60 (40°) | 1.2 | 16 | 0.4 | 1.3 | 50 | 7915.100AR quick setting |
| 7915.100D reinforced bending knives | 5 | 13 | 10.5 | 60 (40°) | 2.4 | 16 | 0.6 | 1.4 | 50 | 7915.100DR quick setting |
| 7915.100F reduced cutting length reduced bending length | 4 | 13 | 5 | 60 (40°) | 0.8 | 10 | 0.4 | 0.8 | 50 | 7915.100FR quick setting |
| 7915.100G like"F" + fixed pitch | 4 | 13 | 5 | - | 0.5 | 4 | 0.4 | 0.6 | 3.5 | - |
| Order code | Type | Place an order |
|---|---|---|
| 7915.030 | Motor unit for SUPERFORM, 230V - 50/60Hz | {7915.030} |
| 7915.180 | CS10 feeder for loose axial components | {7915.180} |
| 7915.185 | Tape reel holder arm BR6 | {7915.185} |
