Special cutters

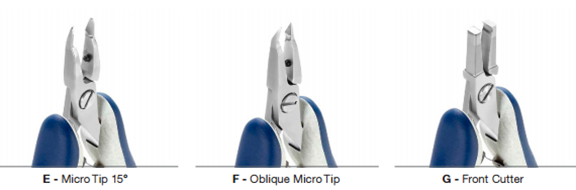

- E. - F. Long, narrow jaws. Sharp edges for cutting at the very tip. Deep relief for an exceptionally low profile. G. Tip cutters for vertical tip cutting.
| Order code |
Type | A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Cutting Edges |
| E5233 | Micro Tip 15 | 135 | 20 | 10 | 6,4 | - | - | Full- Flush |
| E5234 | 3Oblique Micro Tip | 135 | 20 | 10 | 6,4 | 0,5 | - | Full- Flush |
| E5247 | Front cutter | 135 | 18 | 10 | 6,4 | 4,2 | - | Flush |
| CUTTING CAPACITY | |||||||
| Order code |
Soft (mm) |
Soft (AGW) |
Medium (mm) |
Medium (AGW) | Hard (mm) |
Hard (mm) (AGW) |
Place an order |
| E5233 | 0.1-0.8 | 38-20 | 0.1-0.6 | 38-23 | - | - | {E5233} |
| E5234 | 0.1-0.8 | 38-23 | 0.1-0.6 | 38-23 | - | - | {E5234} |
| E5247 | 0.1-1.2 | 38-20 | 0.1-0.8 | 38-20 | - | - | {E5247} |
