SMT Hot Air Tool Tip Set ups

INTERNAL THREADED HEATER HOT AIR TOOLS AND STATIONS
Part No.
 Description
971DH-230 SMT Hot Air Station

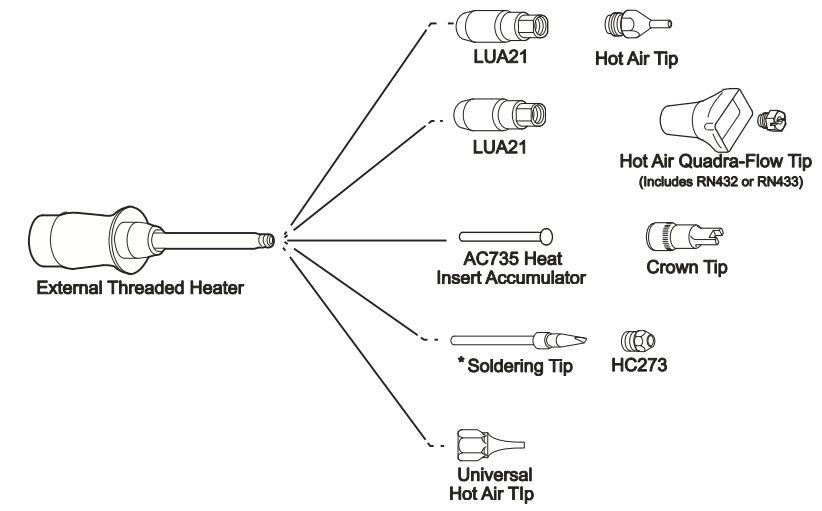

Szereles

INTERNAL THREADED HEATER HOT AIR TOOLS AND STATIONS
Part No.
 Description
1036DX/B-230 Self-Contained SMT Deluxe Hot Air Station

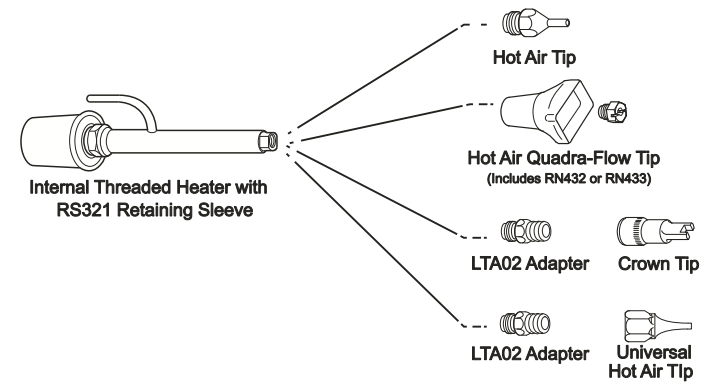

Szereles



SINGLE NOZZLE TIPS meretek
Order code Tip Image Hole Dia. A Length B Place an order
LT427 LT427 .02" (0.5mm) .38" (95mm) {LT427}
LT428 LT428 .06" (1.5mm) .25" (6.4mm) {LT428}
LT432 LT432 .04" (1.0mm) .06" (1.5mm) {LT432}
LT514 LT514 .10" (2.5mm) .25" (6.4mm) {LT514}



FAN TIPS meretek
Order code Tip Image Gap Width W Length B Place an order
LT426 LT426 .02" (0.5mm) .30" (7.6mm) .17" (4.3mm) {LT426}
LT434 LT434 .02" (0.5mm) .46" (11.7mm) .23" (5.8mm) {LT434}
LT435 LT435 .02" (0.5mm) .59" (15.0mm) .35" (8.9mm) {LT435}
LT436 LT395 .02" (0.5mm) .65" (16.5mm) .43" (10.9mm) {LT436}



DUAL FLOW TIPS meretek
Order code Tip Image Hole Dia. A Width W Length B Place an order
LT526 LT526 .03" (0.8mm) .12" (3.0mm) .30" (7.6mm) {LT526}
LT534 LT534 .05" (1.3mm) .20" (5.1mm) .46" (11.7mm) {LT534}
LT535 LT535 .05" (1.3mm) .28" (7.1mm) .59" (15.0mm) {LT535}
LT536 LT536 .05" (1.3mm) .35" (8.9.mm) .65" (16.5mm) {LT536}
LT537 LT537 .05" (1.3mm) .44" (11.2mm) .80" (20.4mm) {LT537}



CURL/BENT TIPS
Order code Tip Image Hole Dia. A Nozzle Length Place an order
LT510 LT510 .02" (0.5mm) .65" (16.5mm) {LT510}
LT511 LT511 .06" (1.5mm) .65" (16.5mm) {LT511}
LT512 LT512 .07" (1.8mm) .90" (22.9mm) {LT512}
LT513 LT513 .10" (2.5mm) .90" (22.9mm) {LT513}
LT571 LT571 .04" (1.0mm) 1.10" (27.9mm) {LT571}
LT572 LT572 .04" (1.0mm) MAX. GAP WIDTH 1.25" (31.8mm) {LT572}



UNIVERSAL HOT AIR TIPS meretek
Order code Tip Image Hole Dia. A Length B Place an order
LU25 LU25 .03" (6.4mm) .25" (6.4mm) {LU25}
LU26 LU26 .04" (6.4mm) .25" (6.4mm) {LU26}
LU27 LU27 .06" (6.4mm) .25" (6.4mm) {LU27}
LU28 LU28 .09" (6.4mm) .25" (6.4mm) {LU28}
LU29 LU29 .05" (7.5mm) .29" (7.5mm) {LU29}
LU30 LU30 .05" (17.8mm) .70" (17.8mm) {LU30}
LU571  LU571 .04" (27.9mm) 1.10" (27.9mm) {LU571}
LU572  LU572 .04" (1.0mm) MAX. GAP WIDTH 1.25" (31.8mm) {LU572}



SMD QUADRA FLOW HOT AIR TIPS meretek
Order code Package Tip Image Hole Dia. A Length B Place an order
LT447 SO-8 LT447 .16" (4.0mm) .20" (5.1mm) {LT447}
LT448 SO-14 .21" (5.3mm) .35" (8.9mm) {LT448}
LT449 SO-16 .26" (6.6mm) .41" (10.4mm) {LT449}
LT450 SO-16L LT450 .42" (10.7mm) .43" (10.9mm) {LT450}
LT451 SO-18L .44" (11.2mm) .48" (12.2mm) {LT451}
LT452 SO-20L LT452 .38" (9.5.mm) .52" (13.2mm) {LT452}
LT454 SO-28L .43" (10.9mm) .73" (18.6mm) {LT454}
LT455 PLCC-20  LT455 .40" (10.2mm) .40" (10.2mm) {LT455}
LT456 PLCC-28 .50" (12.7mm) .50" (12.7mm) {LT456}
LT458 PLCC-44
LCCC-44		 LT458 .70" (17.8mm) .70" (17.8mm) {LT458}



SMD QUADRA FLOW HOT AIR TIPS
Order code Package Tip Image Hole Dia. A Length B Place an order
LT459 PLCC-52 LT459 .80" (20.3mm) .80" (20.3mm) {LT459}
  QFP-100
LT459-1   LT459-1 .80" (20.3mm) .80" (20.3mm) {LT459-1}
LT460 PLCC-68 LT460 1.0" (25.4mm) 1.0" (25.4mm) {LT460}
LT462 PLCC-18 LT462 .34" (8.6mm) .55" (14.0mm) {LT462}
LT463 QFP-44 LT463 .60" (15.2mm) .60" (15.2mm) {LT463}
LT468 QFP-100 LT468 .66" (16.8mm) .90" (22.9mm) {LT468}
LT477 - LT477 .75" (19mm) 1.0" (25.4mm) {LT477}
LT478 LCCC-18R LT478 .32" (8.1mm) .45" (11.4mm) {LT478}
LT482 LCCC-32R .47" (11.9mm) .58" (14.7mm) {LT482}
LT484 SOJ-20 LT482 .40" (10.2mm) .79" (20.1mm) {LT484}
LT485 - LT485 .52" (13.2mm) .64" (16.3mm) {LT485}
LT486 PLCC-28R .40" (10.2mm) .60" (15.2mm) {LT486}
LT488 LCCC-84
QFP-144		 LT488 1.17" (29.7mm) 1.17" (29.7mm) {LT488}
LT493 SOJ-32 LT493 .48" (12.2mm) .85" (21.6mm) {LT493}
LT494 SOJ-40 .45" (11.4mm) 1.05" (26.7mm) {LT494}
LT1629 SOP-44 LT1629 .63" (16.0mm) 1.14" (29.0mm) {LT1629}
LT1824 QFP-100 .70" (17.8mm) .94" (23.9mm) {LT1824}
LT2228 - .85" (21.6mm) 1.1" (27.9mm) {LT2228}
