PROSTAT PWS-610M Fabric Band Wrist Strap

Designed for durability, lightweight portability and comfort

Download datasheet

In conjunction with the best product designers in the ESD industry, Prostat has created new refinements in wrist strap technology. Prostat wrist straps are specially designed for durability, lightweight, portability and comfort.

These unique personnel and instrument grounding products are intended for use in demanding, high performance applications where reliability is the priority.

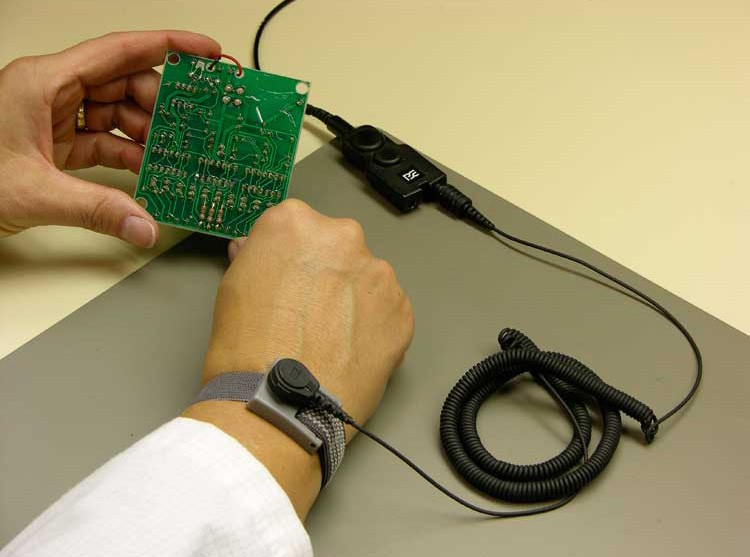

Compared to traditional wrist straps with fabric cuffs, the PWS-610M weighs 60 percent less (under 1 ounce) and uses 1/3 the working or storage space of a standard assembly. The PWS-610M features a comfrotable, adjustable band, a 12 ft. ground cord with a 4mm snap. The fabric band also has a 10mm male snap with a protective cap. The ground cord, which has a 1 megohm resistor built into it, exceeds 20,000 cycles of bending life test without any physical damage on the strain relief.

  • Comfortable & Operator Friendly
  • Includes a 12 foot cord with 1 Megohm Resistor
  • Adjustable buckle with a 4mm snap
  • Built-in 10mm male snap with cap
  • Uses 1/3 the working or storage space
  • Metal Alligator Clip included
  • One size fits all
  • Meets the requirements of ANSI/ESD S20.20 and ANSI/ESD S1.1
CUFF ASSEMBLY
BUCKLE  1.0W x 1.0L x 0.25H inches. Gray, Adjustable with positive lock, stainless steel back plate. Standard male 5/32" snap (0.154 inch, 4mm); provides 360o performance. Patented, Easily adjusted buckle incorporating a positive fabric lock to eliminate slip and enhance skin contact. Non-sensitizing stainless steel back plate.
FABRIC 0.85 inches wide. Grey, knit incorporating silver plated filament and elastic nylon. Insulative outer cuff surface, conductive inner cuff surface.
SIZE/LENGTH Nominal 6.5" After stretching to 2x length and relaxing.
ADJUSTABLE Easily adjustable to fit all personnel.
CONTROL Date coded and Prostat manufacturer's logo embossed on all cuff assemblies

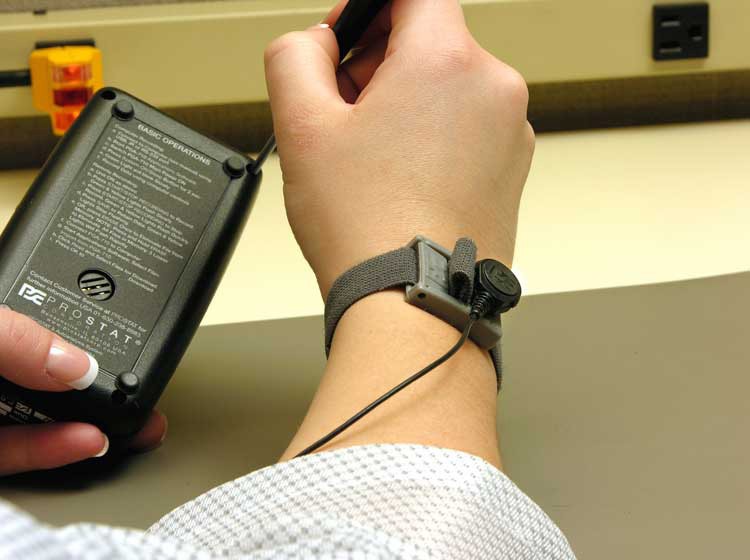

“M" SERIES CUFFS Incorporate a 10mm male snap and insulated snap cover installed in the fabric approximately 2 inches from the cuff buckle. The 10mm snap is used to mount and ground the PFM-711A Field Meter and CPM-720A Charge Plate Monitor.
PGC-610-PGC GROUND CORD ASSEMBLY
CORD  Heavy Duty, Lightweight construction of Single bundle. Cord Diameter: 2.5 mm
RESISTOR One megohm (±20%) resistor molded into snap connection
GROUND CONNECTION Standard banana plug, 4mm female snap
CORD EXTENSION Working Length: 12 feet.
BENDING LIFE TEST Exceeds 20,000 cycles of bending life test without any physical damage on the strain relief.
COLOR Black
WARNING: A one-megohm resistor has been molded into the plastic cap on the ground cord fastener. DO NOT REMOVE. If it becomes damaged, replace ground cord immediately. Do not use in areas where the individual may come in contact with electrical circuits exceeding 250 volts.
CAUTION: The Prostat wrist strap is for static control. It will not reduce or increase your risk of receiving electrical shock when using or working on electrical equipment. Follow the same procedures you would use without wrist straps, including:

* Make certain that equipment having a grounding type plug is properly grounded.

* Make certain that you are not in contact with grounded objects other than through the strap.



Order code Type Place an order
PWS-610M Fabric Band Wrist Strap {PWS-610M}
