PROSTAT PSK-310 ESD System Analysis Kit

The choice of advanced professionals includes computer download capabilities. Designed for ANSI/ESD S20.20 Program Applications

  • Full ESD Auditing Capabilities
  • Evaluate packaging materials

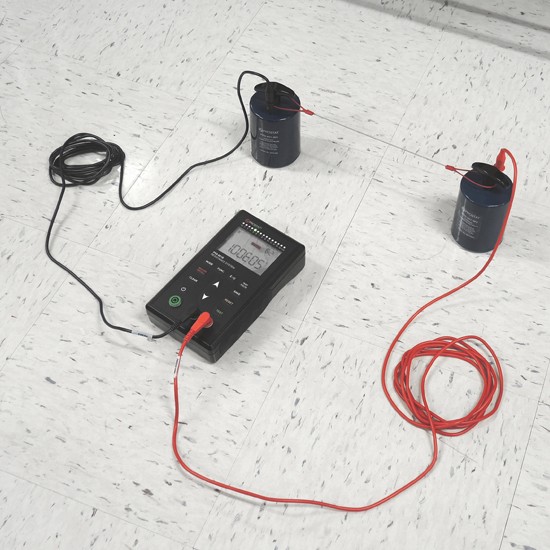

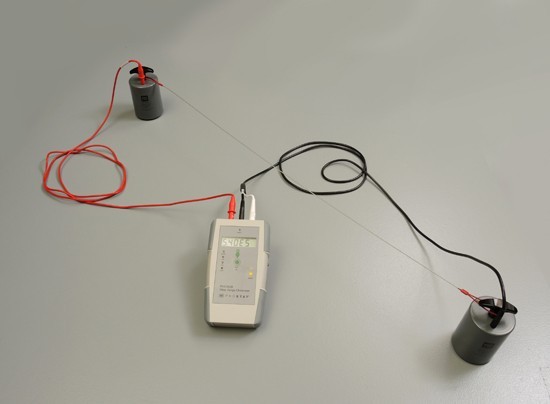

  • Measure work surfaces, equipment, furniture and flooring resistance
  • Check ground and electrical circuit reliability
  • Measure decay time
  • Measure wrist strap testers
  • Test footwear
  • Measure electrostatic fields

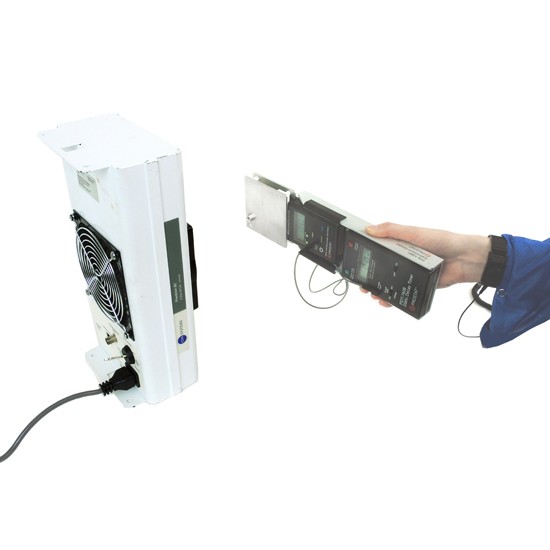

  • Analyze ionizer performance
  • Balance ionizers
  • Measure body voltages
  • Measure charge generation
  • Evaluate garments
  • Measure temperature and relative humidity

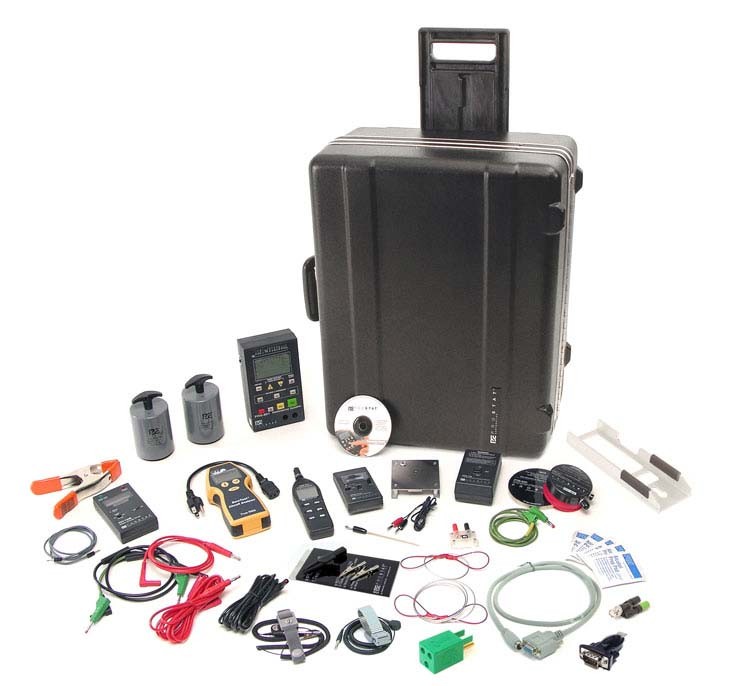

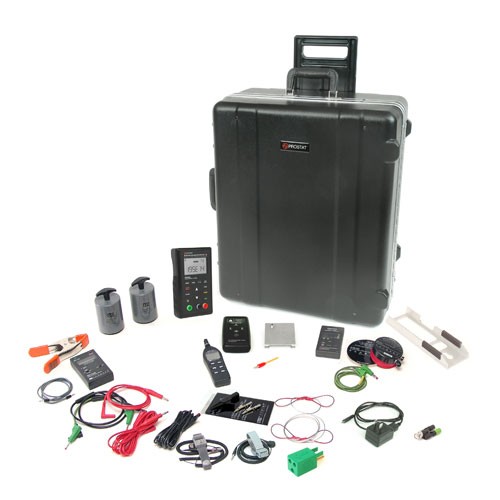

The PSK-310 Kit is the choice of advanced professionals and the ultimate in advanced auditing and material testing. The PSK-310 includes all of the equipment in the PAK-210 Kit and adds the Prostat PRF-911 Concentric Ring Fixture and the PTB-920 Dual Test Bed for surface and volume resistivity measurements of packaging and other flat materials.

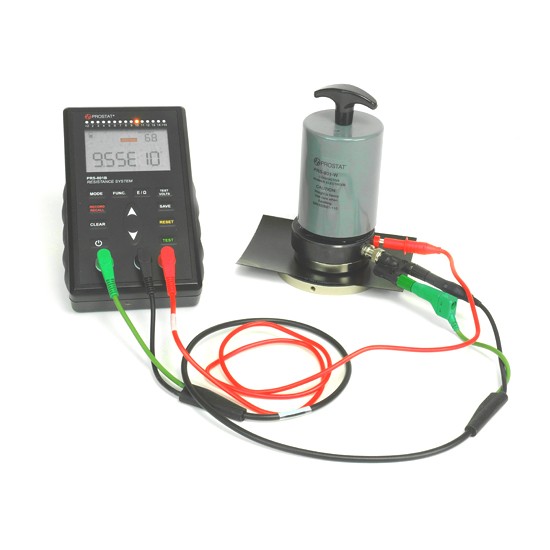

The unique PRF-911 Concentric Ring Fixture is used with the PRS-801 resistance meter for reliable measurement of packaging material resistance and resistivity. It is used with the PTB-920 Dual Sided Test Bed to make resistance measurements recommended by EIA-541 (ASTM D 257) and ANSI/ESD S11.11-1993 guidelines for surface resistance and volume resistivity measurements. Because of its spring loaded center electrode, the PRF-911 Concentric Ring Fixture maintains even contact with materials under test and minimizes the need for frequent recalibration.

The PSK-310 also incorporates the new PRS-801 Resistance System and software, the ESD System Analysis Kit is the most advanced static control measurement and auditing system available today.

Also included is the PHT-771 for temperature and humidity readings, modified wrist straps for instrument and personnel grounding, a common point ground adapter plug, clamps, clips and an operator's manual. It is all contained in a molded carrying case with retractable handle and wheels.

Not only is the PSK-310 the preferred choice of ESD industry professionals, internationally, it is easily customized to meet the most demanding auditing or process evaluation requirements.

What's Included

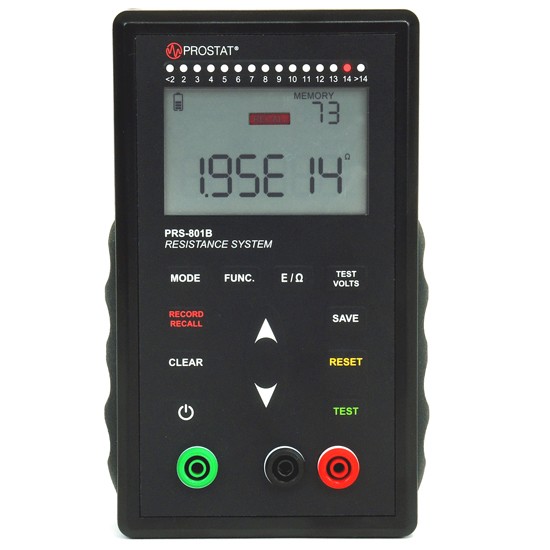

  • PRS-801 Resistance System Set
  • PFK-100 Electrostatic Field Meter Set
  • PDT-740B Static Decay Timer
  • PFK-100H Instrument Holder
  • PHT-771 Digital Psychrometer
  • PGT-61-164 SureTest® Circuit Analyzer
  • PRF-911 Concentric Ring Set
  • PAR-809C Variable Resistance Reference
  • PRS-801-W 5 lbs Conductive Rubber Electrodes (2 each)
  • PRS-800CS Cable Spacers Set - 36" & 10"
  • PWS-610M Fabric Band Wrist Straps
  • PWS-620 Metal Band Wrist Straps
  • 1 each Q007B Common Point Ground Connector
  • PSC-010 Pony 3202 - 2 inch Spring Clamp
  • PRS-801-WW Electrode Cleaning Wipes (5)
  • PK-2/300 SKB Carrying Case with Handle and Wheels
  • PAB-024 Accessories Case
  • Certificates of Calibration with data, treceable to NIST
  • User Manual

Order code Type Place an order
PSK-310 ESD System Analysis Kit {PSK-310}
