PROSTAT PRS-812RM Surface Resistance Meter Kit

Test Anti-Static, Static Dissipative and Conductive Surfaces

  • Surface Resistance Tester from 0.1 ohms to 1.0x1012 ohms
  • Constant Volatges 10 volts and 100 volts
  • Automatic Electrification Period
  • Determines if a surface is Dissipative, Conductive, or Insulative

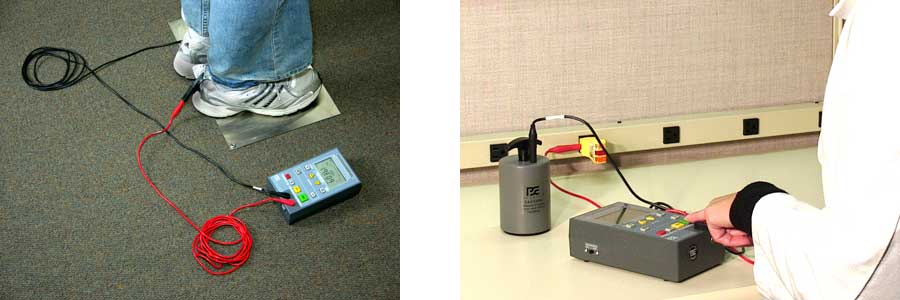

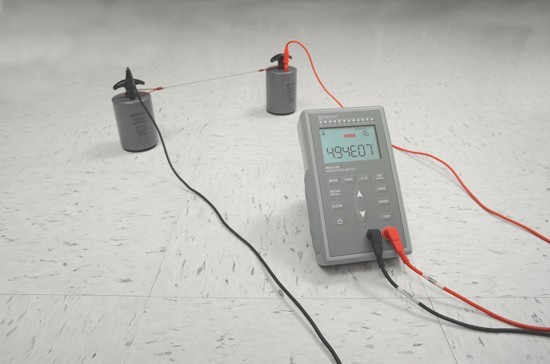

  • Measures resistance point-to-point(Rtt) and resistance to ground (Rtg)
  • Measures resistance of ESD Flooring, ESD Worksurfaces and Packaging
  • Conforms to all ESD Association Standards for Resistive Characterization
  • Includes 2 each Surface Resistance Probes
  • Packaged in a hard shell Carrying Case
  • Certificate of Calibration Traceable to NIST included

Download datasheet

Download user manual

Wide Range. Accurate. Portable.

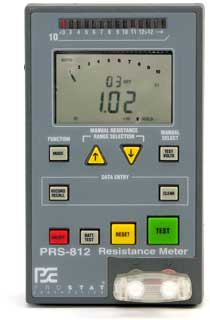

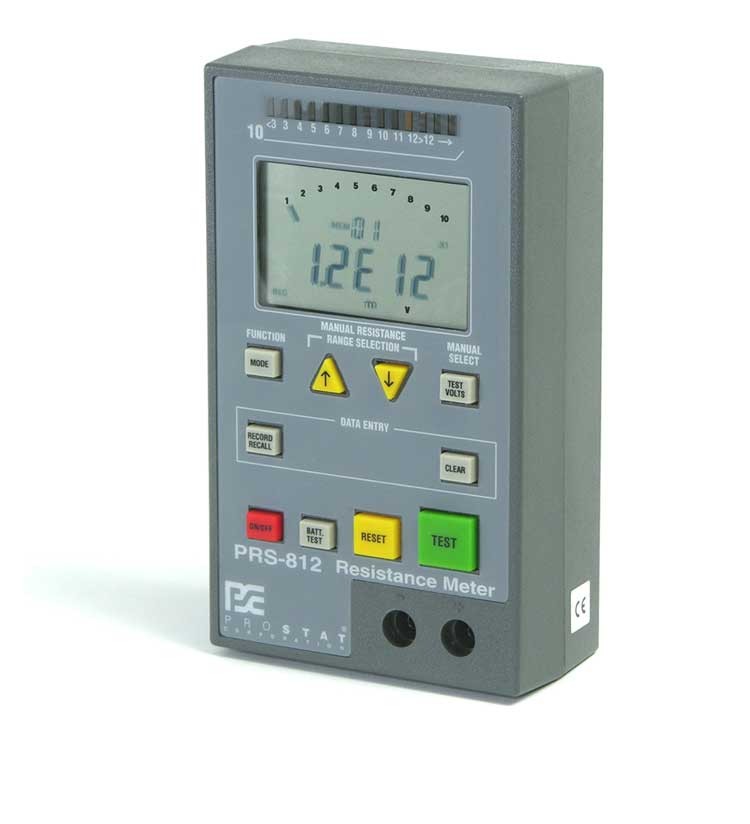

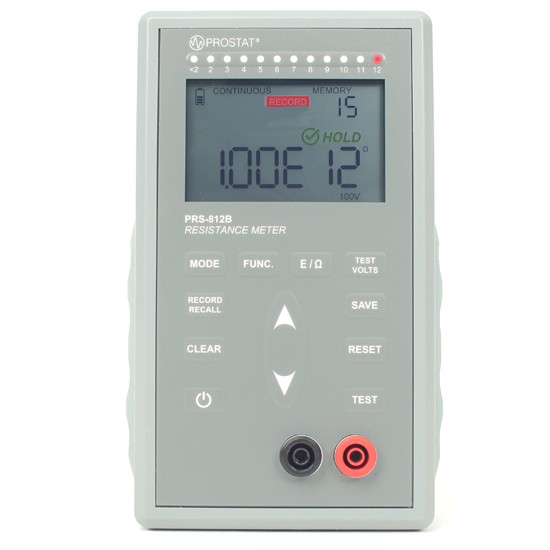

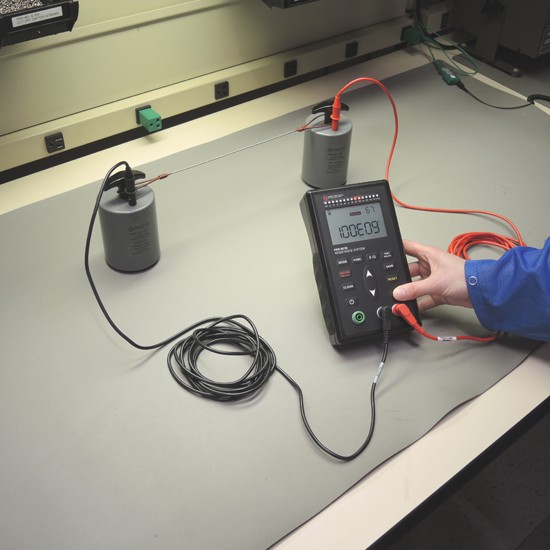

The PRS-812 Surface Resistance Ohmmeter is a wide range portable constant voltage resistance instrument designed for making point-to-point and resistance to ground measurements. The PRS-812 is a reliable instrument withoutstanding accuracy and performance.

The PRS-812 is extremely fast with a constant test voltage system that is incredibly stable and consistent. The PRS-812 is a lightweight solution to a portable instrument with capabilities of storing up to 80 data points.

Ideal in a Variety of Applications

The PRS-812’s accurate wide range of 0.1 to 1.0x1012 ohms offers exceptional flexibility in measurement applications. Combined with the included COnductive Rubber Electrodes, you can measurement resistance on the following:

  • ESD Flooring
  • ESD Worksurface
  • ESD Carts
  • Shelving
  • ESD Gloves
  • Furniture

    Repeatable Measurements

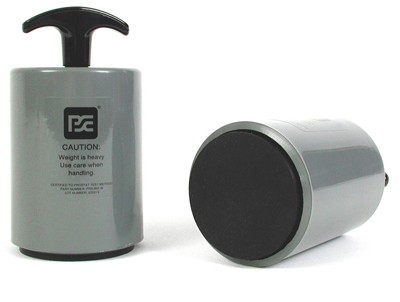

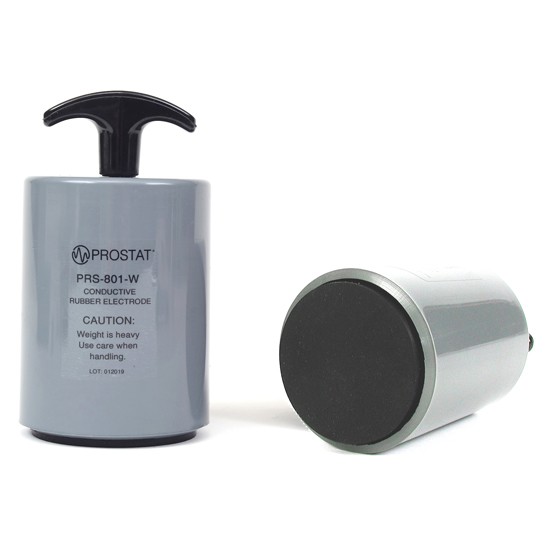

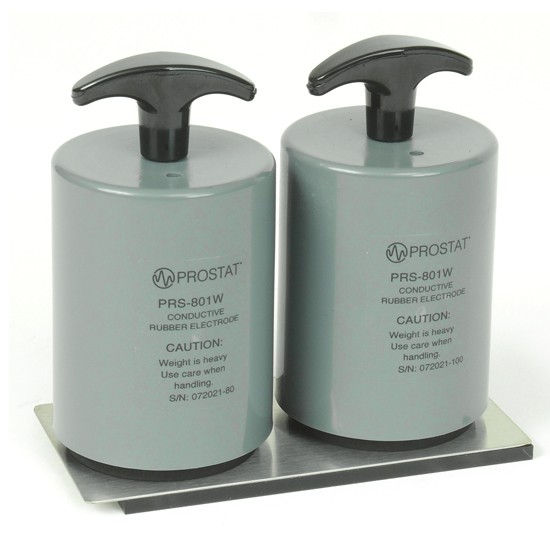

    The Surface Resistance System Kit insludes 2 PRS-801-W Rubber Electrodes which are precision milled resistance probes with conductive rubber pad for use when making point-to-point or point-to-ground resistance measurements. Used for qualifying or testing ESD floors, worksurfaces, floor mats or any flat object, the probes produces repeatable measurements in accordance with ESD Association standards.

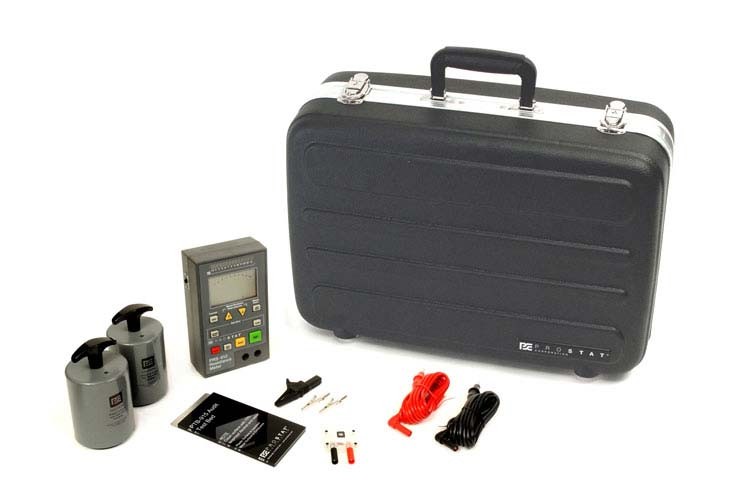

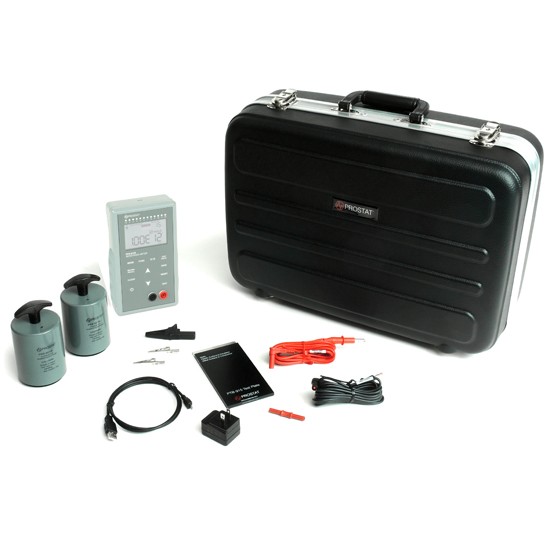

        What's Included

        • PRS-812 Resistance Meter
        • 800LB 10 foot Silicone Test Lead - Black
        • 800LR 10 foot Silicone Test Lead - Red
        • PRS-800CC Calibration Shunt
        • PTB-915 Audit Test Bed
        • PRS-801BC Bulldog Clip
        • PSI-870MAC Metal Clip (2)
        • PRS-801-W 5 lbs Conductive Rubber Electrodes (2)
        • PMK-151C Carrying Case
        • PAB-024 Accessories Case
        • User Manual
        Order code Type Place an order
        PRS-812RM Surface Resistance Meter Kit {PRS-812RM}
