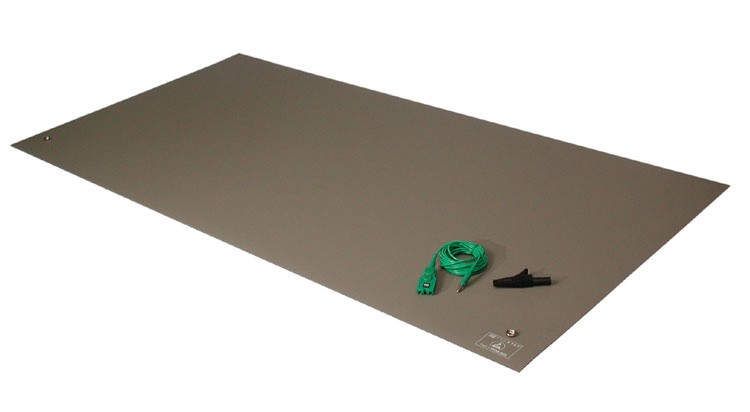

PROSTAT PRM-650 2 x 4 Foot Rubber Mat

12 x 16 inches grey Rubber Mat with green Ground Lead

  • Reflection breaking surface to reduce glare and improve operator comfort
  • High resiliency for protection against small collisions
  • High slip resistance
  • Very high heat and solder resistance
  • High chemical resistance
  • Oil resistance
  • Suitable for free laying (no adhesive required)
  • PVC Free
  • Compatible with continious monitors

Download datasheet

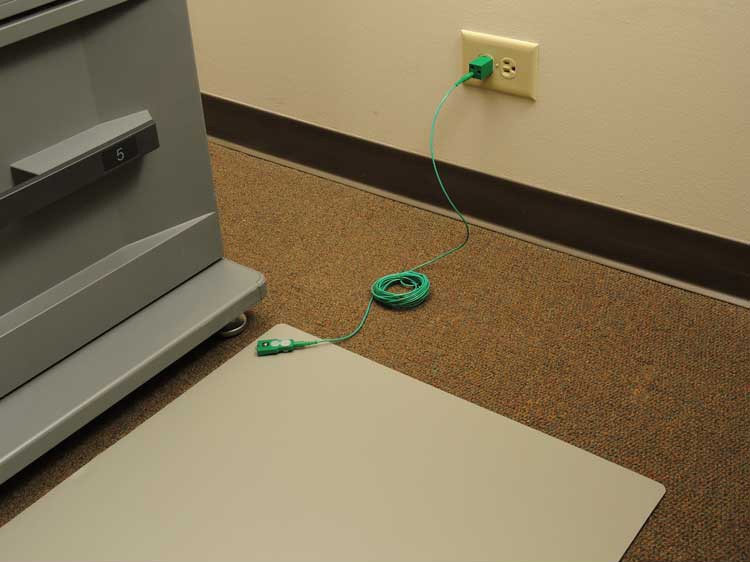

The PRM-652 is a dual-layer synthetic rubber work surface covering with volume functional static dissipative properties. It may be used as a grounded tablemat, as a non-grounded work mat when placed on a grounded surface, or it may be laminated directly to a workbench in place of rigid laminates.

The PRM-652 is a unique, high performance worksurface material that uses both volume electrical properties in addition to surface dissipation to protect your static sensitive products. This approach provides exceptional ESD control performance, product protection and flexible application characteristics for a variety of static control challenges.

CONSTRUCTION

The mat protects static sensitive products and devices as it is made of two layers of high quality Nytril Rubber, in compliance with the most stringent industry standards for ESD control.

TOP LAYER: Static Dissipative layer to discharge static fields at the right speed, thereby preventing damage (grey).

BOTTOM LAYER: Conductive layer to quickly drain to ground all charges filtered by the top layer (black).

FEATURES

  • Reflection breaking surface to reduce glare and improve operator comfort.
  • High resiliency for protection againstsmall collisions
  • High slip resistance
  • Very high heat and solder resistance
  • High chemical resistance
  • Oil resistance
  • Suitable for free laying (no adhesive required)
  • PVC Free
  • Compatible with continious monitors
  • Meets or exceeds requirements of ANSI/ESD S4.1
  • Meets the Federal Standard 101 Method 4046 for static decay.
  • ROHS Compliant
RESISTANCE POINT TO POINT (RTT)
5x107 to 5x108 ohms
RESISTANCE TO GROUND (RTG)
5x107 to 5x108 ohms
SURFACE RESISTANCE Top Layer: <107 ohms
Bottom Layer: <104 ohms
STATIC DECAY TIME 5,000 volts to less than 50 volts in .1 second
SIZE 12 x 16 inches
PHYSICAL PROPERTIES Color: Gray
Texture: Yes
Gauge: 0.080"
Tensile: 350 lb/in2 minimum
Elongation: 110% minimum
Tear: 80 lb/in minimum
COLOR Gray with low reflecting satin finish to reduce glare
HEAT TOLERANCE Withstands frequent contact with hot soldering irons



Order code Type Place an order
PRM-652 Rubber Mat {PRM-652}
