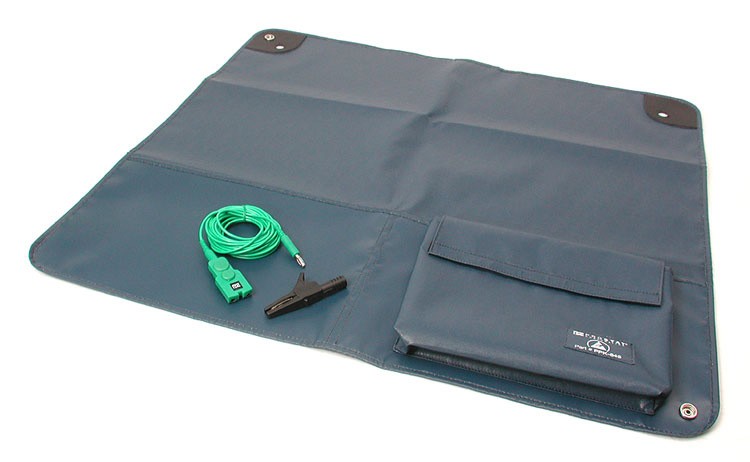

PROSTAT PPK-645 Field Service Mat with Storage Pouch

25 ½ x 24 inches blue Field Service Mat with attached storage pouch, green Ground Lead and Bulldog Clip

  • Portable ESD workstation that can be set up anywhere a technician needs to work on sensitive equipment or devices.
  • Features a unique multi-layer construction that is flexible, non-tacky and color stable.
  • Includes a 15 foot Ground Cord and a Bulldog Clip.
  • Includes 9-1/2 x 7 inch storage pocket with Velcro sealable closure.

Download datasheet

The unique static-dissipative PPK-645 Field Service Mat is designed to easily transport equipment and material. This fabric, featuring a unique multi-layer construction is flexible, non-tacky and color stable.

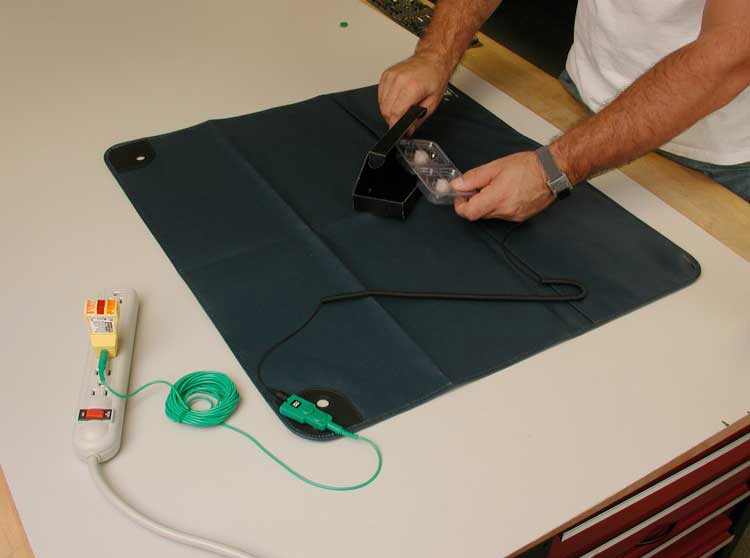

Using this Field Service Mat allows the engineer to fold and set up a workstation anywhere in the plant. Only available in blue, the PPK-645 Field Service Mat is highly resistant to tearing.

The buried conductive layer is the primary path to ground within the structure. It’s construction provides the same resistance-to-ground measurements from any point on the material. It also includes a handy storage pouch for miscellaneous accessories.

RESISTANCE RTT At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106 – 107 ohms
RESISTANCE RTG At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106 – 107 ohms
Min / Max Temperature Range -24ºC to 60ºC (-10º F to + 140º F)
SIZE 25 ½ x 24 inches
THICKNESS ~ .015 inches
COLOR Blue

Order code Type Place an order
PPK-64 Field Service Mat with Storage Pouch {PPK-645}
