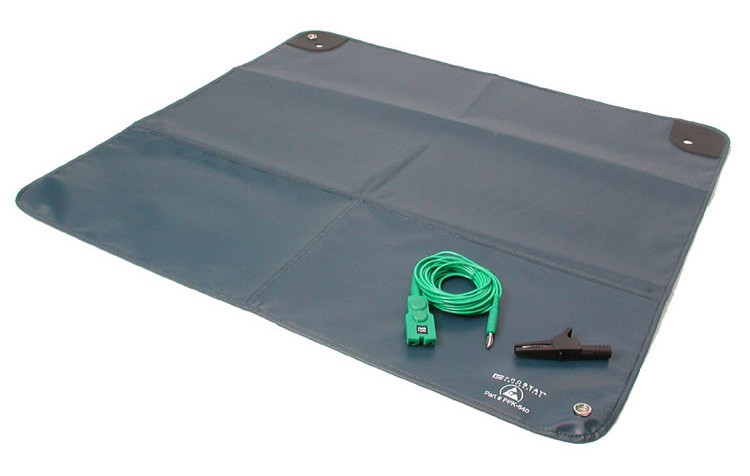

PROSTAT PPK-640 Field Service Mat

25 ½ x 24 inches blue Field Service Mat with green Ground Lead and Bulldog Clip

  • Accurate Wide Range Resistance Measurements: 0.1 Ω to 2.0x1012 Ω with overall nominal accuracy <±5%; Maximum range 2.0x1014 Ω
  • Variable Voltage 0.1 mv to 9.99 V for low resistance measurements
  • Constant Test voltages 10V and 100V for specification measurements to meet international and domestic ESD measurement standards
  • Auto Resistance Range Control
  • Auto Test Voltage Control
  • Automatic Electrification Period adjustment to obtain most accurate measurements
  • 80 Data Point Memory
  • Download to Excel© in batches or individual measurements
  • Fast and Flexible

Download datasheet

The unique static-dissipative PPK-640 Field Service Mat is designed to easily transport equipment and material. This fabric, featuring a unique multi-layer construction is flexible, non-tacky and color stable.

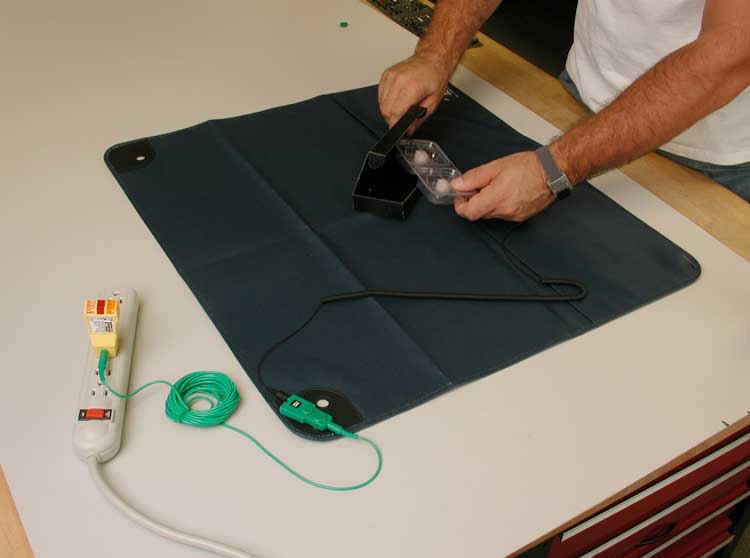

Using this Field Service Mat allows the engineer to fold and set up a workstation anywhere in the plant.

Only available in blue, the PPK-640 Field Service Mat is highly resistant to tearing. The buried conductive layer is the primary path to ground within the structure. It’s construction provides the same resistance-to-ground measurements from any point on the material.

RESISTANCE RTT At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106 – 107 ohms
RESISTANCE RTG At 10 volts, 12% RH (Rtt) 106 – 107 ohms
At 100 volts, 50% RH (Rtt) 106 – 107 ohms
Min / Max Temperature Range -24ºC to 60ºC (-10º F to + 140º F)
SIZE 25 ½ x 24 inches
THICKNESS ~ .015 inches
COLOR Blue

Order code Type Place an order
PPK-640 Field Service Mat {PPK-640}
