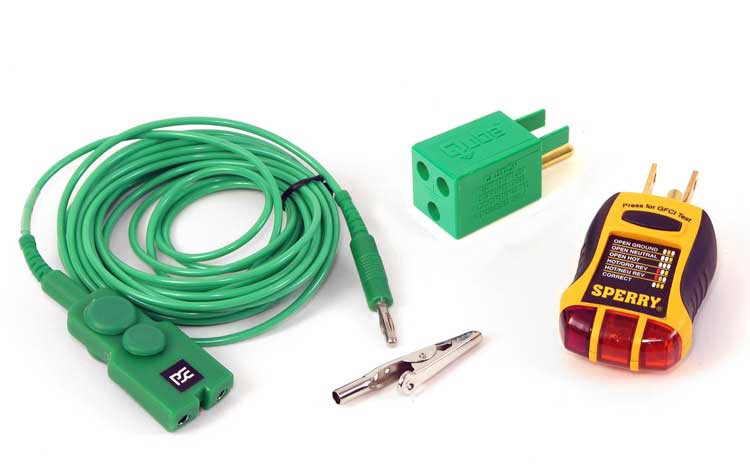

PROSTAT PGT-6302QG Outlet Tester with Qube & Ground Cord

Perfect Grounding Kit

Includes the Triple Socket Grounding Cube
Includes a 15 foot long Ground Cord
Includes the Sperry GFI6302 GFCI Outlet Tester
Recommended for use on tested electrical outlets
Replaces expensive grounding blocks and circuit indicators
Convenient connection for ESD grounding
The Sperry GFI6302 has a GFCI Test Button
Convenient connection for ESD grounding
In accordance with IEC 61340-5-1
In accordance with ANSI/ESD S20.20
In accordance with ANSI/ESD S6.1

Download datasheet

Download user manual

Q007B Commong Point Ground Connector

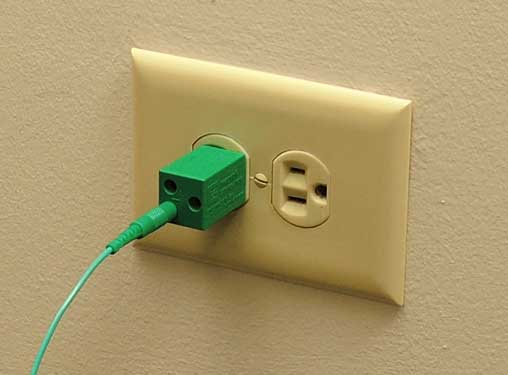

The Prostat Qube™ replaces ordinary electrical grounding devices with a convenient, cost effective means to connect several ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist strap & testers, instruments, and other ESD control products to a pre-tested facility electrical ground. It consists of a robust multi receptacle frame encased in fire retardant ABS with a solid brass grounding pin.

PGC-015G Green Ground Cord

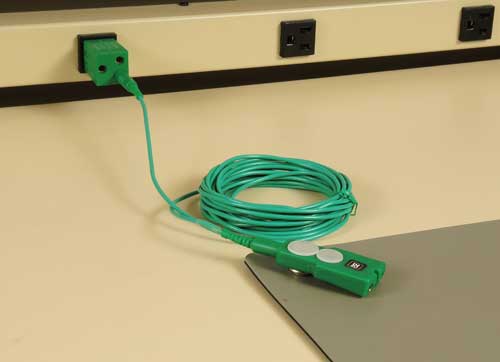

The Prostat PGC-015G is a 15 foot straight common point ground cord with two banana receptacles, in low profile housing for connecting two wrist straps. The PGC-015G includes one 1.0x10⁶ (±20%) current limiting resistor molded in the snap housing, a low profile housing with a 10 mm male snap for easy connection to mat, a male banana plug for cord connection to ground.

The PGC-015G is made in accordance with IEC 61340-5-1, ANSI/ESD S20.20, ANSI/ESD S6.1.

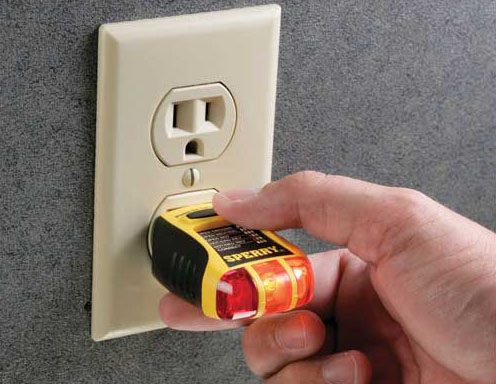

Sperry GFI6302 GFCI Outlet Tester

Tests standard 3-wire and GFCI protected 120V outlets for 7 common wiring errors. GFCI function tests GFCI and standard outlets wired in series with GFCI outlets (e.g. multiple outlets in kitchen or bath). Neon lamps indicate 7 common wiring conditions with the wiring condition legend easily visible on top and bottom of tester. Tester offers a compact ergonomic design with over-molded rubber grips.

Includes the Triple Socket Grounding Cube
Includes a 15 foot long Ground Cord
Includes the Sperry GFI6302 GFCI Outlet Tester
Recommended for use on tested electrical outlets
Replaces expensive grounding blocks and circuit indicators
Convenient connection for ESD grounding
The Sperry GFI6302 has a GFCI Test Button
Convenient connection for ESD grounding
In accordance with IEC 61340-5-1
In accordance with ANSI/ESD S20.20
In accordance with ANSI/ESD S6.1

Q007B Common Point Ground Connector

DIMENSIONS (LxWxH):	2.12" x 0.9" x 0.9" (5.385cm x 2.286cm x 2.2286cm)
CASE MATERIAL	Fire Retardant ABS
COLOR	Green
CONFIGURATION	3 standard banana jack inputs, Brass Grounding Pin, 2 FR ABS Spades

PGC-015G Green 15 Foot Ground Cord

LENGTH	15 feet (4.6 meters)
RESISTOR	One megohm (±10%) resistor molded into snap connection
COLOR	Green

SPERRY GFI6302 GFCI OUTLET TESTER

OPERATION RANGE	120 VAC, 60 Hz; CAT III 300V
INDICATORS	Visual Only
OPERATING ENVIRONMENT	32° - 104° F (0 - 32° C) 80% RH max., 50% RH above 30° C

Order code	Type	Place an order
PGT-6302QG	Outlet Tester with Qube & Ground Cord	{PGT-6302QG}
