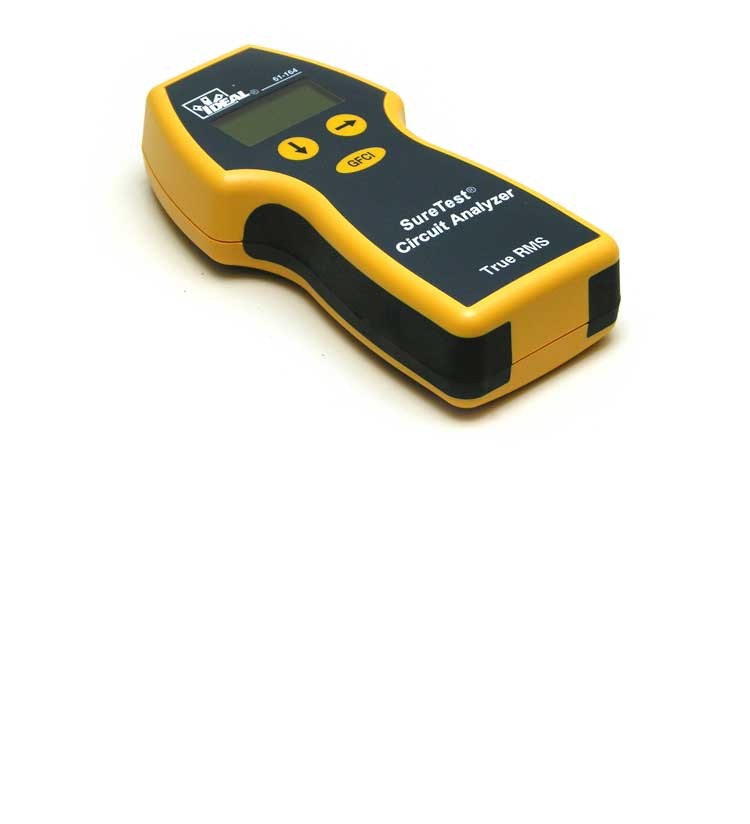

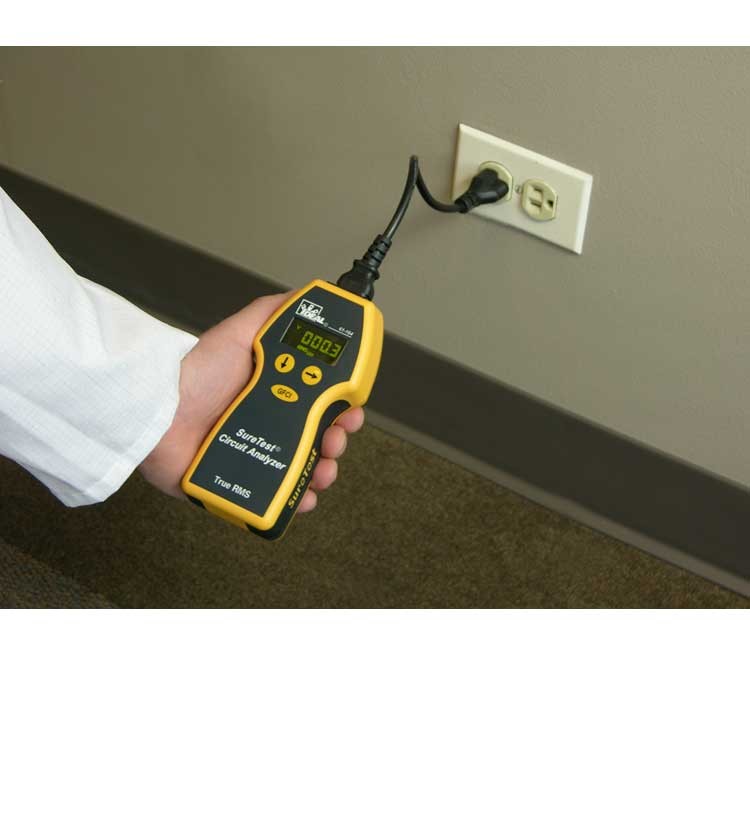

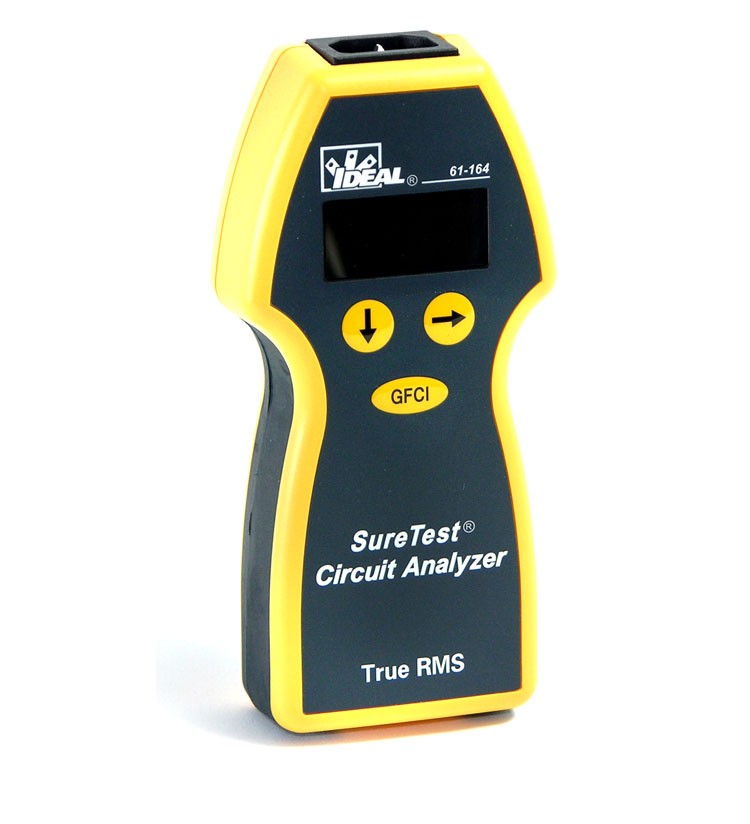

PROSTAT PGT-61-164 SureTest Circuit Analyzer

Test Electrical Circuits


Download datasheet

Download user manual

Proper wiring is crucial to ensure safety and performance of Branch circuits. From a safety perspective, shock hazards and fires are mainly due to poor installation or failure of protective devices, such as GFCIs. From a performance perspective, electrical equipment and high-tech devices are found everywhere in residential and commercial buildings. They require reliable power to operate and function properly to ensure their longevity.

The unit is designed for 120 volts AC Hot Neutral and Ground only. It is protected in the event of a miswired outlet in the US electrical system to 240 VAC, but should be immediately unplugged and no tests performed until the voltage is corrected. Obviously that is not applicable in countries where the standard voltage is 240 H to N. The unit is not intended for nor is suitable for any other use than 120 VAC at 60 hertz.

Meets requirement from ANSI/ESD S6.1.

  • Designed for 120 Volts AC Hot Neutral and Ground
  • Measures Ground Impedance per ANSI/ESD S6.1
  • Neutral & Ground Wires Verification per ANSI/ESD S6.1
  • Verifies that Hot & Neutral are not reversed
  • Verifies that Hot & Equipment Ground are not reversed
  • Line Voltage
  • True RMS
  • Peak Voltage
  • Ground to neutral voltage
  • Frequency
  • Hot and neutral conductor impedances
  • Identifies false (bootleg) grounds
  • Tests GFCIs and EPDs for proper operation
  • Identifies proper wiring in 3-wire receptacles
CASE CONSTRUCTION
ABS UL 94 V/0/5VA rated
DISPLAY UPDATE FOR VOLT
Less than 2.5 times second
OVER-RANGE INDICATION ON ALL FUNCTIONS
Display “OL”
DISPLAY
128x64 OLED with backlight
DIMENSIONS
6.4” (L) x 3” (W) x 1.4” (D)
WEIGHT
9.4oz (267g)
ACCESSORIES
One (1) AC extension cord provided for plug in to outlets.
DOUBLE INSULATION
Instrument has been evaluated and complies with insulation category III, (Overvoltage category III) Pollution degree 2 in accordance with IEC-644. Indoor use.
ENVIRONMENT SPECIFICATION
OPERATING TEMPERATURE
32°F to 122°F (0° C to 50° C) at <80% Rh
STORAGE TEMPERATURE
32°F to 122°F (0° C to 50° C) at <80% Rh
ALTITUDE
2000m (6561.7 ft.)
SAFETY UL61010B-1, Cat III-300V
UL-1436 for AFCI, GFCI & Outlet
MEASUREMENT SPECIFICATIONS
 All specifications are at 23° C ± 5° C at less than 80% relative humidity
Accuracy is stated as ± ((% of range) + (counts))
AC converter is true rms sensing

MEASUREMENT RANGES RESOLUTION ACCURACY
Line Voltage 85.0 – 250.0 VAC 0.1 V 1.0% ± .2 V
Peak Line Voltage 121.0 – 354.0 VAC 0.1 V 1.0% ± .2 V
Frequency 45.0 – 65.0 Hz 0.1 Hz 1.0% ± .2 V
% Voltage Drop 0.1% - 99.9 % 0.1 % 2.5% ± .2 %
Voltage Loaded 10.0 – 250.0 VAC 0.1 V 2.5% ± .2 %
Neutral-Ground V 0.0 – 10.0 VAC 0.1 V 2.5% ± .2 %
Impedance – Hot Neutral, & Ground 0.0 Ω - 3.00 Ω
1.0 > 3 Ω		 0.01 Ω 2.5% ± .02 Ω
Unspecified
GFCI Trip Time 1mS to 6.500S counter 1 mS 1.0% ± .2mS
GFCI Trip Current 6.0 – 9.0 mA 0.1 mA 1.0% ± .2 mA
EPD Trip Current 30.0 – 37.0 mA 0.1 mA 1.0% ± .2 mA
Order code Type Place an order
PGT-61-164 SureTest Circuit Analyzer {PGT-61-164}
