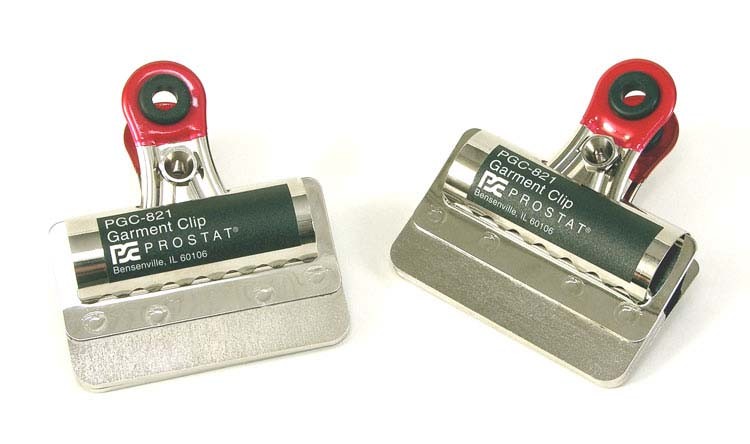

PROSTAT PGC-821 Garment Clip
Measure resistance of static control garments in accordance with ANSI/ESD STM2.1
- In accordance with ESD Association Standard Test Method ANSI/ESD-STM2.1 Garments.
- Uses a Nickel Plate conductive banana jack for test lead connection.
- The Clamp Insulation is a Rubber Grommet measuring >1.0x1012 Ohms over a Heavy Duty Rubber Coating for hanging garments during vertical measurements.
- Designed to work with the PRS-801, PRS-812, PAS-853B or any suitable resistance meter
- PGC-821 includes 2 clips

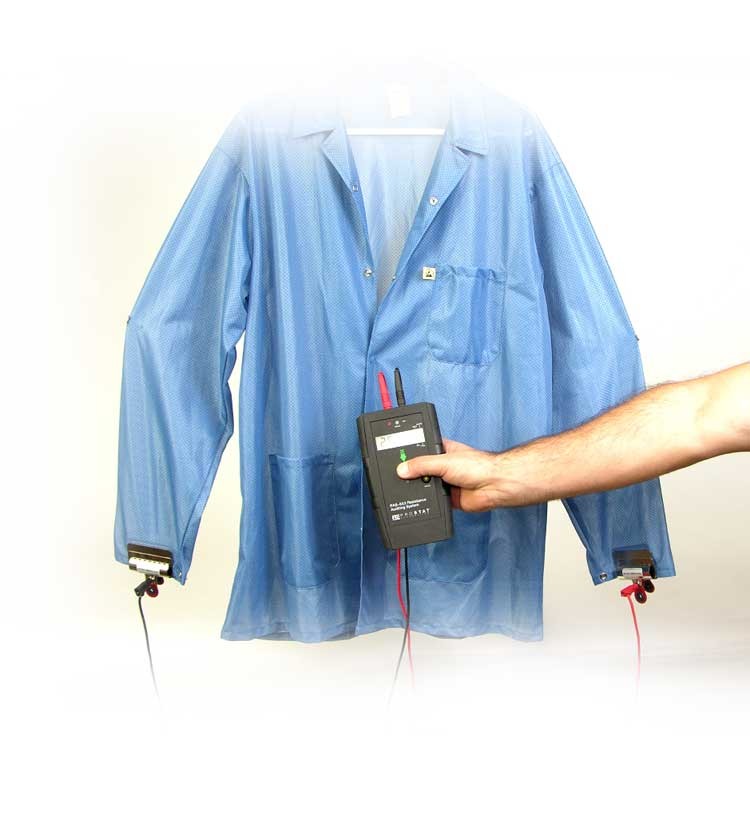

These useful plated steel garment clips were designed in accordance with ESD Association Standard Test Method ANSI/ESD-STM2.1 Garments. Attach them directly to a garment’s sleeves or hem for making either evaluation or audit resistance measurements.
These unique clips are designed for simple connection to a resistance measurement instrument via banana input receptacles. Clip flanges are insulated to provide electrical isolation when making measurements.
While Prostat’s PGC-821 Garment Clips are designed for evaluation and qualification testing in accordance with ANSI/ESD STM2.1 (5.1.2.2 Clamps/Electrodes - Sleeve to Sleeve), they are also particularly useful for Garment Audit measurements in plant, laundry or in various field configurations.
Use the PGC-821 Garment Clips with the PRS-801 Resistance System, PRS-812 Resistance Meter, PAS-853B Wide Range Ohmmeter, or any suitable resistance measuring instrument.
Technical Specifications
| ELECTRODE SIZE |
2.92” x 1.0” x 0.125” (74.168mm x 25.4mm x 3.175mm)
|
| ELECTRODE MATERIAL |
Plated Stainless Steel
|
| OVERALL DIMENSIONS |
2.92” x 3.28” x 1.29“ (74.168mm x 83.31mm x 32.77mm)
|
| LEAD CONNECTION |
Nickel Plated Conduc?? ve Banana Jack
|
| CLAMP INSULATION |
Rubber Grommet Measuring >1.0x1012 Ohms
|
| WEIGHT |
4.8 oz (each clip)
|
| Order code | Type | Place an order |
|---|---|---|
| PGC-821 | Garment Clip | {PGC-821} |
