PROSTAT PFK-105 Ionization Test Set
Perfect Kit for Testing and Balancing Ionizers
- Includes a FIeld Meter, Charge Plate Monitor, Charging Source and Decay Timer
- Balance Ionizers per ANSI/ESD SP3.3 Periodic Verification
- Measure Ionizer Decay time as per ANSI/ESD S3.1 and ANSI/ESD SP3.3.
- Measure Body Voltage Generation and Decay
- Measure decay times for ionizers and materials
- Evaluate Ionizers and Packaging Materials

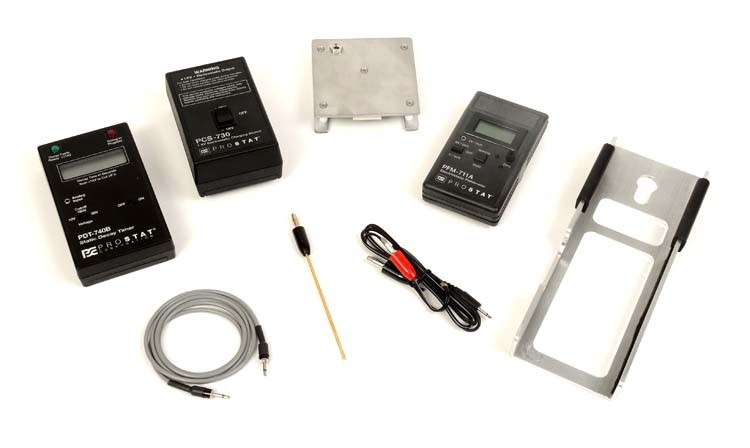

- Includes a fixture to hold the PFM-711B, CPM-720B and PDT-740B as one
Meter for Testing of Electrostatic Fields

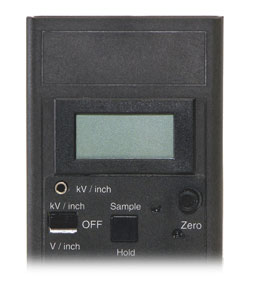

The hand-held PFM-711B Fieldmeter is an instrument used to perform static surveys and polarity on objects with accuracy of ±2% at ambient conditions (23ºC and 30%Rh). This stabilized chopper can be used in environments with a presence of ionization without drifting. The Hold button allows the field meter to hold the measurement for easy recording. It also features automatic polarity indication, low battery indicator, high and low ranges, distance ranging lights for accurate and repeatable measurements, manual zero control and a ground snap. The PFM-711A includes two ranges of operation:
- 0 to 1,999V in 1 Volt increments with <±2% error
- 0 to 20,000V in 10 Volt increments with <±5% error up to 5kV
With the supplied analog output cable, it can be used in conjunction with an X-Y plotter or any analog data-recording device. The front panel analog output jack provides a 1 volt output corresponding to 10kV, which is independent of the selected meter range and indication.
A Portable Charge Plate Monitor

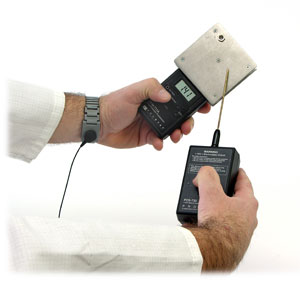

The CPM-720B Charge Plate Assembly is 3.25 inches square. It attaches to the PFM-711B field meter for ionizer balancing per ANSI/ESD SP3.3 Periodic Verification, voltage or charge generation and voltage suppression analysis.
The CPM-720B 3.25 inch plate has a a capacitance of 19pF.
Charge It Up!
The PCS-730B ±1 kV Charging Source is used to charge the CPM-720B to ±1,000 volts to measure ionizer decay time as required by both ANSI/ESD S3.1 and ANSI/ESD SP3.3.
These three instruments are match calibrated to work together for accurate and efficient auditing.
Measuring Material Decay Time

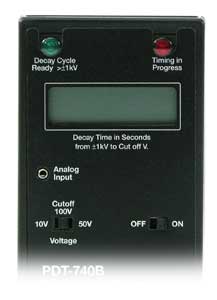

The PDT-740B Static Decay Timer is typical of Prostat’s innovative technology and support of Professional ESD Control Managers and Auditors.This unique accessory is designed to measure the decay time of ionizers from ±1,000 volts to less than 100 volts in accordance with ESD Association’s Ionization Standard ANSI/ESD STM3.1, and measure material decay time to less than 50 volts and less than 10 volts.
A Helping Hand for Ionizer Analysis!

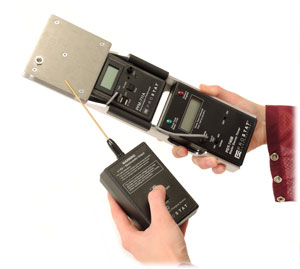

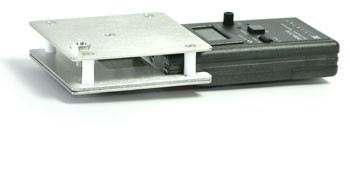

This fixture is designed to easily hold your PFM-711B Field Meter, your CPM-720B Charge Plate Monitor your PDT-740B Static Decay Timer. Lightweight, this instrument holder will facilitate balancing your ionizer, by holding all instruments in 1 hand.
Technical Specifications
|
PFM-711B ELECTROSTATIC FIELD METER SPECIFICATIONS |
|
| OVERALL RANGE | Low Range: 0 V to ±1999 V High Range: 0 V to ±19.99 kV |
| ACCURACY | Voltage Monitor Output: Better than ±5% of reading, ±10 mV Voltage Display: Better than ±5% of reading, ±2 counts |
| STABILITY | ±10 counts |
| VOLTAGE MONITOR |
Output: ±20.0 kV meter reading equals ±2.0 Volt output
Ratio: Low Range: 0 to 2,000 volts is equal to ±0.2 volts output High Range: 0 to 20,000 volts is equal to ±2 volts output |
| DISPLAY | Number of Characters: 3.5 digits Character Format: 7-Segment Character Size: 12.70mm H x 7.62mm W Automatic polarity, LOW BATTERY indicator |
| RANGE | V / Inch: 0 to ±1999 V / inch kV / Inch: 0 to ±19.99 kV / inch |
| DISPLAY RESOLUTION | Low Range: 1 Volt increment High Range: 10 Volts increments |
| SAMPLING RATE | Display readings are updated every 0.5 seconds Analog readings are taken every 100mS, or 10 times per second |
| LOW BATTERY | Low battery indicator comes on at 7.4 Volts |
| GROUNDING | Case: Circuit grounded through conductive case Ground Snap: 10 mm snap fastener mounted on back of case |
| POWER | 9 VDC alkaline battery included Approx. 20 hours (of continuous use) |
| MEASUREMENT DISTANCE | 1" ± 1/64" (25mm ± 0.5mm) LED distance indicator aligned targets indicate 1 inch (25 mm) |
| OUTPUT | Analog Output: 2.5 mm jack (3/32”) audio jack 2 Volts output corresponds to 20 kV Response Time: Less than 180ms (90-10%) Sensor Noise Signal (Typical)1: Maximum Voltage: +3 volts Minimum Voltage: -5 volts |
| OPERATING TEMPERATURE | 10°C to 30°C (50°F to 80°F) |
| OPERATING RELATIVE HUMIDITY | 0% – 80%, non-condensing |
| OPERATING ALTITUDE | 2000 m |
| DIMENSIONS | 27.2 mm x 61.5 mm x 105.9 mm 1.07” x 2.41” x 4.17” |
| WEIGHT | 142 g (5.0 oz.) with battery |
| WARRANTY | 2 years on circuit board, display and membrane 1 year on sensor2 |
| CPM-720B CHARGE PLATE ASSEMBLY | |
| TOLERANCE | Matches the PFM-711B Field Meter within 5% when calibrated together |
| CAPACITANCE | 19 Picofarads (pF) ±1 pF when mounted to the PFM-711B |
| RANGE | 0 to ±5 kV ±2% |
| GROUNDING | Through conductive case and snap fastener of PFM-711B Field Meter |
| OPERATING TEMPERATURE | 10°C to 30°C (50°F to 80°F) |
| OPERATING RELATIVE HUMIDITY | 0% – 70%, non-condensing |
| OPERATING ALTITUDE | 2000 m |
| DIMENSION | Without the Banana Input Jack: 8.25 cm x 8.25 cm x 1.75 cm 3.25” x 3.25” x 0.69” With the Banana Input Jack: 8.25 cm x 8.25 cm x 2.29 cm 3.25” x 3.25” x 0.90” |
| WEIGHT | 8 oz (227g) |
| PCS-730B CHARGING SOURCE | |
| INPUT POWER | 9 VDC alkaline battery included Minimum of 28 hours (of continuous use) Approximately 20,000 charges of either polarity |
| OUTPUT | ±1,250 ±5% volts DC Current limited to less than 1 Microamp. |
| OUTPUT CONNECTOR | Female banana jack provided with mating contact rod |
| CHARGING SPEED | Charges from zero to over ±1000 volts in 3 seconds at ambient conditions |
| GROUNDING | 10mm female snap fastener on rear of case. |
| OPERATING TEMPERATURE | 10°C to 30°C (50°F to 80°F) |
| OPERATING RELATIVE HUMIDITY | 0% – 80%, non-condensing |
| OPERATING ALTITUDE | 2000 m |
| DIMENSION | Electrostatic Charger: 2.85 cm H x 6.12 cm W x 12.65 cm L 1.12” H x 2.41” W x 4.98” L Charging Rod: Length: 4.45cm (1.75”) Length: with banana plug: 8.18 cm (3.22”) Diameter: 0.154” |
| WEIGHT | 147 g (5.2 oz.) with battery |
| PDT-740B STATIC DECAY TIMER SPECIFICATIONS | |
| CONTROLS | OFF-ON Cut Off Voltage, 10, 50 and 100 Volts (Selects Voltage to stop timing) |
| INDOCATORS | Green LED: Decay Cycle Ready > ± 1kV, CPM voltage > ± 1,000 volts Red LED: Timing in Progress, CPM voltage decay timing activated LOBAT displayed when battery voltage <6.0 volts |
| DISPLAY | Liquid Crystal Display (LCD) displays elapsed decay time from ± 1,000 volts to selected Cut Off voltage in seconds and tenths of a second (00.0) |
| POLARITY | Automatically senses Positive & Negative voltage references |
| ZERO & RESET | Automatically Resets Timer and Display to 00.0 when CPM voltage > ± 1kV. Reset indicated when Green LED Decay Cycle Ready LED is ON. |
| RESPONSE | Approximately 200 milliseconds in combination with the CPM-720 and PFM-711B |
| TIMING RANGE | From 0.2 to 159.9 seconds |
| TIMING SETPOINTS | Reset when voltage input 100mv ± 2mv (1,000 Field Meter Volts ± 20V) Cut Off Voltage @ 100 V: 10mv ± 0.2mv (100 Field Meter Volts ± 2V) Cut Off Voltage @ 50 V: 5mv ± 0.2mv (50 Field Meter Volts ± 2V) Cut Off Voltage @ 10 V: 1mv ± 0.2mv (10 Field Meter Volts ± 2V) |
| ACCURACY | Typically < ± 5% |
| POWER | One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22)Eveready #216 |
| BATTERY LIFE | >40 hours typical |
| DIMENSIONS | 4.50 inches x 2.75 inches x 1.0 inches |
| WEIGHT | 6.5 oz. (184 gm) |
| PFK-100H INSTRUMENT HOLDER SPECIFICATIONS | |
| CONSTRUCTION | Aluminum |
| DIMENSIONS | 8.25 in x 3.0 in x 1.0 in (20.96 cm x 7.62 cm x 2.54 cm) |
| WEIGHT | 5.4 oz (153g) |
1 Typical specifications are not guaranteed.
2 Warranty on the sensor limited to a defective sensor that was not dropped or used for measuring a source greater than 20kV.
| Order code | Type | Place an order |
|---|---|---|
| PFK-105 | Ionization Test Set | {PFK-105} |
