PROSTAT PED-655 Engineer's Desktop ESD Workstation

Designed for Professional Engineers

  • Contains everything a technician needs for setting up a static control work area.
  • The rubber worksurface mat is a unique bench-top surface covering designed to be used as a grounded tablemat or is volume groundable to conductive workstation.
  • Can also be laminated directly to a workbench in place of rigid laminates.
  • This mat is made from StatMat™, a unique, high performance rubber worksurface material that uses volume electrical properties in addition to surface dissipation to protect your sensitive static sensitive products.
  • Each mat is equipped with two ground snaps for easy access to ground.
  • Every Prostat worksurface is Performance Certified; documentation is provided.

Download datasheet

Static can be a problem anywhere. ESD test equipment is a necessity. It is especially dangerous to new designs and developmental projects. Now, a complete, portable desktop ESD workstation can easily be set up anywhere the engineer is working. Don't be caught unprotected. Use this handy workstation any time you are working on a circuit board, evaluating components or testing prototypes. Set it up at your desk, in the conference room or any temporary workspace. Each workstation is ESD performance tested.

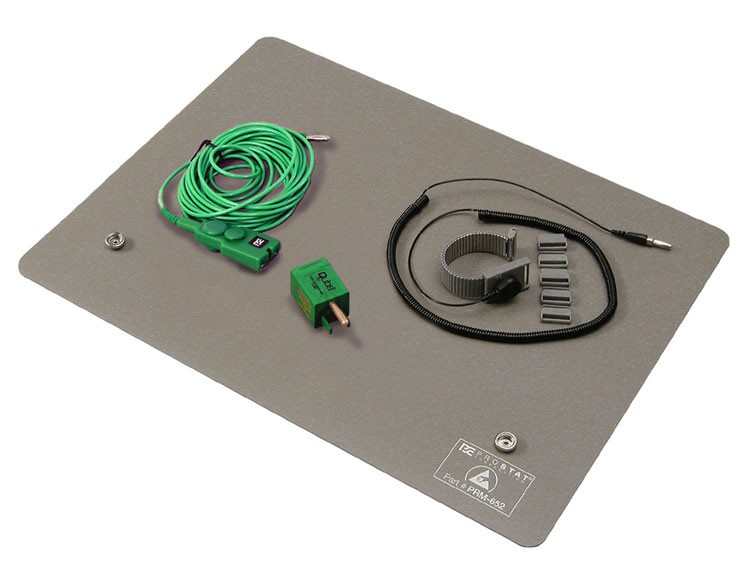

Each PED-655 Workstation includes a PRM-652 12 x 16 inch Auditors Rubber Mat, a PGC-015G 15ft Green Ground cord, a Prostat Qube™ and a PWS-620 Wrist Strap.

The PRM-652 ESD test equipment is manufactured from static dissipative work surface material. The PRM-652 is a dual-layer synthetic rubber surface covering with volume functional static dissipative properties. The mat has two 10 mm ground snaps installed for easy connection to ground using the PGC-015G ground cord supplied.

The PGC-016B is a low profile ground connection. Equipped with a 10 mm male snap connection, it easily attaches to a mat ground snap. Within the housing are two female banana connections for wrist strap grounding. The cord is 15 feet long with a standard banana plug for ground connection.

The PWS-620 Wrist Strap features a metal wristband that incorporates a patented linking system. It enables you to adjust the strap to fit virtually any wrist size. This unique band comes manufactured in 130mm lengths and can be easily enlarged using one or more of the five 10mm nylon expansion links included. The band is extremely comfortable, as each one is "custom fit" to the user. The wrist strap cord is a heavy duty, lightweight construction of single bundle, laced tensile conductors reinforced with synthetic fibers. The cord incorporates a one megohm (±10%) resistor molded into the snap connection. The ground connection is a standard banana plug.

The Prostat Qube™ ESD test equipment replaces expensive electrical ground circuit testers and indicators with a convenient, cost effective means to connect vital ESD controls to grounded electrical outlets.

PRM-652 RUBBER MAT
RESISTANCE POINT TO POINT (RTT)
5x107 to 5x108 ohms
RESISTANCE TO GROUND (RTG)
5x107 to 5x108 ohms
SURFACE RESISTANCE Top Layer: <107 ohms
Bottom Layer: <104 ohms
STATIC DECAY TIME 5,000 volts to less than 50 volts in .1 second
SIZE 12 x 16 inches
PHYSICAL PROPERTIES Color: Gray
Texture: Yes
Gauge: 0.080"
Tensile: 350 lb/in2 minimum
Elongation: 110% minimum
Tear: 80 lb/in minimum
COLOR Gray with low reflecting satin finish to reduce glare
HEAT TOLERANCE Withstands frequent contact with hot soldering irons
Q007 COMMON POINT GROUND CONNECTOR (QUBE)
DIMENSIONS (LxWxH):  2.12" x 0.9" x 0.9" (5.385cm x 2.286cm x 2.2286cm)
CASE MATERIAL
Fire Retardant ABS
COLOR Green
CONFIGURATION 3 standard banana jack inputs, Brass Grounding Pin, 2 FR ABS Spades
PGC-015G GREEN 15 FOOT GROUND CORD
LENGTH 15 feet (4.6 meters)
RESISTOR One megohm (±10%) resistor molded into snap connection
COLOR
Green
PWS-620 - CUFF ASSEMBLY
CONSTRUCTION Made from jewelry quality stainless steel, non-rusting, tested to MIL STD 202 Method 101
THICKNESS 3.5mm, average weight 33 grams
Manufactured to 130mm circumference with 5 10mm nylon expansion l links
ELECTRICAL PROPERTIES Outer band: insulative at 500V per unit millimeter, coating is polyurethane based polymer
Inner band: Conductive - <1.0x104
QUALITY CONTROL  Each band is date and lot coded to total quality control and auditing
ELASTICITY Expansion ratio 1.5:1
SNAP/SIZE 4mm post snap for ground cord, non rusting, tested to MIL STD 202 Method 101
COLOR Black
MARKINGS Prostat logo
MEETS OR EXCEEDS DOD-HDBK-263, DOD-STD-1686, EOS/ESD Std. No. 1-1987, EN10015/1
UL LISTED File E 157590
PWS-620 - CORD ASSEMBLY
CORD Heavy Duty, Lightweight construction of Single bundle, laced tensile conductors reinforced with synthetic fibers. Cord Diameter: 0.06" Coil Diameter: 0.26" Alligator clip supplied.
RESISTOR One megohm (±10%) resistor molded into snap connection
GROUND CONNECTION  Standard banana plug
WARRANTY Warranted for One Year against mechanical and electrical defects.
CORD EXTENSION Full extension greater than 13 feet; Working Length greater than 10 feet.
TESTED Provides over 100,000 bending cycles per EOS/ESD-S1.0-1987 procedures.
WARNING: A one-megohm resistor has been molded into the plastic cap on the ground cord fastener. DO NOT REMOVE. If it becomes damaged, replace ground cord immediately. Do not use in areas where the individual may come in contact with electrical circuits exceeding 250 volts.
CAUTION: The Prostat wrist strap is for static control. It will not reduce or increase your risk of receiving electrical shock when using or working on electrical equipment. Follow the same procedures you would use without wrist straps, including:

* Make certain that equipment having a grounding type plug is properly grounded.

* Make certain that you are not in contact with grounded objects other than through the strap.
