PROSTAT ESI-870 Resistance/Resistivity Indicator
SIMPLE, REPEATABLE RESISTIVITY AND RESISTANCE MEASUREMENTS
- LED measurement indictaor.
- Resolution of one (1) order of magnitude.
- Includes two (2) each machined brass, one (1) square resistivity configuration.
- One (1) PUSH to TEST button.
- Battery operated (1 x 9 Volts)
- Indicated in Ohms & Ohms/Square

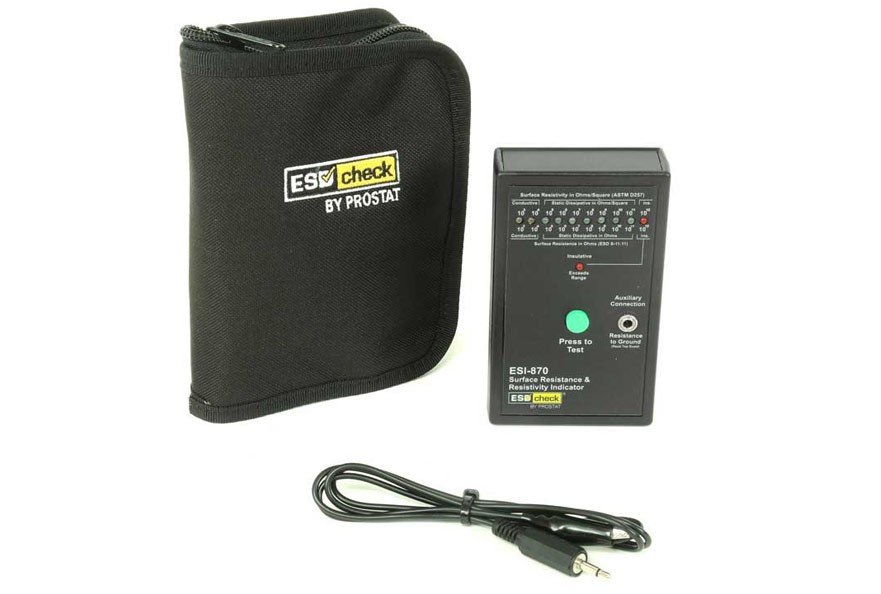

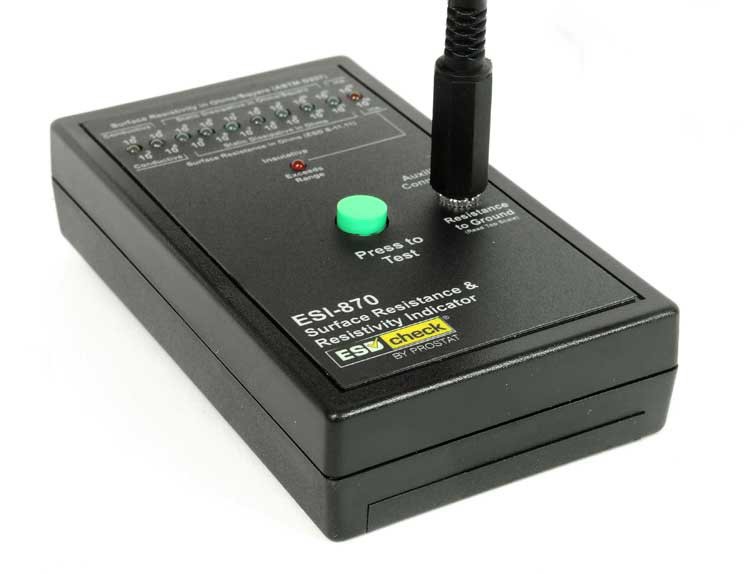

The ESI-870 Micro Kit includes an LED indicating, wide range resistance measurement instrument with broad application flexibility. It indicates surface resistance, surface resistivity and resistance to ground.

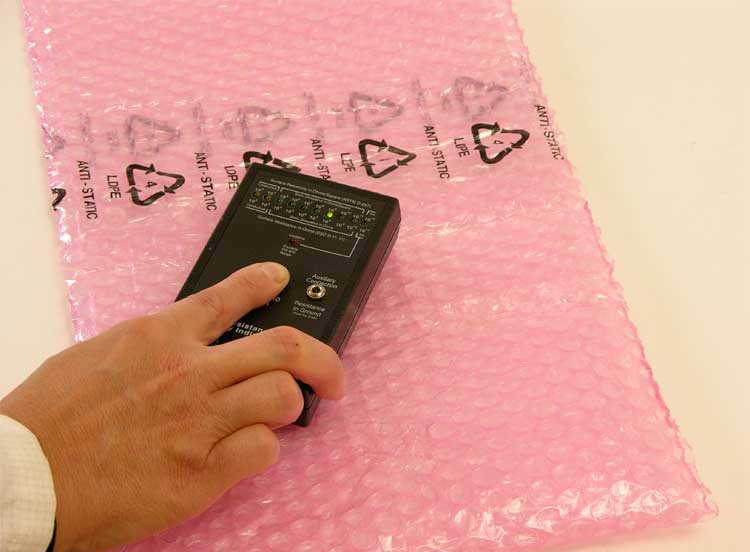

This meter gives simple, repeatable measurements to indicate whether a material is conductive, static dissipative or insulative. The ESI-870 employs parallel bar sensing and features an easy to read LED light scale to measure a wide variety of ESD materials and equipment.
Save on your expenses by using this easy to read ESD test equipment instead of hiring outside help. Our quality products provide you with reliable results that you can trust. Avoid damage to your working materials, make sure they are safe, and secure with this useful tool.
When working with hardware or electrical components you want to ensure that you are using the proper ESD tools to protect it. Left unprotected your electrical materials are subject to being damaged beyond repair. To protect your items and successful operate on them, prevention is the key.
ESD testing equipment allows you to properly evaluate what is going to help prevent damage to your electronics and an appropriate plan of action. In addition to our ESD test equipment we also provide you with the option to purchaseElectrostatic Meter tools.
| TEST VOLTAGE & CURRENT | Nominal 9 volts and 0.006 µA to 1.0 mA |
| POWER | One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22) |

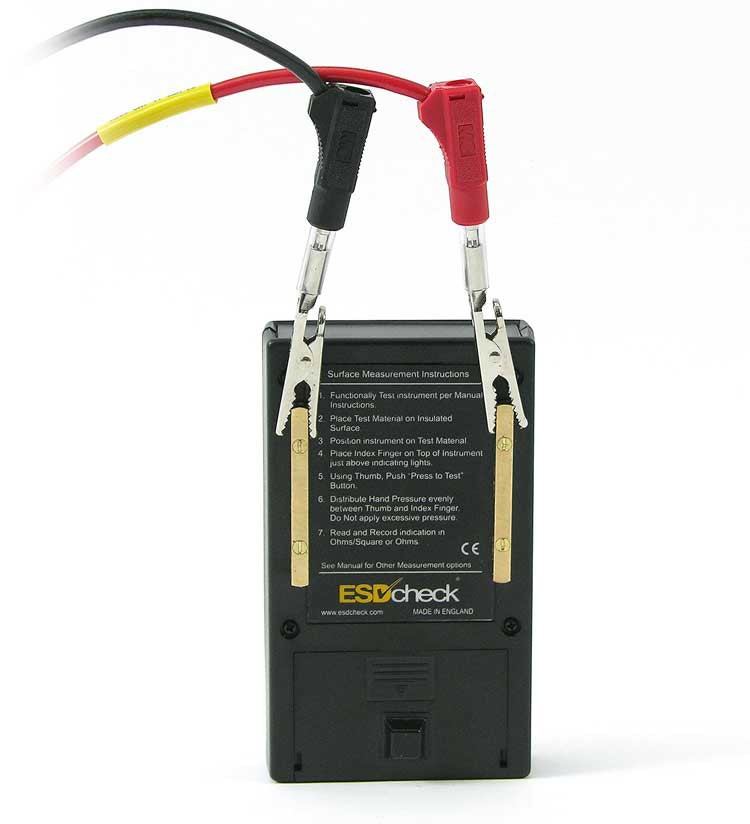

| ELECTRODES | 2 each Machined Brass, One (1) Square Resistivity configuration |
| OVERALL ACCURACY | ± 10% |
| CHANGEOVER POINT ACCURACY | ± 1/2 decade |
| RESOLUTION | One order of magnitude |

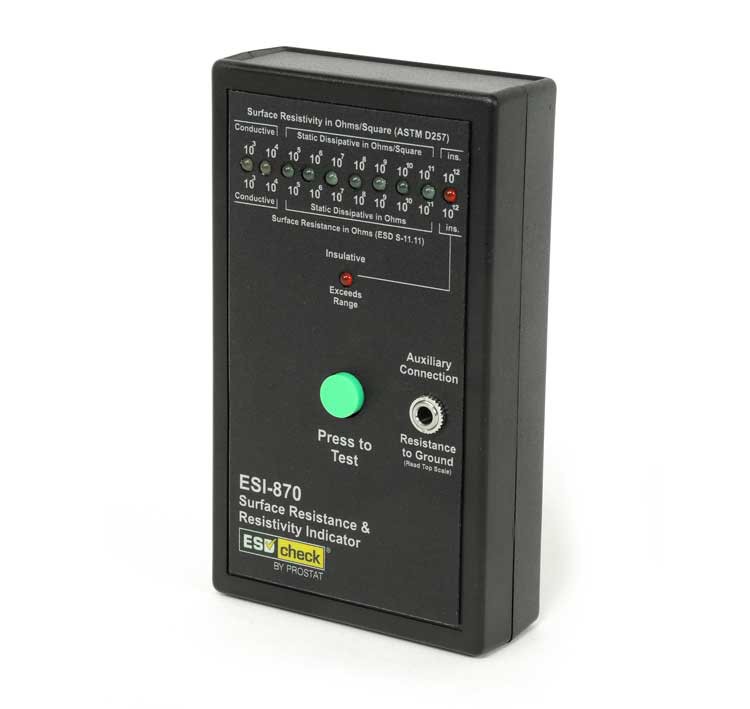

| LED MEASUREMENT INDICATIONS | 11 LED's with Dual scales: 103 to 1012 Ohms/square per ASTM 257 in one decade increments 102 to 1011 Ohms per S11.11 in one decade increments Over range indicator light for "Insulative" surfaces, i.e., >1012 Ohms/square or >1011 Ohms. |

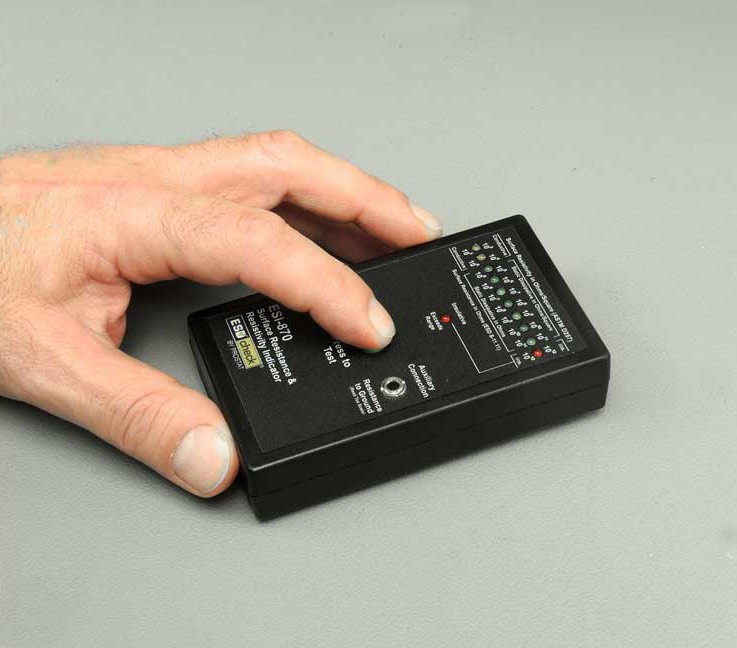

| OPERATION CONTROL | One (1) PUSH to TEST Button |
| OPERATION RANGE | 40ºF to 120ºF (5ºC to 49ºC) |
| STORAGE TEMPERATURE | -15ºC to 60ºC (5ºF to 140ºF), Relative Humidity: 0% to 90% |
| BATTERY LIFE | 40 hours typical |
| DIMENSIONS | 115 mm x 69 mm x 26 mm |
| WEIGHT | 6 oz. |
| Order code | Type | Place an order |
|---|---|---|
| ESI-870 | Resistance/Resistivity Indicator | {ESI-870} |
