PROSTAT CPM-760A Portable 6 Inch Charge Plate Monitor
Measure charge movement and decay time across materials
- Designed for measuring charge movement and decay time of ESD controlled materials.
- The set consists of two stainless steel electrodes and two very high resistance test leads selected for this application.
- The high resistance leads minimize leakage during the test cycle and are equipped with male banana plugs.
Charge Plate Monitor in Accordance with ANSI/ESD STM3.1 and ANSI/ESD SP3.3

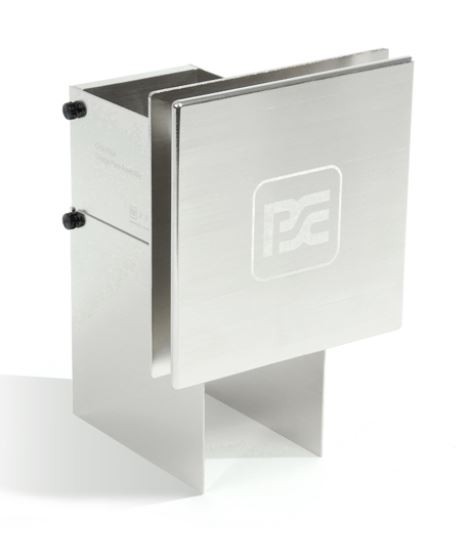

The CPM-760A is a 6" x 6" (15 cm x 15 cm) portable charge plate monitor assembly with a capacitance of 20pF ± 2 pF, meeting the requirements of ANSI/ESD STM3.1 and ANSI/ESD SP3.3.
Use it with the PFM-711A or PFM-711B Electrostatic Field Meters

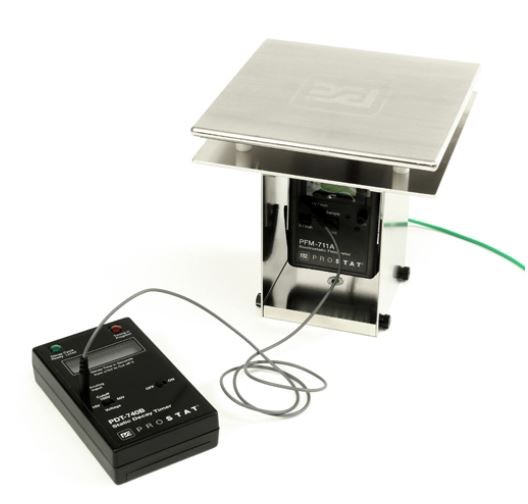

The CPM-760A is intended for use with the Prostat PFM-711A or PFM-711B Field Meters, PCS-730 or PCS-730B Electrostatic Chargers and the PDT-740B Static Decay Timer.

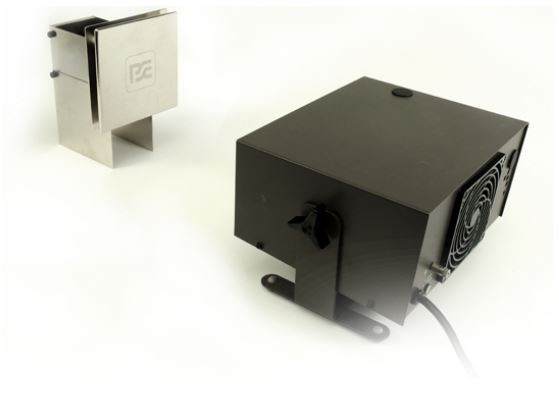

For Both Overhead and Benchtop Ionizers
This handy accessory is designed to perform very accurate performance audits on overhead ionizers and room ionization systems. Used with extension wings, the CPM-760A is also used to evaluate and balance bench top ionizers.
It may be used for evaluating voltage generation and static decay performance of personnel, footwear, flooring, chairs, carts and other equipment and materials.
Designed for Portability and easy Storage

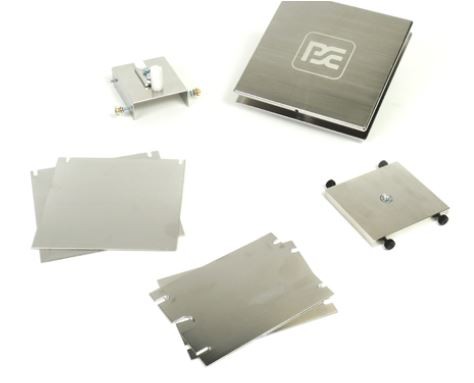

The CPM-760A is completely collapsible for compact storage in any of the Prostat ESD Auditing Kit Series. The Charge Plate Monitor assembles in minutes making it ideal for transportation.
CPM-760A Charge Plate Monitor Specifications
| Construction | |
| Isolated Plate | Electro-plated aluminum plate 6.0" x 6.0" (15 cm x 15 cm) |
| Ground Plate | Plated aluminum sheet 6.0" x 6.0" (15 cm x 15 cm) |
| Plate Spacing | Approximately 0.63” between isolated and ground plates. Plate spacers made from machined virgin, white Teflon® Rod |
| Support | Stored disassembled, plated aluminum sheet and steel lower stabilizing block |
| Assembly | Assembled with machine cap screws |
| Performance | |
| Capacitance | Parallel Plate Capacitance 20 picofarads (pF) ±2 pF |
| Range | 0 to ± > 5 kV at a plate separation of 0.63” |
| Accuracy | ±5% 0 to 1,000 Volts |
| Charge Retention | 5 Minute Decay when charged to 1kV, floating plate voltage decays less than 5% (< 50 @ 50% Rh: volts) over a 5 minute period |
| Calibration | Accomplished via adjustable instrument saddle and grounding device |
| Grounding | Via snap fastener of PFM-711A or PFM-711B and meter saddle assembly |
| Physical | |
| Assembly Height | 6.0” (15 cm) high in vertical test configuration 9.0” (22.86 cm) high in horizontal test configuration; center of plate 6.0” (15 cm) from worksurface |
| Weight | 2.5 lbs (1.13 kg) |
| Order code | Type | Place an order |
|---|---|---|
| CPM-760A | Portable 6 Inch Charge Plate Monitor | {CPM-760A} |
