PCB Assembly Fixtures

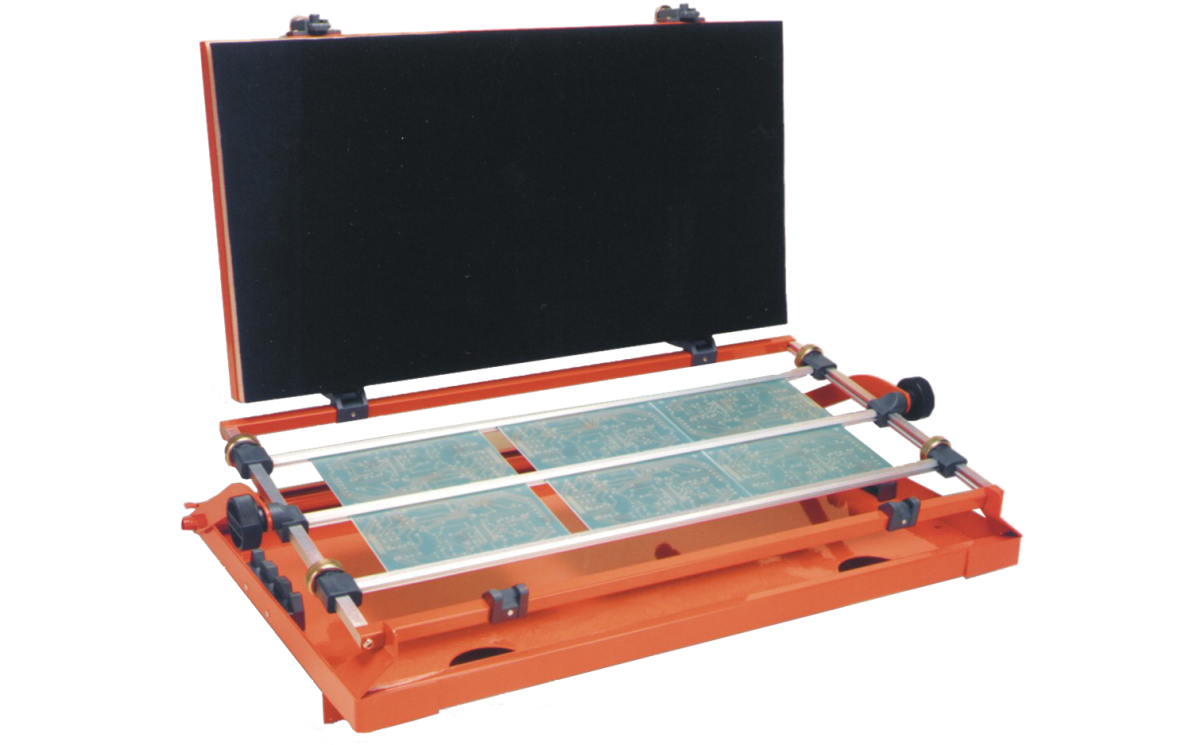

A professional line of assembly jigs for PCB.s, designed to simplify placing and soldering of electronic components. PCSA1,2,4 are supplied with central and two sliding rails as standards. Additional rails may be added to accommodate a larger number of small boards. The frame and lid assembly may be detached from the mounting base. After mounting the components on the PCB.s , the foam back lid is attached and closed, and the whole assembly is lifted and rotated for soldering. An ingenious design of the base permit an adjustable working angle on both side of the PCB.s. The jig is varnished steel, and the component pressing foam is in conductive material.
| Order code | Type | Place an order |
|---|---|---|
| 7915.599 | PCSA1 PCB’ s holder, max. working dimensions 270 x 220mm | {7915.599} |
| 7915.601 | PCSA2 PCB’ s holder, max. working dimensions 500 x 220mm | {7915.601} |
| 7915.605 | PCSA4 PCB’ s holder, max. working dimensions 500 x 350mm | {7915.605} |
| 7915.610 | Additional sliding rail for PCSA1 | {7915.610} |
| 7915.612 | Additional sliding rail for PCSA2 and PCSA4 | {7915.612} |
