P Series
P SERIES (SHP-P / SHP-PM HANDPIECES / TMT-2000SP STATIONS / METCAL/OKI PS-900 / MFR-PS1100 / MFR-PS2200 / MFR-PS1K / MFR-PS2K STAIONS)
P SERIES (SHP-P / SHP-PM HANDPIECES / TMT-2000SP STATIONS / METCAL/OKI PS-900 / MFR-PS1100 / MFR-PS2200 / MFR-PS1K / MFR-PS2K STAIONS)
P SERIES - STANDARD TIPS FOR TMT-2000S, MFR SYSTEMS
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| P60BV010 | {P60BV010} | P75BV010 | {P75BV010} | P80BV010 | {P80BV010} | Bevel 1.00mm (0.04) | |||
| P60BV030 | {P60BV030} | P75BV030 | {P75BV030} | P80BV030 | {P80BV030} | Bevel 45° 3.00mm (0.12") | |||
| P60C004 | {P60C004} | P75C004 | {P75C004} | P80C004 | {P80C004} | Conical 0.40mm (0.016") | |||
| P60C010 | {P60C010} | P75C010 | {P75C010} | P80C010 | {P80C010} | Conical 1.00mm (0.04") | |||
| P60CH012 | {P60CH012} | P75CH012 | {P75CH012} | P80CH012 | {P80CH012} | Chisel 30° 1.20mm (0.047") | |||
| P60CH016 | {P60CH016} | P75CH016 | {P75CH016} | P80CH016 | {P80CH016} | Chisel 30° 1.60mm (0.06") | |||
| P60CH024 | {P60CH024} | P75CH024 | {P75CH024} | P80CH024 | {P80CH024} | Chisel 30° 2.40mm (0.09") | |||
| P60CH032 | {P60CH032} | P75CH032 | {P75CH032} | P80CH032 | {P80CH032} | Chisel 30° 3.20mm (0.13") | |||
| P60CH052 | {P60CH052} | P75CH052 | {P75CH052} | P80CH052 | {P80CH052} | Chisel 30° 5.20mm (0.20") | |||
| P60K047 | {P60K047} | P75K047 | {P75K047} | P80K047 | {P80K047} | Knife 4.70mm (0.185") | |||
| P60WV020 | {P60WV020} | P75WV020 | {P75WV020} | P80WV020 | {P80WV020} | Hoof w/Dent 45° 2.00mm (0.08") | |||
| P60WV031 | {P60WV031} | P75WV031 | {P75WV031} | P80WV031 | {P80WV031} | Hoof w/Dent 60° 3.10mm (0.122") | |||
| PM60B325 | {PM60B325} | PM75B325 | {PM75B325} | PM80B325 | {PM80B325} | Bent Sharp 30° 0.4mm (0.016") | |||
| PM60BS602 | {PM60BS602} | PM75BS602 | {PM75BS602} | PM80BS602 | {PM80BS602} | Bevel 60° 1.8mm (0.07") | |||
| PM60BV350 | {PM60BV350} | PM75BV350 | {PM75BV350} | PM80BV350 | {PM80BV350} | Bevel 60° 1.78mm (0.07") | |||
| PM60C300 *STP-CNL04 |
{PM60C300} | PM75C300 *SFP-CNL04 |
{PM75C300} | PM80C300 *SCP-CNL04 |
{PM80C300} | Conical 0.40mm (0.016") | |||
| PM60C301 *STP-CN05 |
{PM60C301} | PM75C301 *SFP-CN05 |
{PM75C301} | PM80C301 *SCP-CN05 |
{PM80C301} | Conical 0.5mm (0.02") | |||
| PM60CB225 | {PM60CB225} | PM75CB225 | {PM75CB225} | PM80CB225 | {PM80CB225} | Chisel Bent 30° 1.78mm (0.07") | |||
| PM60CB226 * STP-CHB15 |
{PM60CB226} | PM75CB226 *SFP-CHB15 |
{PM75CB226} | PM80CB226 *SCP-CHB15 |
{PM80CB226} | Chisel Bent 30° 1.5mm (0.06") | |||
| PM60CH175 *STP-CH25 |
{PM60CH175} | PM75CH175 *SFP-CH25 |
{PM75CH175} | PM80CH175 *SCP-CH25 |
{PM80CH175} | Chisel 30° 2.5mm (0.10") | |||
| PM60CH176 *STP-CH20 |
{PM60CH176} | PM75CH176 *SFP-CH20 |
{PM75CH176} | PM80CH176 *SCP-CH20 |
{PM80CH176} | Chisel 30° 1.78mm (0.07") | |||
| PM60CH177 *STP-CH15 |
{PM60CH177} | PM75CH177 *SFP-CH15 |
{PM75CH177} | PM80CH177 *SCP-CH15 |
{PM80CH177} | Chisel 30° 1.5mm (0.06") | |||
| PM60CH178 *STP-CH10 |
{PM60CH178} | PM75CH178 *SFP-CH10 |
{PM75CH178} | PM80CH178 *SCP-CH10 |
{PM80CH178} | Chisel 30° 1.0mm (0.04") | |||
| PM60CH179 | {PM60CH179} | PM75CH179 | {PM75CH179} | PM80CH179 | {PM80CH179} | Chisel 30° 1.0mm (0.04") | |||
| PM60CH180 *STP-CH30 |
{PM60CH180} | PM75CH180 *SFP-CH30 |
{PM75CH180} | PM80CH180 *SCP-CH30 |
{PM80CH180} | Chisel 90° 3.0mm (0.12") | |||
| PM60CH181 | {PM60CH181} | PM75CH181 | {PM75CH181} | PM80CH181 | {PM80CH181} | Chisel 90° 3.0mm (0.12") | |||
| PM60CH250 *STP-CH50 |
{PM60CH250} | PM75CH250 *SFP-CH50 |
{PM75CH250} | PM80CH250 *SCP-CH50 |
{PM80CH250} | Chisel Extra Large 5.0mm (0.20") | |||
| PM60CP200 | {PM60CP200} | PM75CP200 | {PM75CP200} | PM80CP200 | {PM80CP200} | Chisel 30° 2.5mm (0.10") | |||

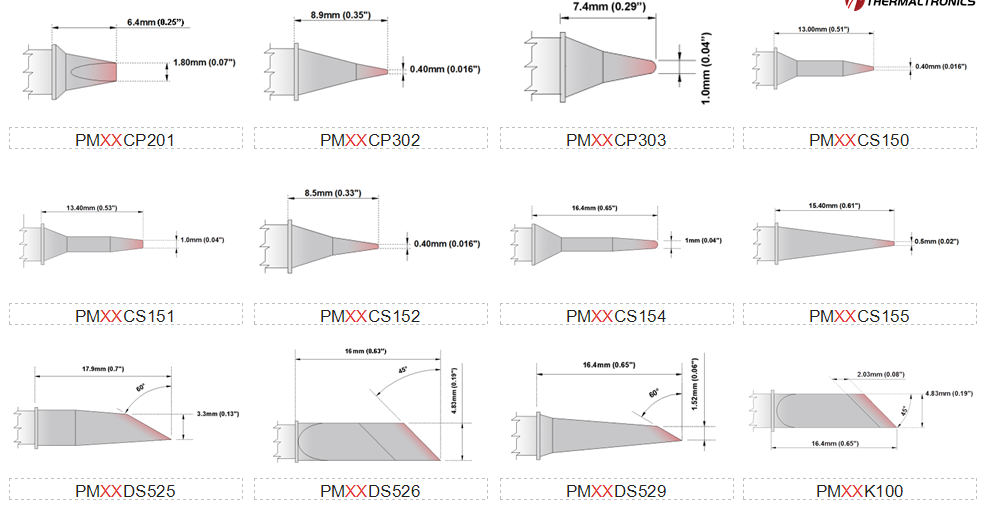

| PM60CP201 | {PM60CP201} | PM75CP201 | {PM75CP201} | PM80CP201 | {PM80CP201} | Chisel 30° 1.80mm (0.07") | |||
| PM60CP302 *STP-CN04 |
{PM60CP302} | PM75CP302 *SFP-CN04 |
{PM75CP302} | PM80CP302 *SCP-CN04 |
{PM80CP302} | Conical 0.40mm (0.016") | |||
| PM60CP303 | {PM60CP303} | PM75CP303 | {PM75CP303} | PM80CP303 | {PM80CP303} | Conical Sharp 1.0mm (0.04") | |||
| PM60CS150 | {PM60CS150} | PM75CS150 | {PM75CS150} | PM80CS150 | {PM80CS150} | Conical Sharp 0.4mm (0.016") | |||
| PM60CS151 | {PM60CS151} | PM75CS151 | {PM75CS151} | PM80CS151 | {PM80CS151} | Conical Sharp 1.0mm (0.04") | |||
| PM60CS152 | {PM60CS152} | PM75CS152 | {PM75CS152} | PM80CS152 | {PM80CS152} | Conical Sharp 0.4mm (0.016") | |||
| PM60CS154 | {PM60CS154} | PM75CS154 | {PM75CS154} | PM80CS154 | {PM80CS154} | Conical Sharp 1.0mm (0.04") | |||
| PM60CS155 | {PM60CS155} | PM75CS155 | {PM75CS155} | PM80CS155 | {PM80CS155} | Conical Sharp 0.5mm (0.02") | |||
| PM60DS525 *STP-DRH35 |
{PM60DS525} | PM75DS525 *SFP-DRH35 |
{PM75DS525} | PM80DS525 *SCP-DRH35 |
{PM80DS525} | Hoof 60° 3.3mm (0.13") | |||
| PM60DS526 * STP-DRK50 |
{PM60DS526} | PM75DS526 *SFP-DRK50 |
{PM75DS526} | PM80DS526 *SCP-DRK50 |
{PM80DS526} | Knife 4.83mm (0.19), Increased Tin Area 5.84mm (0.23") | |||
| PM60DS529 *STP-DRH15 |
{PM60DS529} | PM75DS529 *SFP-DRH15 |
{PM75DS529} | PM80DS529 *SCP-DRH15 |
{PM80DS529} | Hoof 60° 1.52mm (0.06") | |||
| PM60K100 *STP-DRK50 |
{PM60K100} | PM75K100 *SFP-DRK50 |
{PM75K100} | PM80K100 *SCP-DRK50 |
{PM80K100} | Hoof 4.83mm (0.19"), Tin Area | |||
| PM60LB125 *RTP-BL1 |
{PM60LB125} | PM75LB125 *RFP-BL1 |
{PM75LB125} | PM80LB125 *RCP-BL1 |

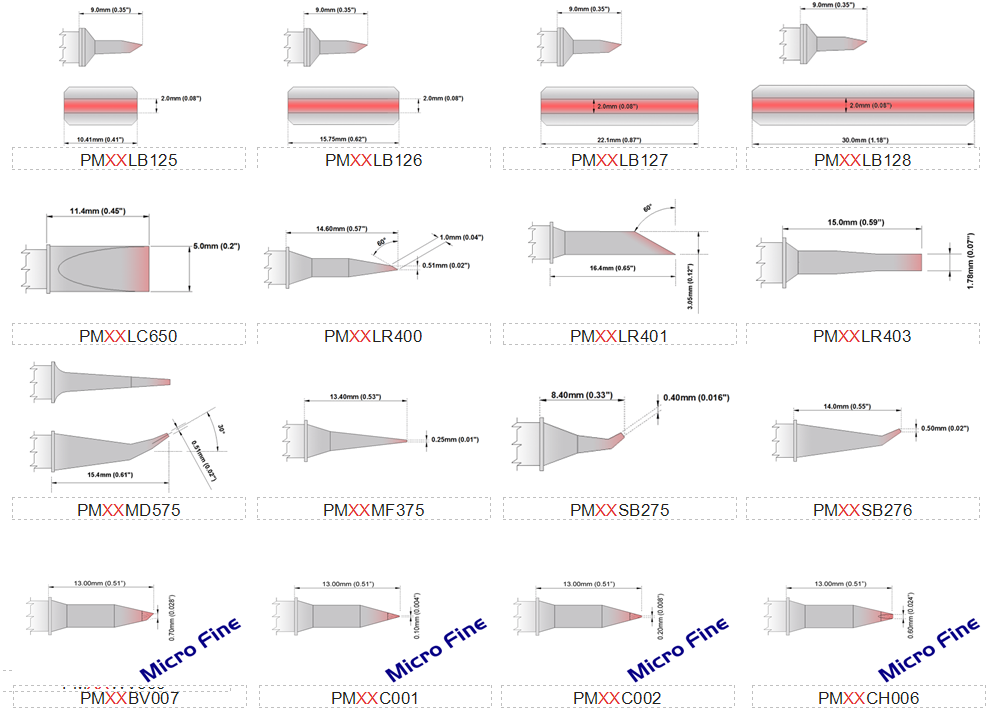

{PM80LB125} | Blade Tip 2.00mm (0.08") | |||
| PM60LB126 *RTP-BL2 |
{PM60LB126} | PM75LB126 *RFP-BL2 |
{PM75LB126} | PM80LB126 *RCP-BL2 |
{PM80LB126} | Blade Tip 3.10mm (0.122") | |||
| PM60LB127 *RTP-BL3 |
{PM60LB127} | PM75LB127 *RFP-BL3 |
{PM75LB127} | PM80LB127 *RCP-BL3 |
{PM80LB127} | Blade Tip 3.3mm (0.13") | |||
| PM60LB128 | {PM60LB128} | PM75LB128 | {PM75LB128} | N/A | N/A | Blade Tip 1.52mm (0.06") | |||
| PM60LC650 | {PM60LC650} | PM75LC650 | {PM75LC650} | PM80LC650 | {PM80LC650} | Chisel Extra Large 3.05mm (0.12") | |||
| PM60LR400 *STP-BVL10, STP-DRH610 |
{PM60LR400} | PM75LR400 *SFP SFP- -BVL10, DRH610 |
{PM75LR400} | PM80LR400 *SCP SCP- -DRH610 |
{PM80LR400} | Bevel 60° Long Reach 1.0mm (0.04") | |||
| PM60LR401 | {PM60LR401} | PM75LR401 | {PM75LR401} | PM80LR401 | {PM80LR401} | Hoof Long Reach 60° 3.05mm (0.12") | |||
| PM60LR403 *STP-CHL20 |
{PM60LR403} | PM75LR403 *SFP-CHL20 |
{PM75LR403} | PM80LR403 *SCP-CHL20 |
{PM80LR403} | Chisel 60° Long Reach 1.78mm (0.07") | |||
| PM60MD575 *STP-DRH05 |
{PM60MD575} | PM75MD575 *SFP-DRH05 |
{PM75MD575} | PM80MD575 *SCP-DRH05 |
{PM80MD575} | Hook Long 30° Fine 0.51mm (0.02") | |||
| PM60MF375 | {PM60MF375} | PM75MF375 | {PM75MF375} | PM80MF375 | {PM80MF375} | Blade Tip 10.41mm (0.41") | |||
| PM60SB275 *STP-CNB04 |
{PM60SB275} | PM75SB275 *SFP-CNB04 |
{PM75SB275} | PM80SB275 *SCP-CNB04 |
{PM80SB275} | Blade Tip 15.75mm (0.62") | |||
| PM60SB276 *STP-CNB05 |
{PM60SB276} | PM75SB276 *SFP-CNB05 |
{PM75SB276} | PM80SB276 *SCP-CNB05 |
{PM80SB276} | Blade Tip 22.1 mm (0.87") | |||
| PM60WV300 | {PM60WV300} | PM75WV300 | {PM75WV300} | PM80WV300 | {PM80WV300} | Blade Tip 30.00 mm (1.18") | |||
* Original Part #
P SERIES - MICRO FINE TIPS
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| PM6CH006 | {PM6CH006} | PM7CH006 | {PM7CH006} | PM8CH006 | {PM8CH006} | Chisel 30° 0.6mm (0.024"), Micro Fiine, új!!! | |||

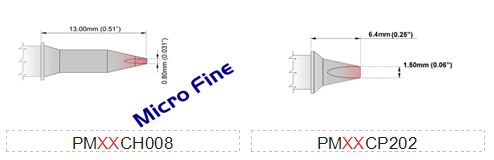

| PM6CH008 | {PM6CH008} | PM7CH008 | {PM7CH008} | PM8CH008 | {PM8CH008} | Chisel 30° 0.8mm (0.031"), Micro Fiine, új!!! | |||
| PM6C001 | {PM6C001} | PM7C001 | {PM7C001} | PM8C001 | {PM8C001} | Conical 0.10mm (0.004"), Micro Fiine, új!!! | |||
| PM6C002 | {PM6C002} | PM7C002 | {PM7C002} | PM8C002 | {PM8C002} | Conical 0.20mm (0.008"), Micro Fiine, új!!! | |||
| PM6BV007 | {PM6BV007} | PM7BV007 | {PM7BV007} | PM8BV007 | {PM8BV007} | Bevel 0.7mm (0.028"), Micro Fiine, új!!! | |||
