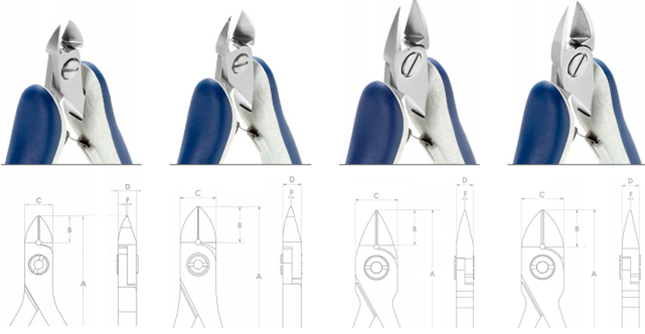

Oval Cutters
- Small robust, slim shape, and optimum balance between durability and accessibility
- Large strong and durable, for intensive cutting operations
- Extra-Large very strong and durable, for intensive cutting operations
- Extra-Large Rounded extremely strong and durable with rounded head, for intensive cutting operations
| Art.no. |
Type | A (mm) |
B (mm) |
C (mm) |
D (mm) |
F (mm) |
Cutting Edges |
| E5140 | Small | 125 | 10 | 10 | 6,4 | 0,5 | Semi- Flush |
| E5141 | Small | 125 | 10 | 10 | 6,4 | 0,5 | Flush |
| E5142 | Small | 125 | 10 | 10 | 6,4 | 0,5 | Full- Flush |
| E5150 | Large | 125 | 12,5 | 12,5 | 6,4 | 0,5 | Semi- Flush |
| E5151 | Large | 125 | 12,5 | 12,5 | 6,4 | 0,5 | Flush |
| E5152 | Large | 125 | 12,5 | 12,5 | 6,4 | 0,5 | Full- Flush |
| E5160 | Extra Large | 130 | 14 | 16 | 6,4 | 0,5 | Semi- Flush |
| E5161 | Extra Large | 130 | 14 | 16 | 6,4 | 0,5 | Flush |
| E5162 | Extra Large | 130 | 14 | 16 | 6,4 | 0,5 | Full- Flush |
| E5160L | Extra Large Rounded | 130 | 14 | 16 | 6,4 | 0,5 | Semi- Flush |
| E5161L | Extra Large Rounded | 130 | 14 | 16 | 6,4 | 0,5 | Flush |
| E5162L | Extra Large Rounded | 130 | 14 | 16 | 6,4 | 0,5 | Full- Flush |
| CUTTING CAPACITY | |||||||
| Order code | Soft (mm) |
Soft (AGW) |
Medium (mm) |
Medium (AGW) | Hard (mm) |
Hard (mm) (AGW) |
Place an order |
| E5140 | 0.2-1.2 | 32-17 | 0.1-1.0 | 38-18 | 0.3-0.6 | 48-23 | {E5140} |
| E5141 | 0.1-1.2 | 38-17 | 0.1-1.0 | 38-18 | - | - | {E5141} |
| E5142 | 0.1-1.0 | 38-18 | 0.1-0.8 | 38-20 | - | - | {E5142} |
| E5150 | 0.3-1.6 | 29-14 | 0.1-1.3 | 38-16 | 0.03-0.7 | 48-21 | {E5150} |
| E5151 | 0.2-1.6 | 34-14 | 0.1-1.2 | 38-17 | - | - | {E5151} |
| E5152 | 0.2-1.2 | 32-17 | 0.1-1.0 | 38-18 | - | - | {E5152} |
| E5160 | 0.4-2.0 | 26-12 | 0.3-1.6 | 29-14 | 0.05-0.9 | 44-19 | {E5160} |
| E5161 | 0.3-1.6 | 29-14 | 0.3-1.5 | 29-15 | - | - | {E5161} |
| E5162 | 0.3-1.6 | 29-14 | 0.3-1.1 | 29-17 | - | - | {E5162} |
| E5160L | 0.5-3.0 | 24-09 | 0.4-2.5 | 26-10 | 0.06-1.1 | 42-17 | {E5160L} |
| E5161L | 0.4-2.5 | 26-10 | 0.4-2.3 | 26-11 | - | - | {E5161L} |
| E5162L | 0.4-2.5 | 26-10 | 0.4-2.3 | 26-12 | - | - | {E5162L} |
