M Series
M SERIES (TMT-9000S STATIONS / METCAL/OKI MX-RM3E / MX-H1-AV HANDPIECES / MX-500 STATIONS)
M SERIES (TMT-9000S STATIONS / METCAL/OKI MX-RM3E / MX-H1-AV HANDPIECES / MX-500 STATIONS)
M SERIES (TMT-9000S STATIONS / METCAL/OKI MX-RM3E / MX-H1-AV HANDPIECES / MX-500 STATIONS)
M SERIES (TMT-9000S STATIONS / METCAL/OKI MX-RM3E / MX-H1-AV HANDPIECES / MX-500 STATIONS)

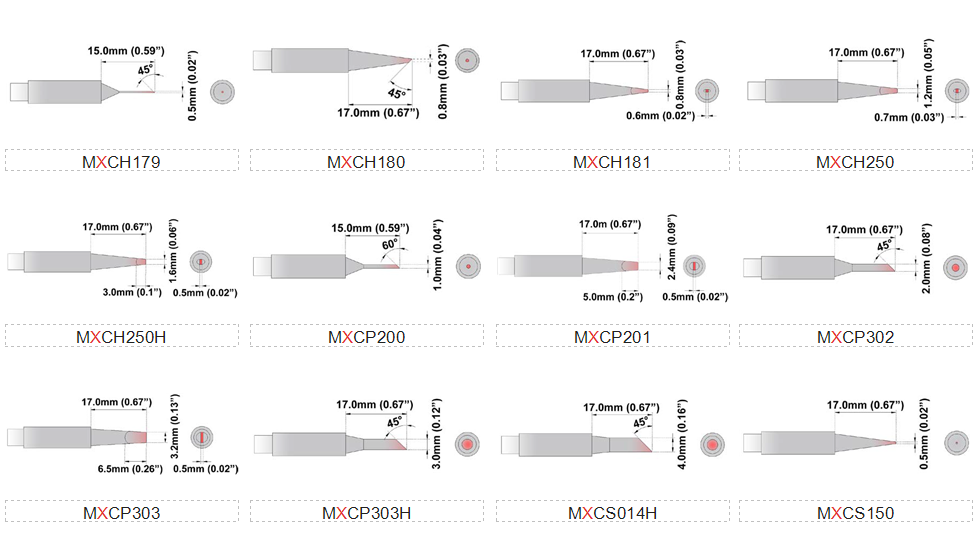

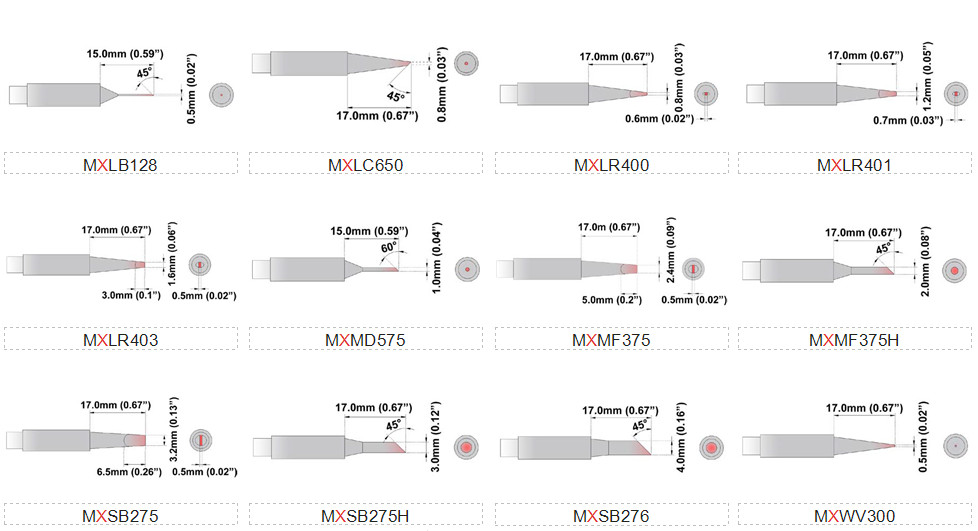

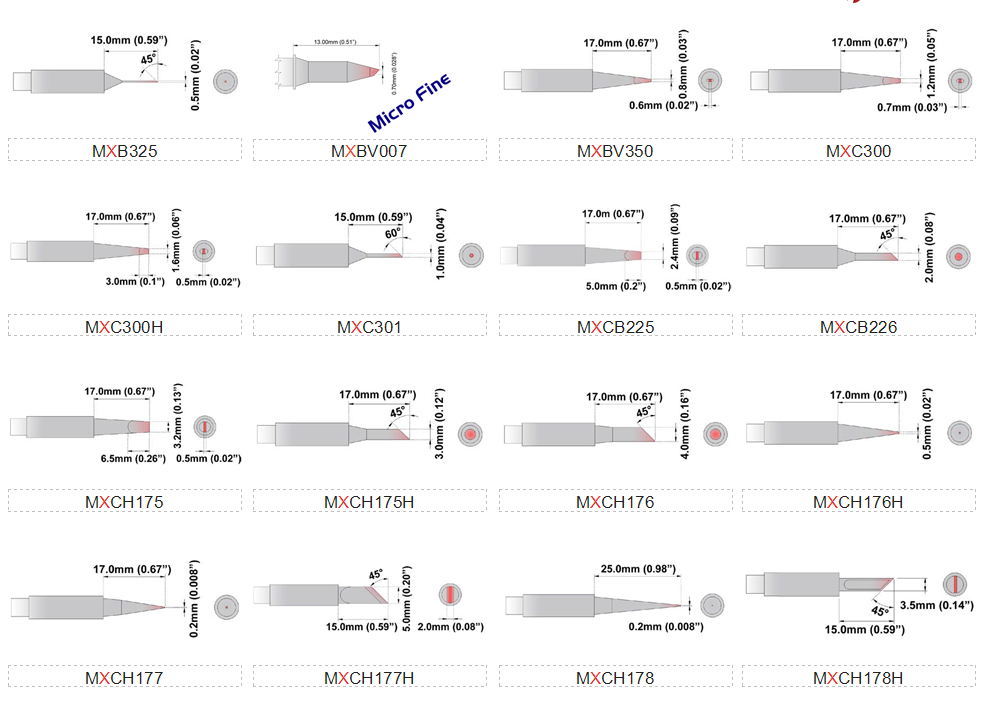

M SERIES - STANDARD TIPS FOR TMT-9000S
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | P = Optimised geometry for best thermal performance | ||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| M6B325 *STTC-040 |
{M6B325} | M7B325 *STTC-140 |
{M7B325} | M8B325 *STTC-840 |
{M8B325} | Hajlított, hegyes 30° 0.4mm (0.016") | |||
| M6BS602 *STTC-047P |
{M6BS602} | M7BS602 *STTC-147P |
{M7BS602} | M8BS602 *STTC-847P |
{M8BS602} | Bent Sharp 60° 1.8mm (0.07") | |||
| M6BV010 | {M6BV010} | M7BV010 | {M7BV010} | M8BV010 | {M8BV010} | Bevel 60° 1.00mm (0.04") | |||
| M6BV030 | {M6BV030} | M7BV030 | {M7BV030} | M8BV030 | {M8BV030} | Bevel 45° 3.00mm (0.12") | |||
| M6BV350 *STTC-047 |
{M6BV350} | M7BV350 *STTC-147 |
{M7BV350} | M8BV350 *STTC-847 |
{M8BV350} | Bevel 60° 1.78mm (0.07") | |||
| M6C300 *STTC-045 |
{M6C300} | M7C300 *STTC-145 |
{M7C300} | M8C300 *STTC-845 |
{M8C300} | Conical 0.40mm (0.016") | |||
| M6C301 *STTC-016 |
{M6C301} | M7C301 *STTC-116 |
{M7C301} | M8C301 *STTC-816 |
{M8C301} | Conical 0.5mm (0.02") | |||
| M6CB225 *STTC-098 |
{M6CB225} | M7CB225 *STTC-198 |
{M7CB225} | M8CB225 *STTC-898 |
{M8CB225} | Chisel Bent 30° 1.78mm (0.07") | |||
| M6CB226 *STTC-099 |
{M6CB226} | M7CB226 *STTC-199 |
{M7CB226} | M8CB226 *STTC-899 |
{M8CB226} | Chisel Bent 30° 1.5mm (0.06") | |||
| M6CH012 | {M6CH012} | M7CH012 | {M7CH012} | M8CH012 | {M8CH012} | Chisel 30° 1.20mm (0.047") new!!! | |||
| M6CH052 | {M6CH052} | M7CH052 | {M7CH052} | M8CH052 | {M8CH052} | Chisel 30° 5.20mm (0.20") new!!! | |||
| M6CH175 *STTC-036 |
{M6CH175} | M7CH175 *STTC-136 |
{M7CH175} | M8CH175 *STTC-836 |
{M8CH175} | Chisel 30° 2.5mm (0.10") | |||
| M6CH176 *STTC-037 |
{M6CH176} | M7CH176 *STTC-137 |
{M7CH176} | M8CH176 *STTC-837 |
{M8CH176} | Chisel 30° 1.78mm (0.07") | |||
| M6CH177 *STTC-038 |
{M6CH177} | M7CH177 *STTC-138 |
{M7CH177} | M8CH177 *STTC-838 |
{M8CH177} | Chisel 30° 1.5mm (0.06") | |||
| M6CH178 *STTC-025 |
{M6CH178} | M7CH178 *STTC-125 |
{M7CH178} | M8CH178 *STTC-825 |
{M8CH178} | Chisel 30° 1.0mm (0.04") | |||
| M6CH179 *STTC-025P |
{M6CH179} | M7CH179 *STTC-125P |
{M7CH179} | M8CH179 *STTC-825P |
{M8CH179} | Chisel 30° 1.0mm (0.04") | |||
| M6CH180 *STTC-003 |
{M6CH180} | M7CH180 *STTC-103 |
{M7CH180} | M8CH180 *STTC-803 |
{M8CH180} | Chisel 90° 3.0mm (0.12") | |||
| M6CH181 *STTC-013 |
{M6CH181} | M7CH181 *STTC-113 |
{M7CH181} | M8CH181 *STTC-813 |
{M8CH181} | Chisel 90° 3.0mm (0.12") | |||
| M6CH250 *STTC-017 |
{M6CH250} | M7CH250 *STTC-117 |
{M7CH250} | M8CH250 *STTC-817 |
{M8CH250} | Chisel Extra Large 5.0mm (0.20") | |||
| M6CP200 *STTC-036P |
{M6CP200} | M7CP200 *STTC-136P |
{M7CP200} | M8CP200 *STTC-836P |
{M8CP200} | Chisel 30° 2.5mm (0.10") | |||
| M6CP201 *STTC-037P |
{M6CP201} | M7CP201 *STTC-137P |
{M7CP201} | M8CP201 *STTC-837P |
{M8CP201} | Chisel 30° 1.80mm (0.07") | |||
| M6CP302 *STTC-045P |
{M6CP302} | M7CP302 *STTC-145P |
{M7CP302} | M8CP302 *STTC-845P |
{M8CP302} | Conical Sharp 0.40mm (0.016") | |||
| M6CP303 *STTC-001P |
{M6CP303} | M7CP303 *STTC-101P |
{M7CP303} | M8CP303 *STTC-801P |
{M8CP303} | Conical Sharp 1.0mm (0.04") | |||
| M6CS150 *STTC-006 |
{M6CS150} | M7CS150 *STTC-106 |
{M7CS150} | M8CS150 *STTC-806 |
{M8CS150} | Conical Sharp 0.4mm (0.016") | |||
| M6CS151 *STTC-001 |
{M6CS151} | M7CS151 *STTC-101 |
{M7CS151} | M8CS151 *STTC-801 |
{M8CS151} | Conical Sharp 1.0mm (0.04") | |||
| M6CS152 *STTC-022 |
{M6CS152} | M7CS152 *STTC-122 |
{M7CS152} | M8CS152 *STTC-822 |
{M8CS152} | Conical Sharp 0.4mm (0.016") | |||
| M6CS154 *STTC-007 |
{M6CS154} | M7CS154 *STTC-107 |
{M7CS154} | M8CS154 *STTC-807 |
{M8CS154} | Conical Sharp 1.0mm (0.04") | |||
| M6CS155 *STTC-043 |
{M6CS155} | M7CS155 *STTC-143 |
{M7CS155} | M8CS155 *STTC-843 |
{M8CS155} | Conical Sharp 0.5mm (0.02") | |||
| M6DS525 *SMTC-0147 |
{M6DS525} | M7DS525 *SMTC-1147 |
{M7DS525} | M8DS525 *SMTC-8147 |
{M8DS525} | Hoof 60° 3.3mm (0.13") | |||
| M6DS526 *SMTC-0173 |
{M6DS526} | M7DS526 *SMTC-1173 |
{M7DS526} | M8DS526 *SMTC-8173 |
{M8DS526} | Knife 4.83mm (0.19), Increased Tin Area | |||
| M6DS529 *SMTC-0167 |
{M6DS529} | M7DS529 *SMTC-1167 |
{M7DS529} | M8DS529 *SMTC-8167 |
{M8DS529} | Hoof 60° 1.52mm (0.06") | |||
| M6K047 | {M6K047} | M7K047 | {M7K047} | M8K047 | {M8K047} | Knife 4.70mm (0.185") new!!! | |||
| M6K100 *SMTC-0161 |
{M6K100} | M7K100 *SMTC-1161 |
{M7K100} | M8K100 *SMTC-8161 |
{M8K100} | Knife 4.83mm (0.19"), Tin Area 2.03mm (0.08") | |||
| M6LB125 *SMTC-060 |
{M6LB125} | M7LB125 *SMTC-160 |
{M7LB125} | M8LB125 *SMTC-860 |
{M8LB125} | Blade Tip 10.41mm (0.41") | |||
| M6LB126 *SMTC-061 |
{M6LB126} | M7LB126 *SMTC-161 |
{M7LB126} | M8LB126 *SMTC-861 |
{M8LB126} | Blade Tip 15.75mm (0.62") | |||
| M6LB127 *SMTC-062 |
{M6LB127} | M7LB127 *SMTC-162 |
{M7LB127} | M8LB127 *SMTC-862 |
{M8LB127} | Blade Tip 22.1 mm (0.87") | |||
| M6LB128 | {M6LB128} | M7LB128 | {M7LB128} | N/A | Blade Tip 30.00 mm (1.18") | ||||
| M6LC650 *STTC-065 |
{M6LC650} | M7LC650 *STTC-165 |
{M7LC650} | M8LC650 *STTC-865 |
{M8LC650} | Chisel Extra Large 5.0mm (0.20") | |||
| M6LR400 *STTC-046 |
{M6LR400} | M7LR400 *STTC-146 |
{M7LR400} | M8LR400 *STTC-846 |
{M8LR400} | Bevel Long Reach 60° 1.0mm (0.04") | |||
| M6LR401 *SMTC-0170 |
{M6LR401} | M7LR401 *SMTC-1170 |
{M7LR401} | M8LR401 *SMTC-8170 |
{M8LR401} | Hoof Long Reach 60° 3.05mm (0.12") | |||
| M6LR403 *STTC-042 |
{M6LR403} | M7LR403 *STTC-142 |
{M7LR403} | M8LR403 *STTC-842 |
{M8LR403} | Chisel 60° Long Reach 1.78mm (0.07") | |||
| M6MD575 *SMTC-0172 |
{M6MD575} | M7MD575 *SMTC-1172 |
{M7MD575} | M8MD575 *SMTC-8172 |
{M8MD575} | Hook Long 30° Fine 0.51mm | |||
| M6MF375 *STTC-090 |
{M6MF375} | M7MF375 *STTC-190 |
{M7MF375} | M8MF375 *STTC-890 |
{M8MF375} | Micro Fine 0.25mm (0.01") | |||
| M6SB275 *STTC-026 |
{M6SB275} | M7SB275 *STTC-126 |
{M7SB275} | M8SB275 *STTC-826 |
{M8SB275} | Bent Sharp 30° 0.4mm (0.016") | |||
| M6SB276 *STTC-044 |
{M6SB276} | M7SB276 *STTC-144 |
{M7SB276} | M8SB276 *STTC-844 |
{M8SB276} | Bent Sharp 30° 0.5mm (0.02") | |||
| M6WV020 | {M6WV020} | M7WV020 | {M7WV020} | M8WV020 | {M8WV020} | Hoof w/Dent 45° 2.00mm (0.08") | |||
| M6WV031 | {M6WV031} | M7WV031 | {M7WV031} | M8WV031 | {M8WV031} | Hoof w/Dent 60° 3.10mm (0.122") | |||
| M6WV300 | {M6WV300} | M7WV300 | {M7WV300} | M8WV300 | {M8WV300} | Hoof w/Dent 45° 2.40mm (0.09") | |||
* Original Part #
M SERIES - MICRO FINE TIPS
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| M6CH006 | {M6CH006} | M7CH006 | {M7CH006} | M8CH006 | {M8CH006} | Chisel 30° 0.6mm (0.024"), Micro Fiine | |||
| M6CH008 | {M6CH008} | M7CH008 | {M7CH008} | M8CH008 | {M8CH008} | Chisel 30° 0.8mm (0.031"), Micro Fine | |||
| M6C001 | {M6C001} | M7C001 | {M7C001} | M8C001 | {M8C001} | Conical 0.10mm (0.004"), Micro Fine | |||
| M6C002 | {M6C002} | M7C002 | {M7C002} | M8C002 | {M8C002} | Conical 0.20mm (0.008"), Micro Fine | |||
| M6C004 | {M6C004} | M7C004 | {M7C004} | M8C004 | {M8C004} | Conical 0.40mm (0.016"), Micro Fine | |||
| M6BV007 | {M6BV007} | M7BV007 | {M7BV007} | M8BV007 | {M8BV007} | Bevel 0.7mm (0.028"), Micro Fine | |||
M SERIES - POWER PLUS = HIGH PERFORMANCE, LONGER TIP LIFE
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | Power Plus = High Performance, Long Tip Life | ||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| M6C300H | {M6C300H} | M7C300H | {M7C300H} | M8C300H | {M8C300H} | Conical 0.40mm (0.016"), Power Plus | |||
| M6BV010H | {M6BV010H} | M7BV010H | {M7BV010H} | M8BV010H | {M8BV010H} | Bevel 60° 1.10mm (0.04"), Power Plus new!!! | |||
| M6BV030H | {M6BV030H} | M7BV030H | {M7BV030H} | M8BV030H | {M8BV030H} | Bevel 45° 3.00mm (0.12"), Power Plus new!!! | |||
| M6BV050H | {M6BV050H} | M7BV050H | {M7BV050H} | M8BV050H | {M8BV050H} | Bevel 45° 5.00mm (0.20"), Power Plus new!!! | |||
| M6BV060H | {M6BV060H} | M7BV060H | {M7BV060H} | M8BV060H | {M8BV060H} | Bevel 45° 6.00mm (0.24"), Power Plus new!!! | |||
| M6BVF010H | {M6BVF010H} | M7BVF010H | {M7BVF010H} | M8BVF010H | {M8BVF010H} | Bevel 60° 1.00mm (0.04"), Tin Area Face Only, Power Plus new!!! | |||
| M6BVF050H | {M6BVF050H} | M7BVF050H | {M7BVF050H} | M8BVF050H | {M8BVF050H} | Bevel 45° 5.00mm (0.20"), Tin Area Face Only, Power Plus new!!! | |||
| M6BVF060H | {M6BVF060H} | M7BVF060H | {M7BVF060H} | M8BVF060H | {M8BVF060H} | Bevel 45° 6.00mm (0.24"), Tin Area Face Only, Power Plus new!!! | |||
| M6CB012H | {M6CB012H} | M7CB012H | {M7CB012H} | M8CB012H | {M8CB012H} | Chisel Bent 30° 1.2mm (0.05"), Power Plus new!!! | |||
| M6CH032H | {M6CH032H} | M7CH032H | {M7CH032H} | M8CH032H | {M8CH032H} | Chisel 30° 3.20mm (0.13"), Power Plus new!!! | |||
| M6CH175H | {M6CH175H} | M7CH175H | {M7CH175H} | M8CH175H | {M8CH175H} | Chisel 30° 2.5mm (0.10"), Power Plus | |||
| M6CH176H | {M6CH176H} | M7CH176H | {M7CH176H} | M8CH176H | {M8CH176H} | Chisel 30° 1.78mm (0.07"), Power Plus | |||
| M6CH177H | {M6CH177H} | M7CH177H | {M7CH177H} | M8CH177H | {M8CH177H} | Chisel 30° 1.5mm (0.06"), Power Plus | |||
| M6CH178H | {M6CH178H} | M7CH178H | {M7CH178H} | M8CH178H | {M8CH178H} | Chisel 30° 1.0mm (0.04"), Power Plus | |||
| M6CH250H | {M6CH250H} | M7CH250H | {M7CH250H} | M8CH250H | {M8CH250H} | Chisel Extra Large 5.0mm (0.20"), Power Plus | |||
| M6CP303H | {M6CP303H} | M7CP303H | {M7CP303H} | M8CP303H | {M8CP303H} | Conical Sharp 1.0mm (0.04"), Power Plus | |||
| M6CS014H | {M6CS014H} | M7CS014H | {M7CS014H} | M8CS014H | {M8CS014H} | Conical Sharp 1.4mm (0.055"), Power Plus | |||
| M6CS151H | {M6CS151H} | M7CS151H | {M7CS151H} | M8CS151H | {M8CS151H} | Conical Sharp 1.0mm (0.04"), Power Plus | |||
| M6CS152H | {M6CS152H} | M7CS152H | {M7CS152H} | M8CS152H | {M8CS152H} | Conical Sharp 0.5mm (0.02"), Power Plus | |||
| M6DS023H | {M6DS023H} | M7DS023H | {M7DS023H} | M8DS023H | {M8DS023H} | Hoof 60° 3.10mm (0.122), Power Plus | |||
| M6DS035H | {M6DS035H} | M7DS035H | {M7DS035H} | M8DS035H | {M8DS035H} | Knife 3.50mm (0.138"), Power Plus new!!! | |||
| M6DS526H | {M6DS526H} | M7DS526H | {M7DS526H} | M8DS526H | {M8DS526H} | Knife 4.50mm (0.177"), Increased Tin Area 6.1mm (0.24"), Power Plus | |||
| M6K100H | {M6K100H} | M7K100H | {M7K100H} | M8K100H | {M8K100H} | Knife 4.50mm (0.177"), Power Plus | |||
| M6MF375H | {M6MF375H} | M7MF375H | {M7MF375H} | M8MF375H | {M8MF375H} | Micro Fine 0.25mm (0.01"), Power Plus | |||
| M6SB275H | {M6SB275H} | M7SB275H | {M7SB275H} | M8SB275H | {M8SB275H} | Bent Sharp 30° 0.5mm (0.02"), Power Plus | |||

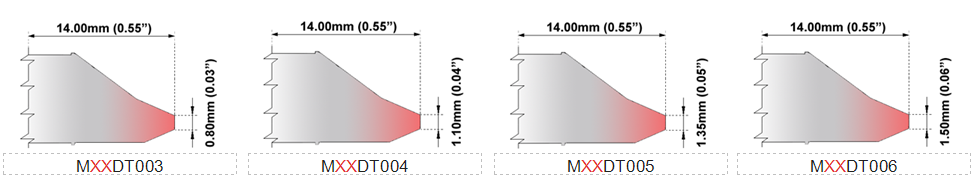

MDT SERIES DESOLDERING TIPS FOR TMT-9000 STATIONS
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| M60DT003 *STDC-003 |
{M60DT003} | M75DT003 *STDC-103 |
{M75DT003} | M80DT003 *STDC-803 |
{M80DT003} | Desoldering Tip - Inner Diameter 0.80mm (0.03") | |||
| M60DT003L *STDC-003L |
{M60DT003L} | M75DT003L *STDC-103L |
{M75DT003L} | M80DT003L *STDC-803L |
{M80DT003L} | Desoldering Tip - Inner Diameter 0.80mm (0.03"), Long Reach new!! | |||
| M60DT004 *STDC-004 |
{M60DT004} | M75DT004 *STDC-104 |
{M75DT004} | M80DT004 *STDC-804 |
{M80DT004} | Desoldering Tip - Inner Diameter 1.10mm (0.04") | |||
| M60DT004L *STDC-004L |
{M60DT004L} | M75DT004L *STDC-104L |
{M75DT004L} | M80DT004L *STDC-804L |
{M80DT004L} | Desoldering Tip - Inner Diameter 1.10mm (0.04"), Long Reach new!!! | |||
| M60DT005 *STDC-005 |
{M60DT005} | M75DT005 *STDC-105 |
{M75DT005} | M80DT005 *STDC-805 |
{M80DT005} | Desoldering Tip - Inner Diameter 1.35mm (0.05") | |||
| M60DT005L *STDC-005L |
{M60DT005L} | M75DT005L *STDC-105L |
{M75DT005L} | M80DT005L *STDC-805L |
{M80DT005L} | Desoldering Tip - Inner Diameter 1.35mm (0.05"), Long Reach new!!! | |||
| M60DT006 *STDC-006 |
{M60DT006} | M75DT006 *STDC-106 |
{M75DT006} | M80DT006 *STDC-806 |
{M80DT006} | Desoldering Tip - Inner Diameter 1.50mm (0.06") | |||
| M60DT007 *STDC-007 |
{M60DT007} | M75DT007 *STDC-107 |
{M75DT007} | M80DT007 *STDC-807 |
{M80DT007} | Desoldering Tip - Inner Diameter 2.40mm (0.095") | |||
* Original Part #
MTZ SERIES - TWEEZER TIPS FOR TMT-9000S
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| M60TZ003 | {M60TZ003} | M70TZ003 | {M70TZ003} | M80TZ003 | {M80TZ003} | Micro Fine 0.25mm (0.01") | |||
| M60TZ004 | {M60TZ004} | M70TZ004 | {M70TZ004} | M80TZ004 | {M80TZ004} | Bent 30° Sharp 0.4mm (0.016") | |||
| M60TZ010 | {M60TZ010} | M70TZ010 | {M70TZ010} | M80TZ010 | {M80TZ010} | Conical Sharp 1.0mm (0.04") | |||
| M60TZ010B | {M60TZ010B} | M70TZ010B | {M70TZ010B} | M80TZ010B | {M80TZ010B} | Chisel 1.00mm (0.04") | |||
| M60TZ015 | {M60TZ015} | M70TZ015 | {M70TZ015} | M80TZ015 | {M80TZ015} | Chisel 1.50mm (0.06") | |||
| M60TZ018 | {M60TZ018} | M70TZ018 | {M70TZ018} | M80TZ018 | {M80TZ018} | Long Reach Chisel 1.78mm (0.07") | |||
| M60TZ018B | {M60TZ018B} | M70TZ018B | {M70TZ018B} | M80TZ018B | {M80TZ018B} | Chisel 1.78mm (0.07") | |||
| M60TZ025 | {M60TZ025} | M70TZ025 | {M70TZ025} | M80TZ025 | {M80TZ025} | Knife Tinned area 2.03mm (0.08") | |||
| M60TZ100 | {M60TZ100} | M70TZ100 | {M70TZ100} | M80TZ100 | {M80TZ100} | Blade Tip 10.41mm (0.41") Long | |||
| M60TZ160 | {M60TZ160} | M70TZ160 | {M70TZ160} | M80TZ160 | {M80TZ160} | Blade Tip 15.75mm (0.62") Long | |||
| M60TZ220 | {M60TZ220} | M70TZ220 | {M70TZ220} | M80TZ220 | {M80TZ220} | Blade Tip 22.1mm (0.87") Long | |||
