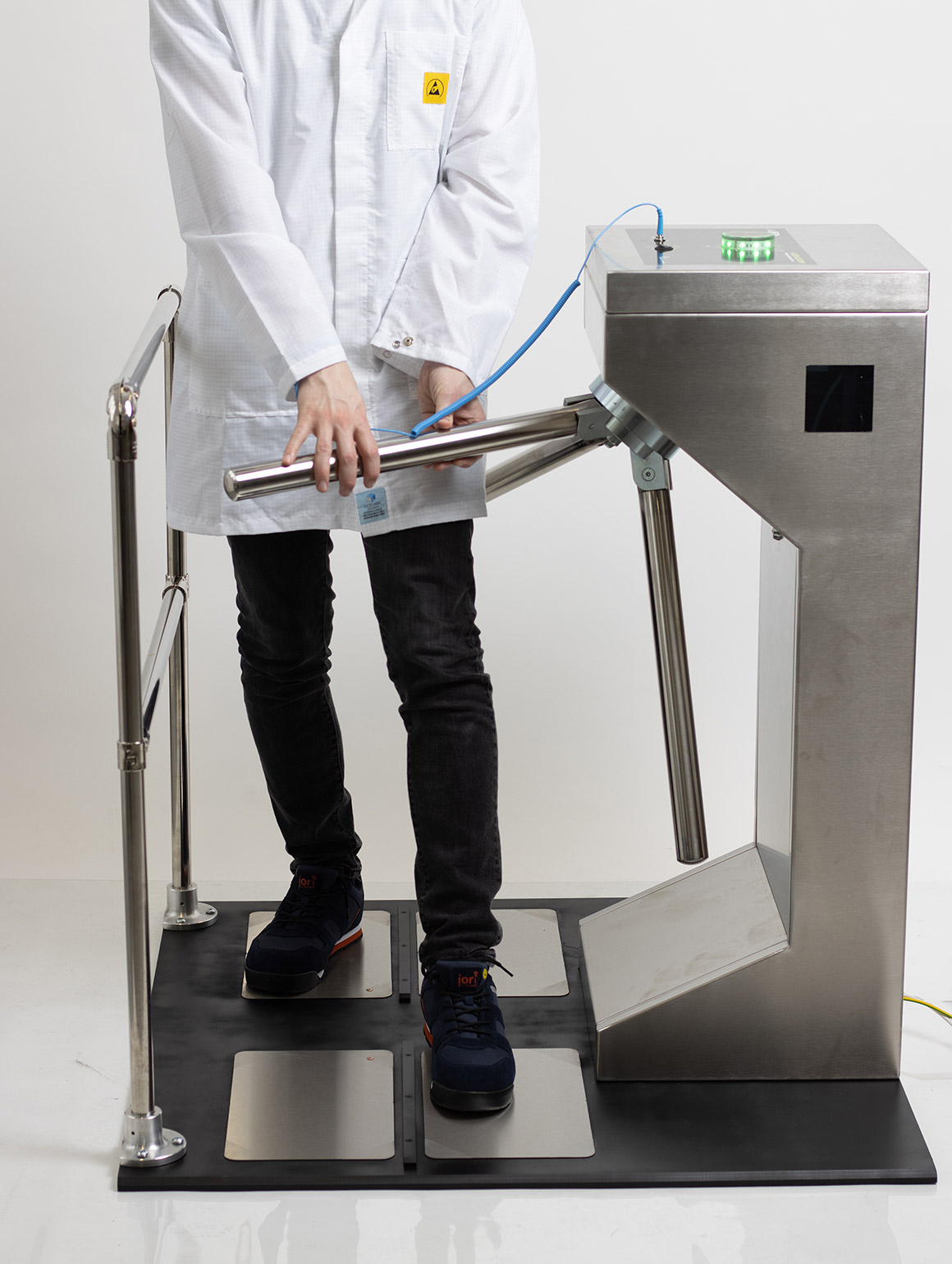

AIJGO-22/COMP Personal grounding tester with platform

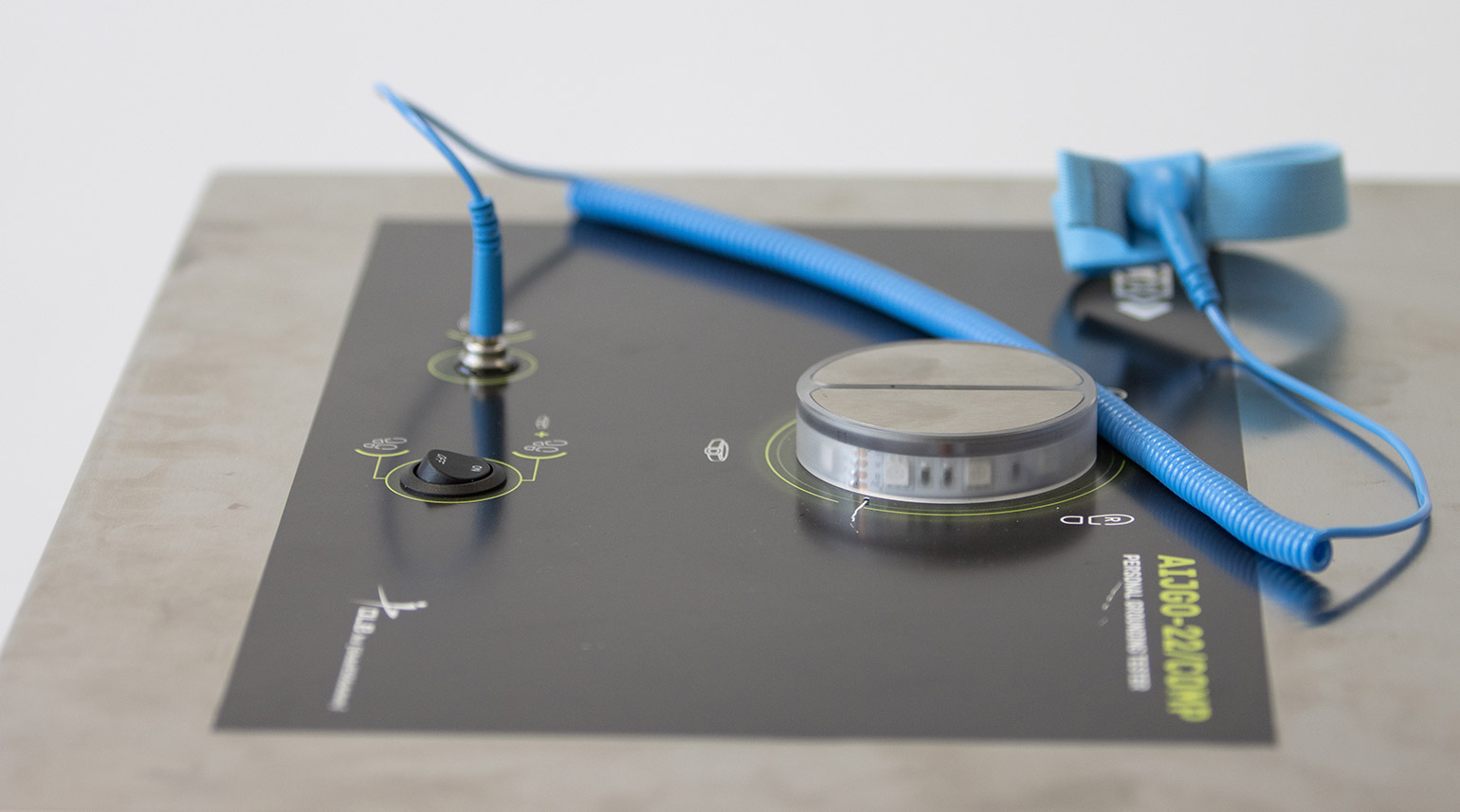

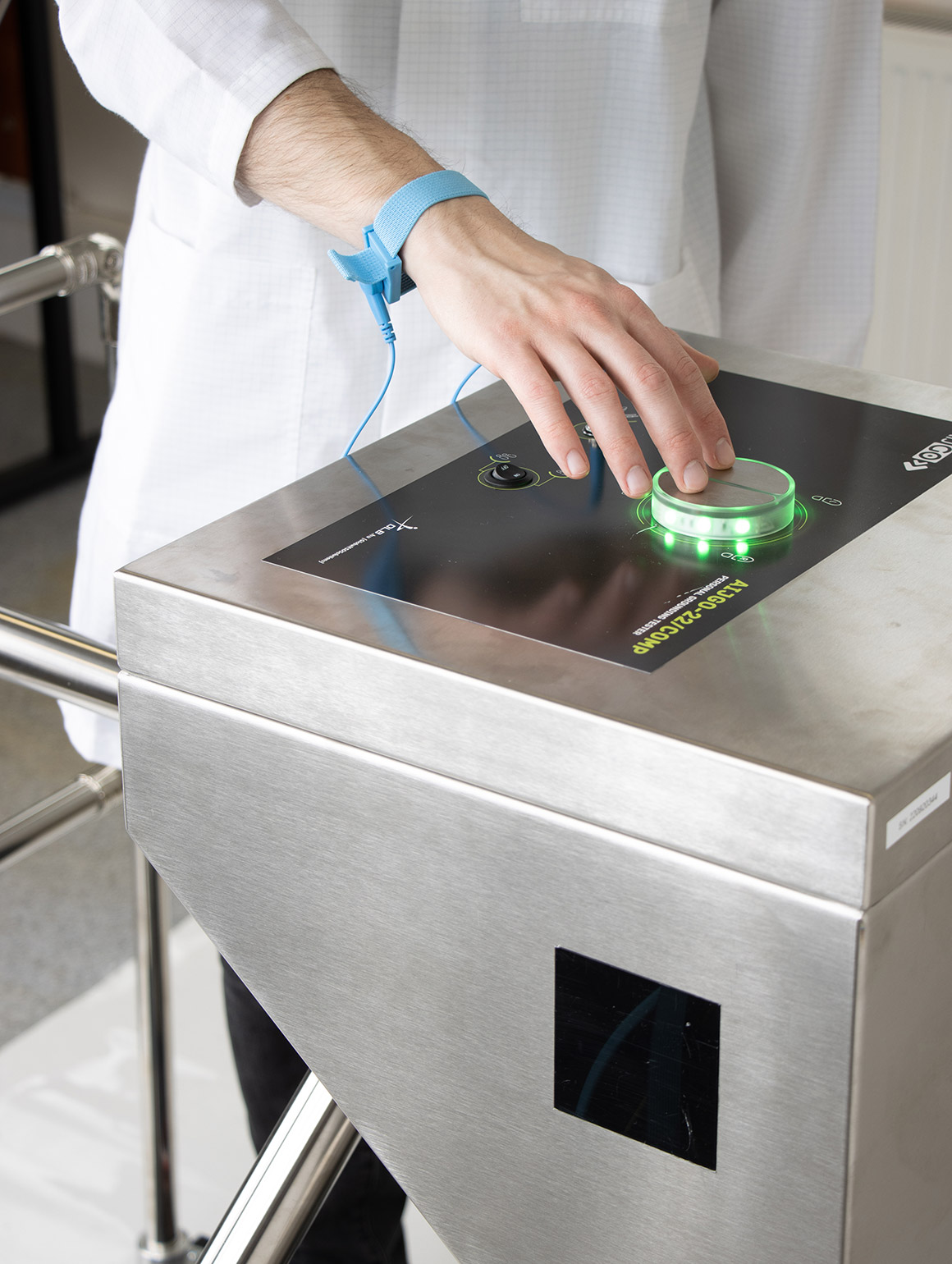

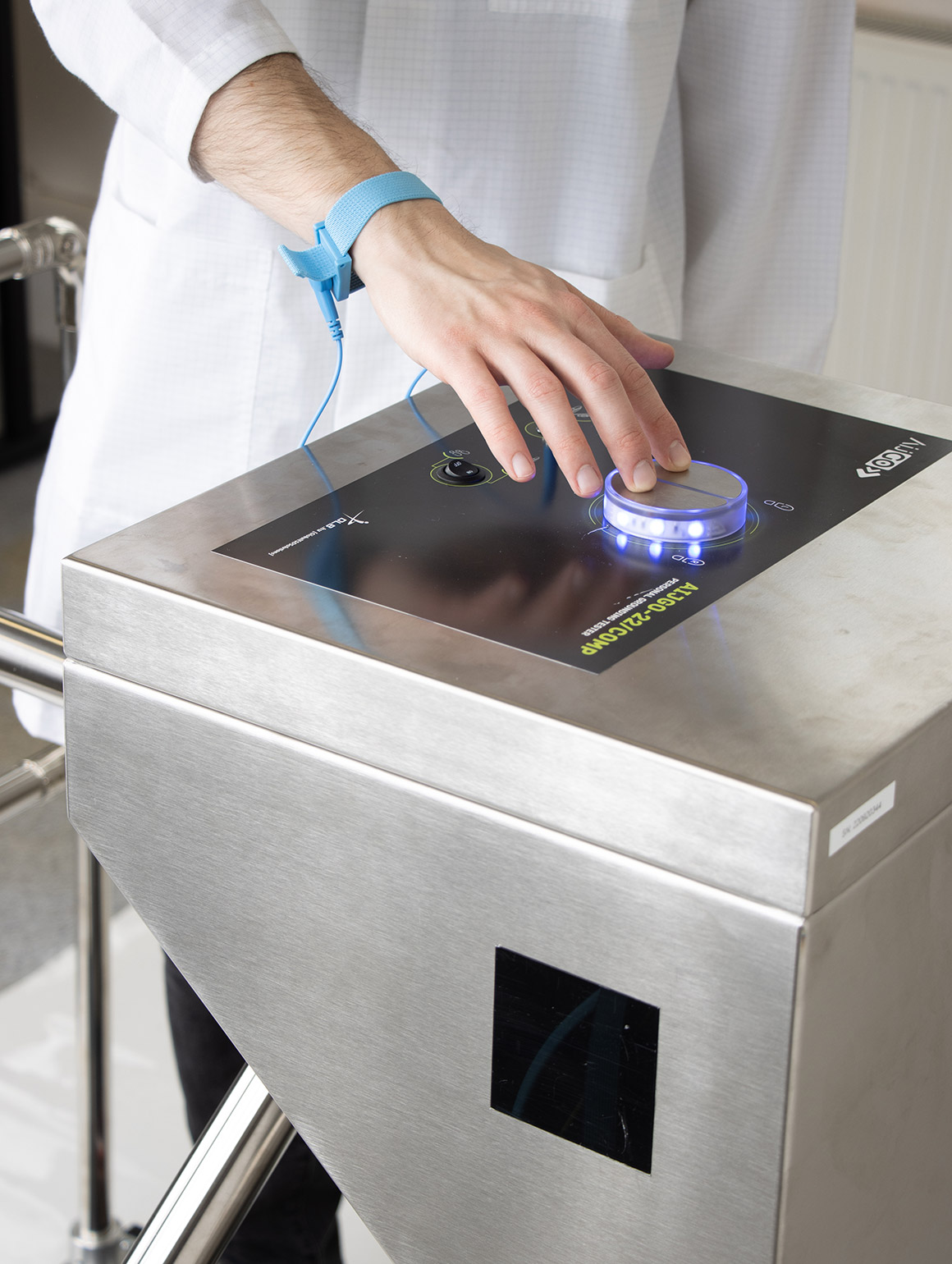

The AIJGO-22/COMP is an easy-to-use tester for checking personal grounding before entering an ESD protected area (EPA). High load-bearing construction, it may be a good choice if speed and security are important factors due to the large number of entrances. Tester with LIGHT BAR system – such AIJGO products have a steel touch button, the measured results are indicated by LED lights. COMPLEX type – these testers are supplied built-in in an entrance gate with turnstile.

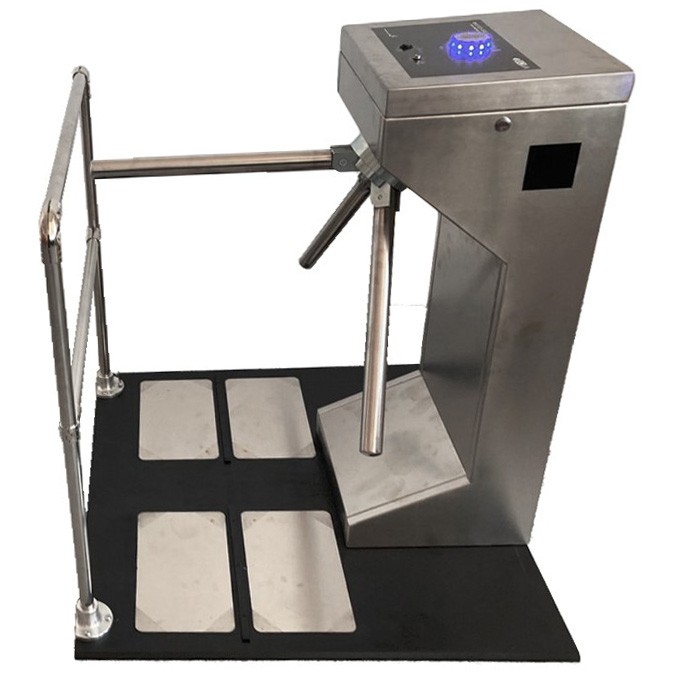

The tester is supplied with manufacturer’s certificate, platform, double dual foot electrode,and entrance gate with turnstile.
AIJGO-22/COMP PERSONAL GROUNDING TESTER
WITH PLATFORM, DOUBLE DUAL FOOT ELECTRODE AND ENTRANCE GATE WITH TURNSTILE
| ABOUT THE PRODUCT |
- Tester for checking personal grounding before entering an ESD protected area (EPA)
- Testing footwear system and wrist strap/groundable ESD smock system at the same time
- Can be used to test a groundable ESD smock system
Test result indication with LED light and sound
-
Selectable test modes: Footwear sytem test only, or footwear system and wrist strap/groundable ESD smock system combined test
- For indoor use only
The AIJGO-22/COMP is an easy-to-use tester for checking personal grounding before entering an ESD protected area (EPA). High load-bearing construction, it may be a good choice if speed and security are important factors due to the large number of entrances. Tester with LIGHT BAR system – such AIJGO products have a steel touch button, the measured results are indicated by LED lights. COMPLEX type – these testers are supplied built-in in an entrance gate with turnstile.
The type of test can be changed according to the entrance regulations: only footwear system test or the combined test of the footwear system and wrist strap/groundable ESD smock system.
Thanks to the dual foot electrode, the tester simultaneously measures the resistance of the right and left foot relative to the hand. In the event of a power disconnection, the gate automatically drops down its turnstile to allow free passage.
The tester is supplied with manufacturer’s certificate, platform, double dual foot electrode,and entrance gate with turnstile.
CE declaration
We declare that the AIJGO-22/COMP product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).
Warning
The device can deliver an effective output power of up to 20 µA or less at a maximum voltage of 100 V for 2-4 seconds at 0,5 second cycles. Therefore, persons with an implanted electronic device (e.g. insulin pump, pacemaker, etc.), known or acute hear rhythm disorders and other disorders of the heart’s impulse generation and conduction, seizure disorders (e.g. epilepsy) should consult their doctor before using this device.
| TECHNICAL INFORMATIONS |
Resistance values indicated as acceptable by the tester
| Default setting when measuring footwear system | 100 KΩ – 100 MΩ An upper value of 35 MΩ can also be set by removing the short-circuiting of the TH2 pair of the tester. To do this, remove the short circuit (jumper) from the two points of the TH2 pin pair of the tester, or leave it on only one pin. |
| Default setting when measuring wrist strap/ groundable ESD smock system |
750 KΩ – 35 MΩ |
| Test voltage | 100V DC |
| Wrist strap/groundable ESD smock system connection | With a combined 10 mm snap, 4 mm banana plug socket |
| Power supply | 230 V AC |

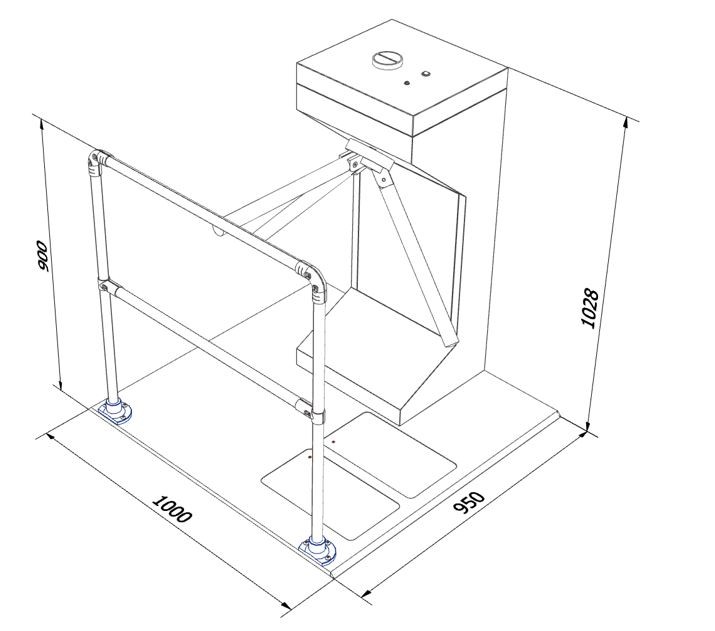

| Sizes | 1000 x 950 x 1049,5 mm with platform and touch button |
Gate properties
- Manual rotation with mechanical assistance (rotary motor)
- Rotation can be blocked electronically
- Automatic turnstile drop down in the event of power disconnection
- Connectable to a fire alarm system, it can be set to drop down the turnstile after a signal from the system, allowing free passage through the gate.
- For indoor use only
| REQUEST FOR QUOTATION |
| ORDER CODE | TYPE | |
|---|---|---|
| AIJGO-22/COMP | Personal grounding tester with platform, double dual foot electrode and entrance gate with turnstile | {AIJGO-22/COMP} |

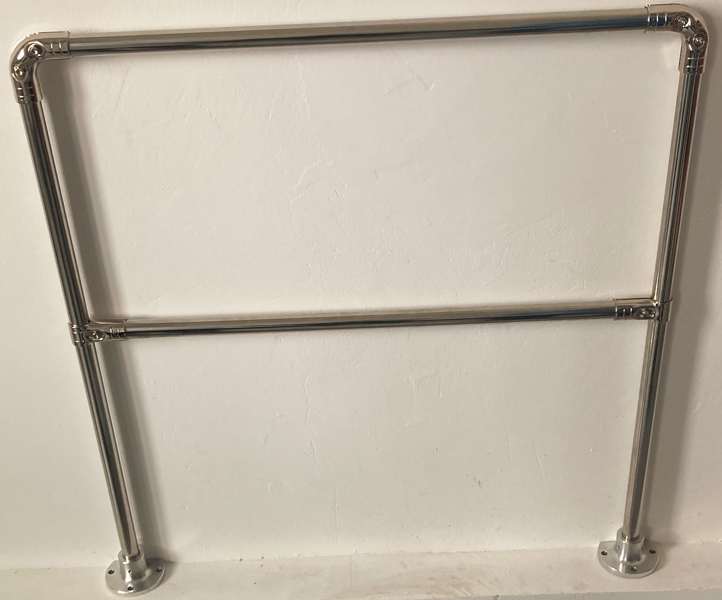

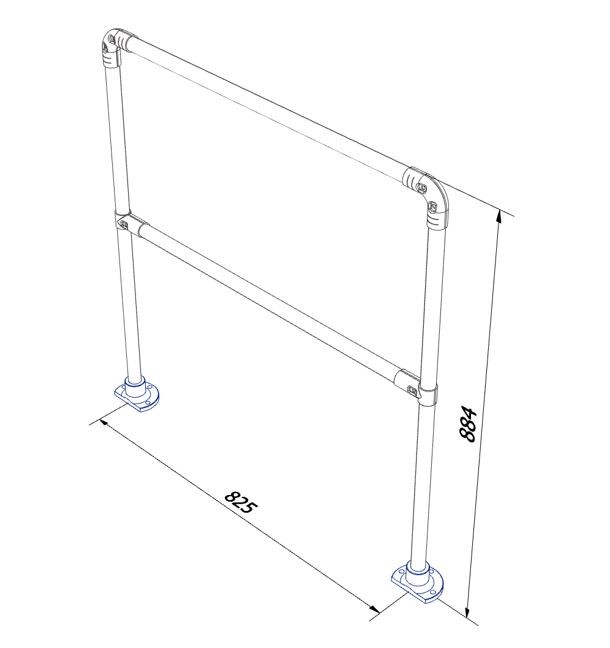

| AIJGO-BAR1 | Barrier for AIJGO-22/COMP or AIJGO-34/COMP tester | {AIJGO-BAR1} |
| AIJGO-OLED | Optional door opening touch button outwards | {AIJGO-OLED } |
