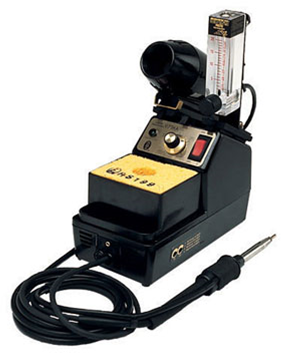

971DH-230
- Sokoldalú és kiváló teljesítmény forró levegővel (sűrített levegő vagy nitrogén szükséges hozzá, 20-80 psi)
- Adjustable airflow and automatic shut-off valve when hand piece is placed in holder
- Easy to maintain and calibrate with external calibration feature
- Uses a wide variety of nozzle sizes
- ESD Safe
- 18 month warranty
- lead free
| Contents | |
|---|---|
| 971HA | SMT hot air station includes LT428 tip |
| PD533 | Tool pod |
| PR570 | Flow regulator and meter |
| SH230 | Sponge holder includes RS199 cleaning sponge, RS243 leveling pad, LN230 sponge liner |
| Accessory Kit | |
|---|---|
| WT620 | Tip wrench, 1/4” socket |
| WT624 | Tip wrench, dual open end, 1/4” & 5/16” |
| ST706 | SMD tool to lift off SMD’s |
| RB641 | Shim blade replacement |
| WS630 | SMD pull wire with low static spool |
| AN112 | Anti-Seize compound |
| WP556 | WIGAPRY® mini screwdriver and calibration aid tool |
| Specifications | |
|---|---|
| Power Requirements | 230V, 50Hz |
| Power Rating | 18W - 160W |
| Heater Rating | 24V, 53W |
| Weight | 2,5 kg |
| Overall Dimensions | 104 mm x 246 mm x 254 mm |
| Temperature Range | 205°C - 427°C |
| Temperature Regulation | ±3ºC |
| Tip-to-Ground Voltage Leakage/Resistance | < 2mV / < 2 ohms |
| Order code | Type | Place an order |
|---|---|---|
| 971DH-230 | {971DH-230} |
